Simplex 4100+ Service Instructions

r‘
Shunt Jumper P7:
. To operate with 565-331 (except Rev. Bl) Master Display (5-Volt LCD): Plug jumper 166-l 57 onto pins 1 and 2.
l To operate with 565-l 73 and 565-331 (Rev. Bl) Master Displays (12-Volt LCD): Plug jumper 166-l 57 onto pins 2
and 3.
Connectors
Pl = Programmer Port.
l This port is an RS232 output. It has internal serial communications. This port is used to download the CFIG
software.
P4 = Master Controller Board Edge Card Connect.
l Connects to a 565-l 61 motherboard for power and comm connections, plus two external inputs.
P6 = Master Display Port.
l Connects to the master display board (optional) and drives the display board’s LCD, LEDs, and keypad.
P8 = Not Used.
U6 U7 U8 UlO Ull u14
U16
LED1
P7 P6
-U26
-P8
Pl-
P2-
/
Fl
P3
I
I
I
I
P4 P5

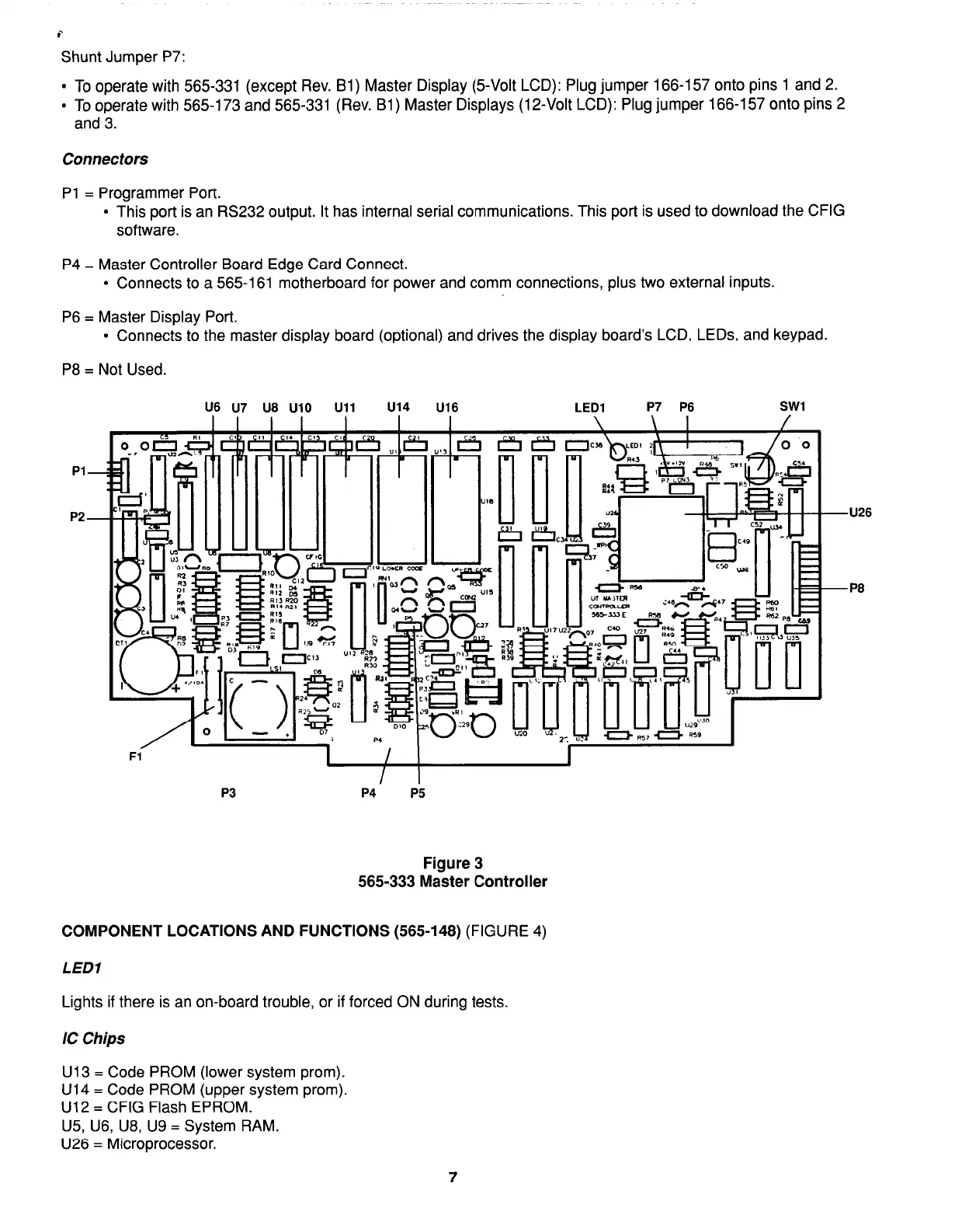

Figure 3
565-333 Master Controller
COMPONENT LOCATIONS AND FUNCTIONS (565-148) (FIGURE 4)
LED1
Lights if there is an on-board trouble, or if forced ON during tests.
IC Chips
U13 = Code PROM (lower system prom).
U14 = Code PROM (upper system prom).
U12 = CFIG Flash EPROM.
U5, U6, U8, U9 = System RAM.
U26 = Microprocessor.
7
firealarmresources.com

Simplex 4100+ Specifications

General

Type	Addressable Fire Alarm Control Panel
SLC Loops	Up to 10
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	10% to 93% non-condensing
Display	LCD
Communication	Ethernet
Power Supply	120/240 VAC, 50/60 Hz
Battery Backup	24 VDC
NAC Outputs	Expandable
Releasing Capability	Yes, with releasing modules
Max Notification Appliance Circuits (NACs)	Varies by modules
Max Releasing Circuits	10
Communication Ports	Ethernet
Max Devices	3, 000
