Simplex 4100+ Service Instructions

MAPNET@ POWER SUPPLY/MOTHERBOARD (562-974)
The 562-974 board (Figure 15) acts as a motherboard for a 562-976 MAPNET II@ Interface (Transceiver) board (with
standard 4100 power and communication signals), and provides isolated 36VDC power to drive MAPNET@ lines.
JW2
Jl J2 JWl
I
0 ”
0
I :
[--
l +
.
\
TBl
/
P2
I
Pl
\ I I
P3 R2 P4

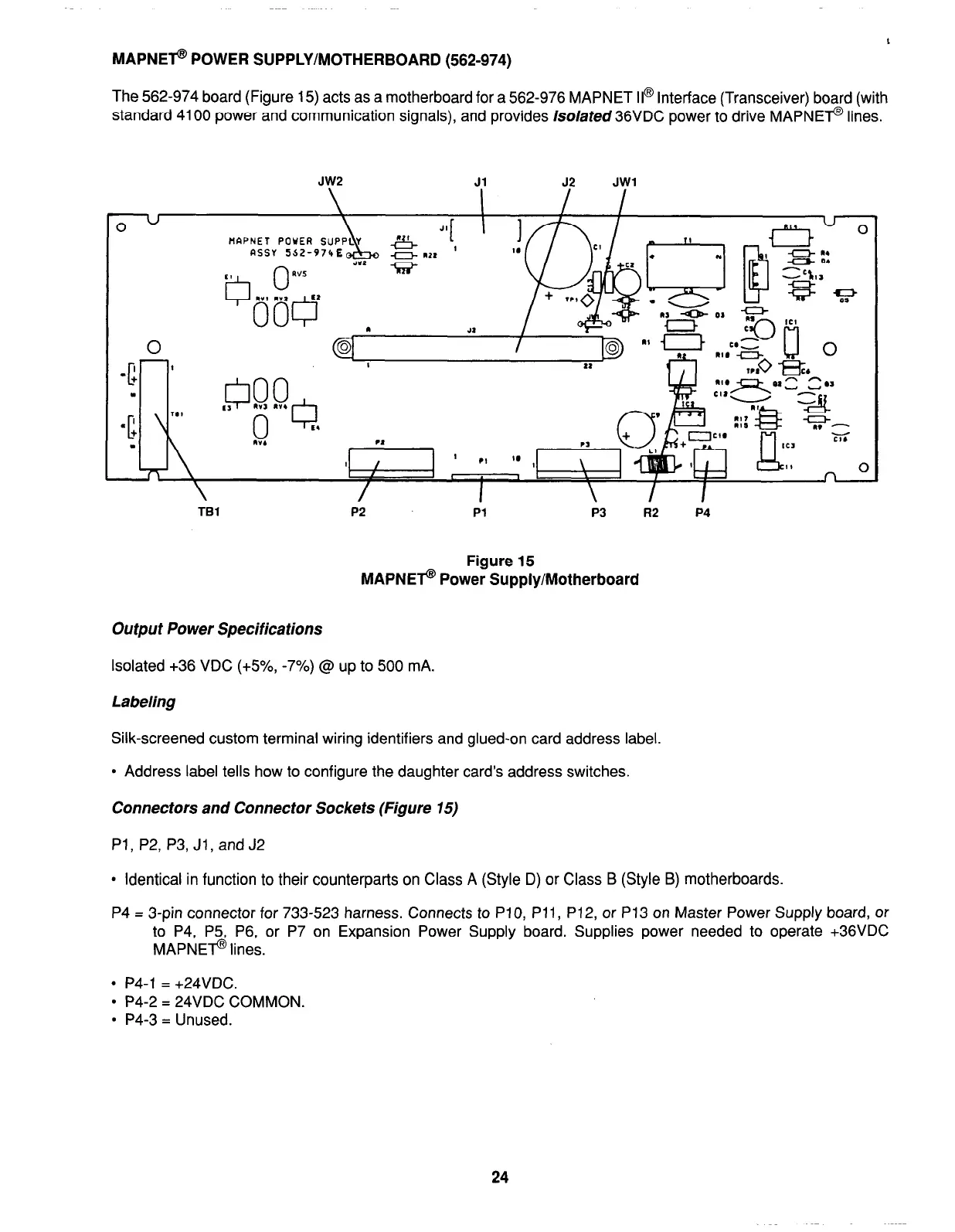

Figure 15
MAPNET@ Power Supply/Motherboard
Output Power Specifications
Isolated +36 VDC (+5%, -7%) @ up to 500 mA.
Labeling
Silk-screened custom terminal wiring identifiers and glued-on card address label.
l Address label tells how to configure the daughter card’s address switches.
Connectors and Connector Sockets (Figure 15)
Pl, P2, P3, Jl, and J2
l Identical in function to their counterparts on Class A (Style D) or Class B (Style B) motherboards.
P4 = 3-pin connector for 733-523 harness. Connects to PlO, Pli, P12, or P13 on Master Power Supply board, or
to P4, P5, P6, or P7 on Expansion Power Supply board. Supplies power needed to operate +36VDC
MAPNET@ lines.
l P4-1 = +24VDC.
l P4-2 = 24VDC COMMON.
l P4-3 = Unused.
24
firealarmresources.com

Simplex 4100+ Specifications

General

Type	Addressable Fire Alarm Control Panel
SLC Loops	Up to 10
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	10% to 93% non-condensing
Display	LCD
Communication	Ethernet
Power Supply	120/240 VAC, 50/60 Hz
Battery Backup	24 VDC
NAC Outputs	Expandable
Releasing Capability	Yes, with releasing modules
Max Notification Appliance Circuits (NACs)	Varies by modules
Max Releasing Circuits	10
Communication Ports	Ethernet
Max Devices	3, 000
