Simplex 4100+ Service Instructions

1
NOTE 3: When replacing a defective motherboard, affix an address label to the replacement board that matches
the label on the original board.
LED1
SW1
JWl,2,3and4
I
Pl

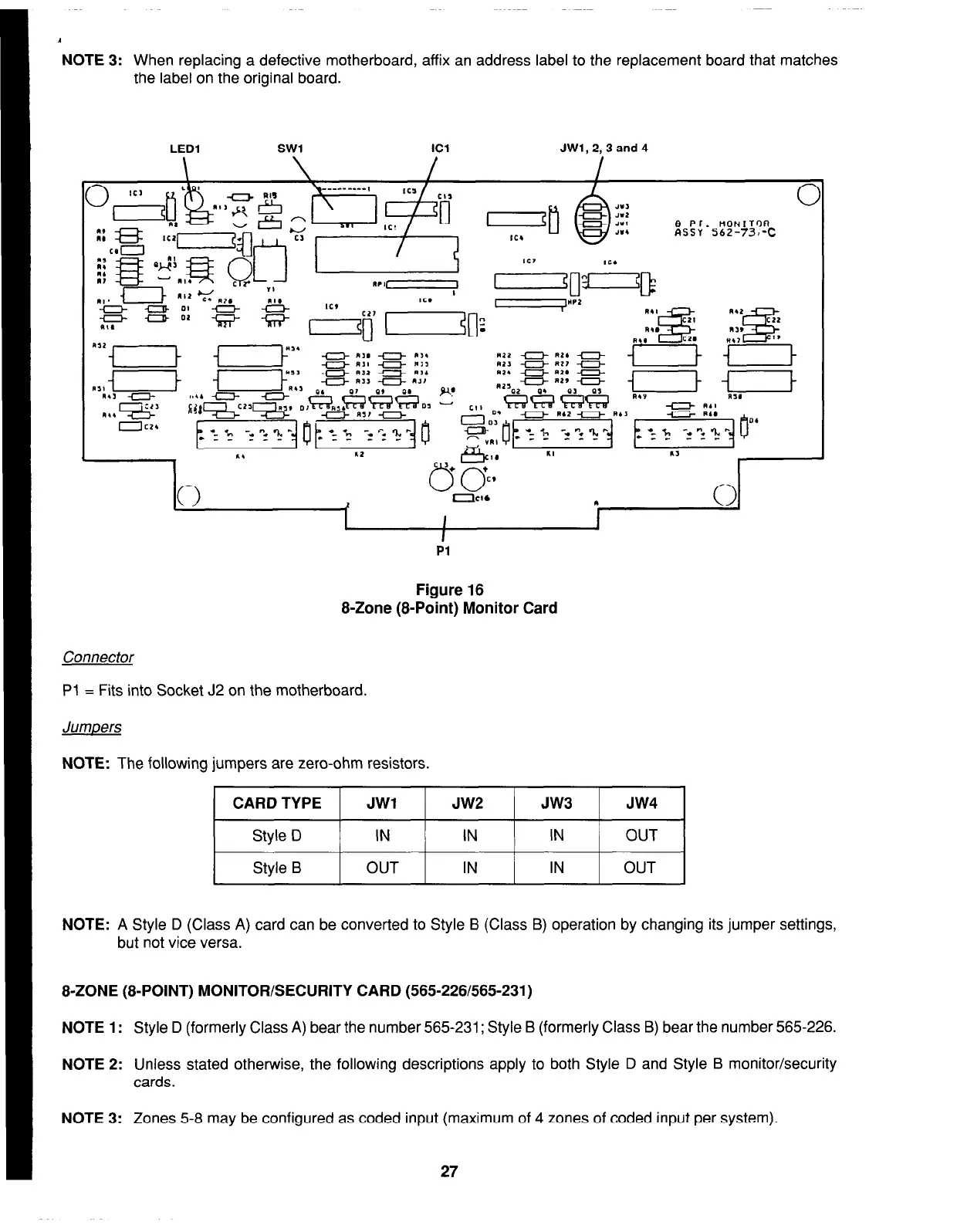

Figure 16
8-Zone (8-Point) Monitor Card
Connector
Pl = Fits into Socket J2 on the motherboard.
NOTE: The following jumpers are zero-ohm resistors.
( CARDTYPE 1 JWl 1 JW2 / JW3 1 JW4 1
Style D
Style B
IN
IN
IN OUT
OUT
IN
IN OUT
NOTE: A Style D (Class A) card can be converted to Style B (Class B) operation by changing its jumper settings,
but not vice versa.
8-ZONE (&POINT) MONITOR/SECURITY CARD (565-226565-231)
NOTE 1: Style D (formerly Class A) bear the number 565231; Style B (formerly Class B) bear the number 565226.
NOTE 2: Unless stated otherwise, the following descriptions apply to both Style D and Style B monitor/security
cards.
NOTE 3: Zones 5-8 may be configured as coded input (maximum of 4 zones of coded input per system).
27
