Simplex 4100+ Service Instructions

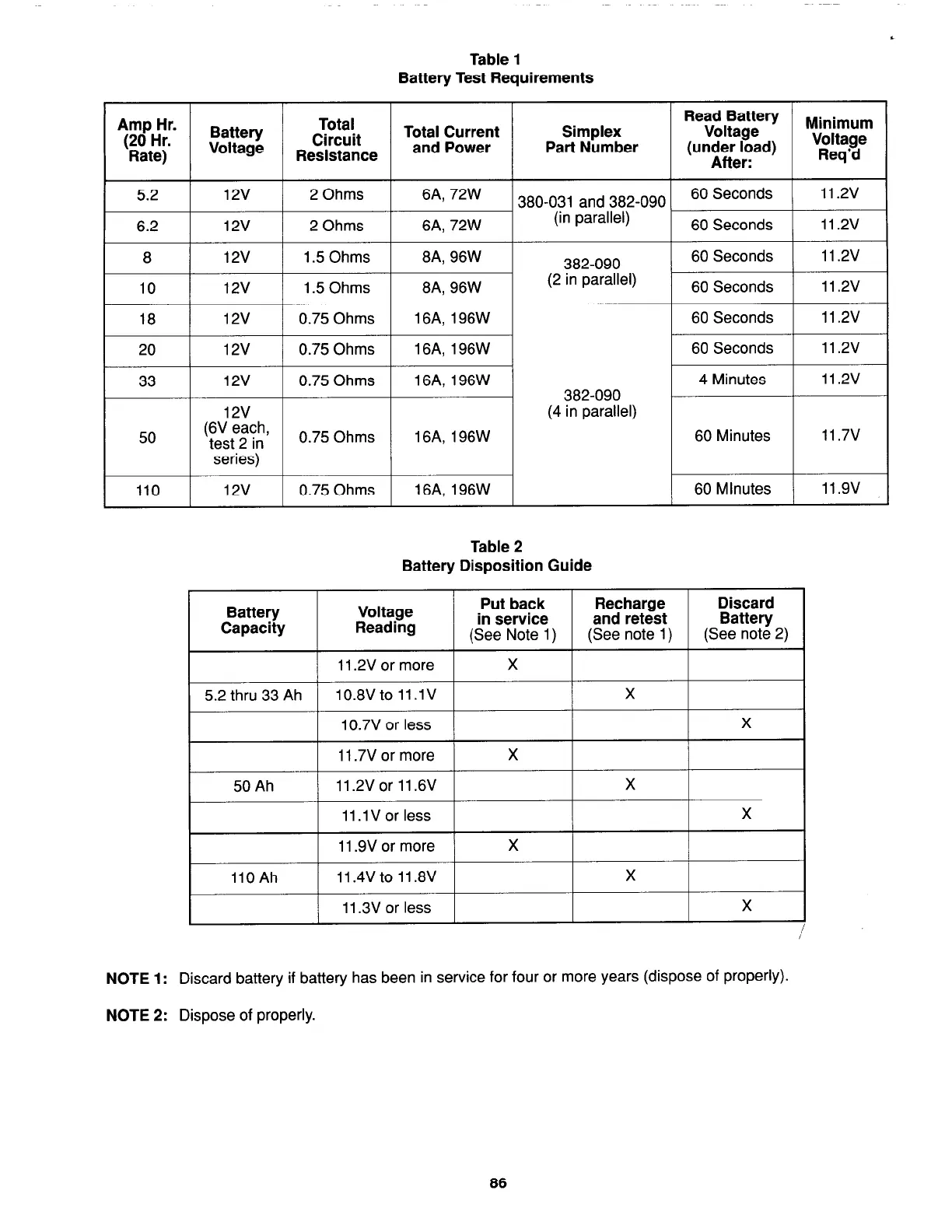

Table 1
Battery Test Requirements
Amp Hr. Total
Read Battery
Battery
Total Current
Simplex Voltage
Minimum
%ii
Voltage
Circuit
and Power
Part Number (unF;;yd)
Voltage
Resistance
. Req’d
.
5.2 12v 2 Ohms 6A, 72W
380-031 and 382-090
60 Seconds 11.2v
6.2 12v 2 Ohms 6A, 72W (in parallel) 60 Seconds 11.2v
8 12v 1.5 Ohms 8A, 96W
382-090
60 Seconds 11.2v
10
12v
1.5 Ohms 8A, 96W
(2 in parallel)
60 Seconds
11.2v
18 12v 0.75 Ohms 16A, 196W 60 Seconds 11.2v
20 12v 0.75 Ohms 16A, 196W 60 Seconds 11.2v
33 12v 0.75 Ohms 16A, 196W 4 Minutes 11.2v
382-090
12v
(4 in parallel)
50 (;eI;;y;, 0.75 Ohms 16A, 196W 60 Minutes 11.7v
series)
110 12v 0.75 Ohms 16A, 196W 60 Mlnutes 11.9v
Table 2
Battery Disposition Guide
Battery
Capacity
Voltage
Reading
/ 11.2Vormore 1
5.2thru33Ah / 10.8Vto ll.lV I
10.7V or less
I 11.7Vormore /
50 Ah
/ 11.2Vor11.6V I
ll.lV or less
1 11.9Vor more /
X
I I I
110 Ah
1 11.4Vto 11.8V 1
11.3V or less
NOTE 1: Discard battery if battery has been in service for four or more years (dispose of properly).
NOTE 2: Dispose of properly.
86
firealarmresources.com

Simplex 4100+ Specifications

General

Type	Addressable Fire Alarm Control Panel
SLC Loops	Up to 10
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	10% to 93% non-condensing
Display	LCD
Communication	Ethernet
Power Supply	120/240 VAC, 50/60 Hz
Battery Backup	24 VDC
NAC Outputs	Expandable
Releasing Capability	Yes, with releasing modules
Max Notification Appliance Circuits (NACs)	Varies by modules
Max Releasing Circuits	10
Communication Ports	Ethernet
Max Devices	3, 000
