Simplex 4100+ Service Instructions

P5 = PMSI Interface
P8 = Audio Control Interface
P9 = Switcher Interface
Pll = Current-Limit Resistor 2 for the “C Tap” charger output
P12 = Current-Limit Resistor 1 for the “B Tap” charger output
P14 = “A Tap” / 8-Volt Output
P15 = “B Tap” Output
P17 = “C Tap” Output
Terminal Blocks
TBl = Option Interface
TB2 = Output Connections
TB2-1 =OV
TB2-2 =OV
TB2-3 =“C Tap” Output
TB2-4 =“C Tap” Output
TB2-5 =OV
TB2-6 =OV
TB2-7 =“B Tap” Output
TB2-8 =“B Tap” Output
TB2-9 =OV
TB2-10 =OV
TB2-11 =“A Tap” Output
TB2-12 =“A Tap” Output
P2 (“B” TAP RTN
P3 (“C” TAP RTN

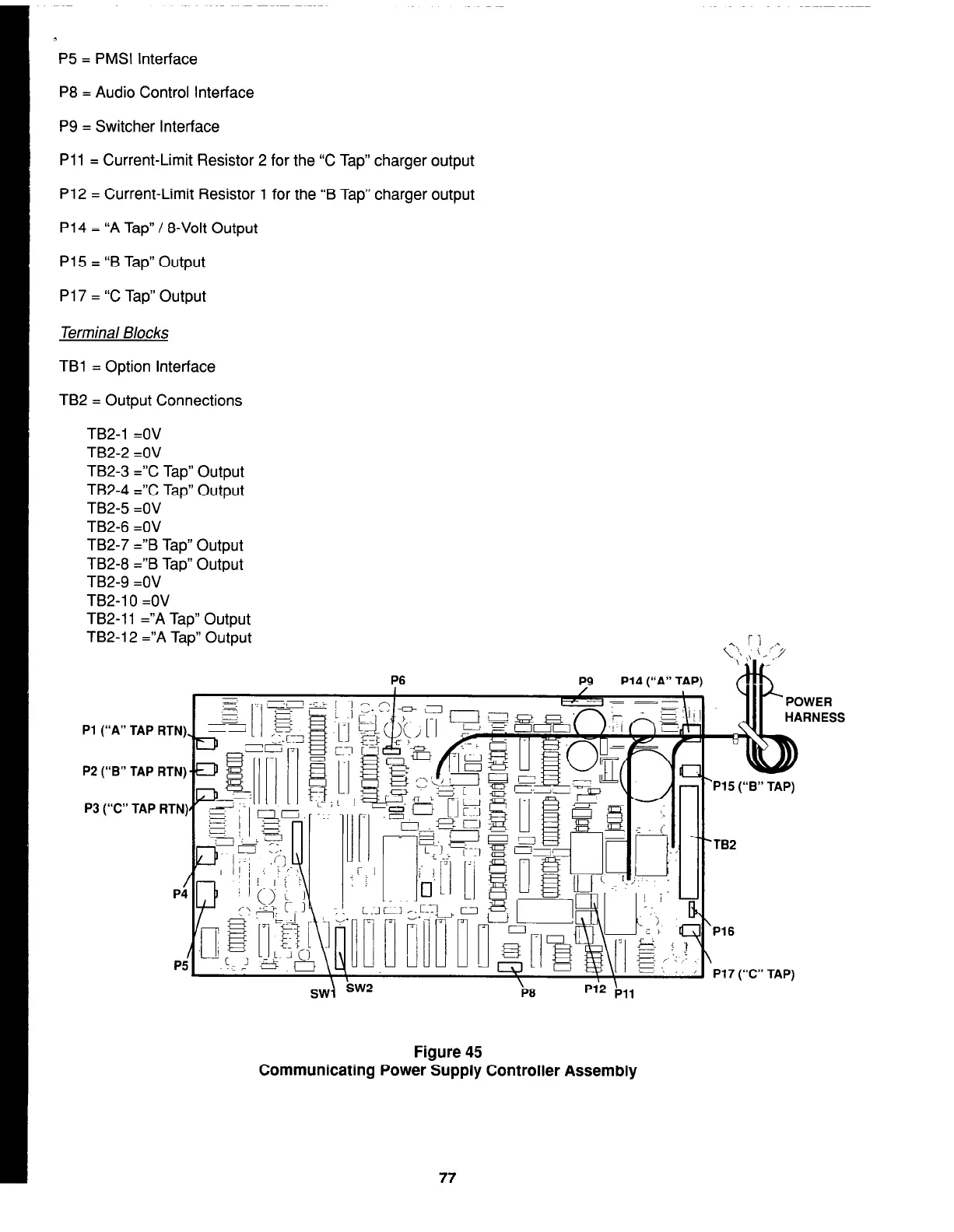

Figure 45
Communicating Power Supply Controller Assembly
77
P16
firealarmresources.com

Simplex 4100+ Specifications

General

Type	Addressable Fire Alarm Control Panel
SLC Loops	Up to 10
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	10% to 93% non-condensing
Display	LCD
Communication	Ethernet
Power Supply	120/240 VAC, 50/60 Hz
Battery Backup	24 VDC
NAC Outputs	Expandable
Releasing Capability	Yes, with releasing modules
Max Notification Appliance Circuits (NACs)	Varies by modules
Max Releasing Circuits	10
Communication Ports	Ethernet
Max Devices	3, 000
