Simplex 4100+ Service Instructions

TBl
JllJ2
LED1
J9/JlO
J7lJ8
TB2
/
I I
I I 1
I
I I
I
I I
P4
P5 P6 P3 Pl P2
J5/J6 J3lJ4
F4 Fl
F2 F3

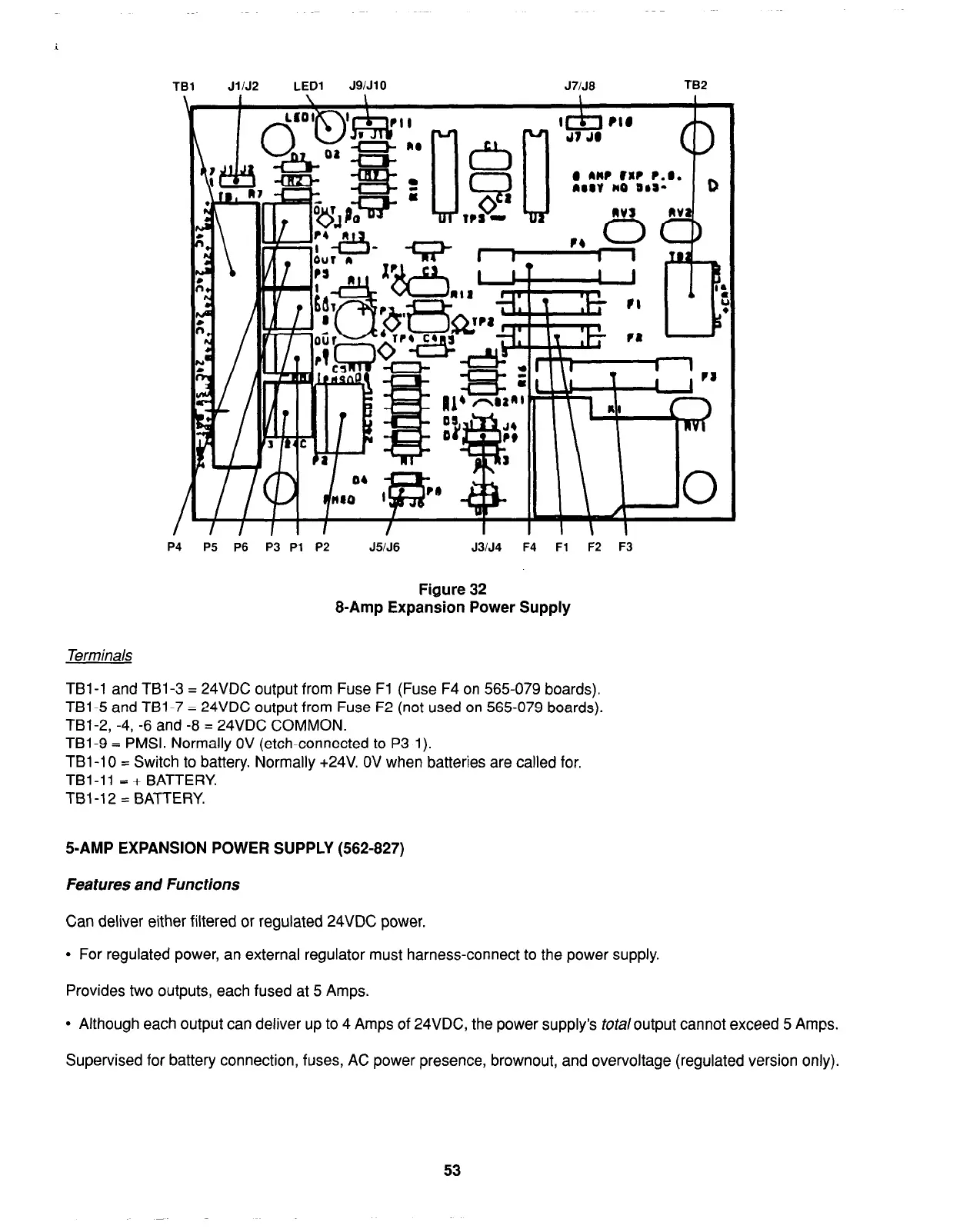

Figure 32
8-Amp Expansion Power Supply
Terminals
TBl-1 and TBl-3 = 24VDC output from Fuse Fl (Fuse F4 on 565-079 boards).
TBl-5 and TBl-7 = 24VDC output from Fuse F2 (not used on 565-079 boards).
TBl-2, -4, -6 and -8 = 24VDC COMMON.
TBl-9 = PMSI. Normally OV (etch-connected to P3-1).
TBl-10 = Switch to battery. Normally +24V. OV when batteries are called for.
TBl-11 = + BATTERY.
TBl-12 = BATTERY.
5-AMP EXPANSION POWER SUPPLY (562-827)
Features and Functions
Can deliver either filtered or regulated 24VDC power.
l For regulated power, an external regulator must harness-connect to the power supply.
Provides two outputs, each fused at 5 Amps.
l Although each output can deliver up to 4 Amps of 24VDC, the power supply’s totaloutput cannot exceed 5 Amps.
Supervised for battery connection, fuses, AC power presence, brownout, and overvoltage (regulated version only).
53
firealarmresources.com

Simplex 4100+ Specifications

General

Type	Addressable Fire Alarm Control Panel
SLC Loops	Up to 10
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	10% to 93% non-condensing
Display	LCD
Communication	Ethernet
Power Supply	120/240 VAC, 50/60 Hz
Battery Backup	24 VDC
NAC Outputs	Expandable
Releasing Capability	Yes, with releasing modules
Max Notification Appliance Circuits (NACs)	Varies by modules
Max Releasing Circuits	10
Communication Ports	Ethernet
Max Devices	3, 000
