Simplex 4100+ Service Instructions

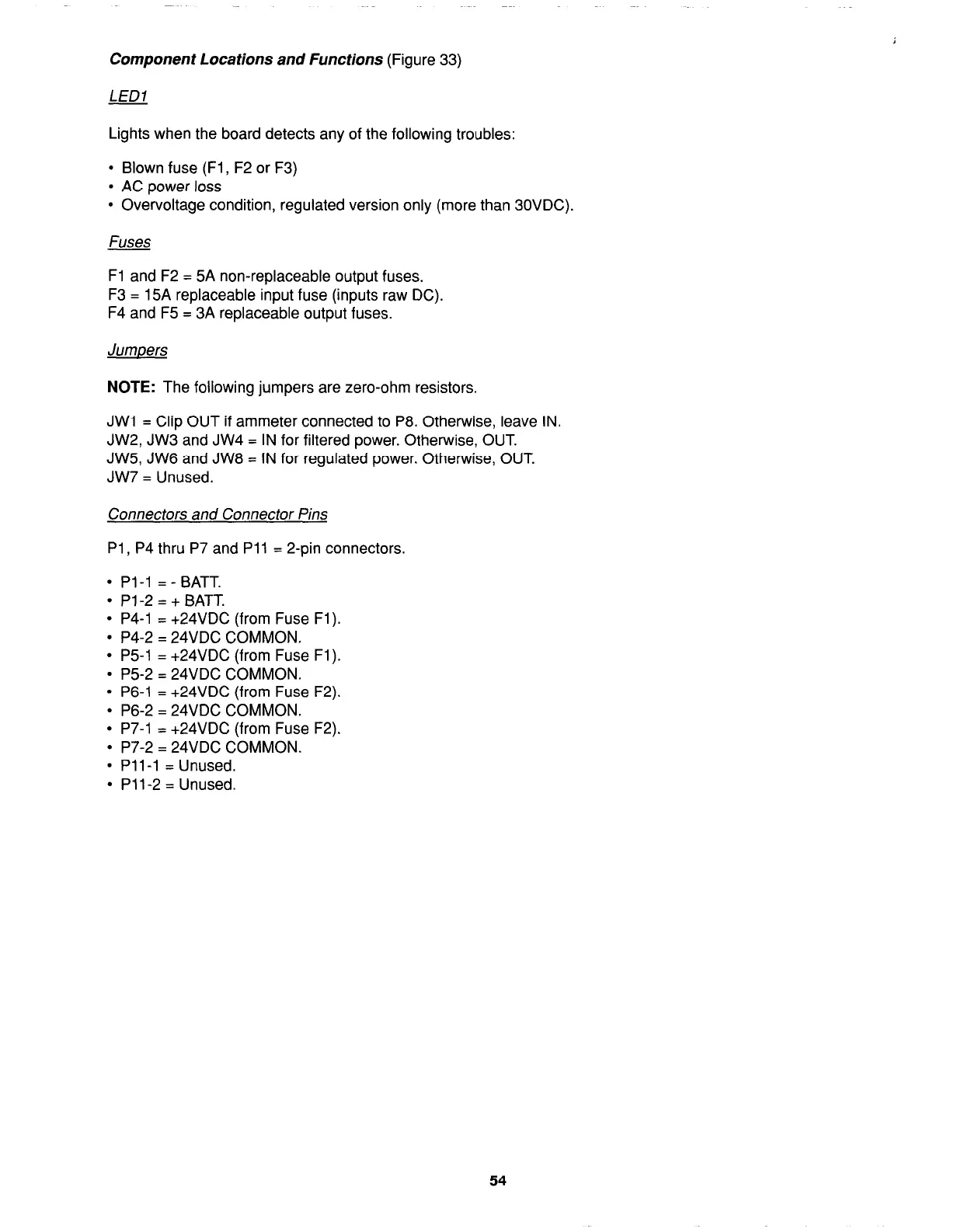

Component Locations and Functions (Figure 33)
LED1
Lights when the board detects any of the following troubles:
l Blown fuse (Fl , F2 or F3)
l AC power loss
l Overvoltage condition, regulated version only (more than 30VDC).
Fl and F2 = 5A non-replaceable output fuses.
F3 = 15A replaceable input fuse (inputs raw DC).
F4 and F5 = 3A replaceable output fuses.
Jumpers
NOTE: The following jumpers are zero-ohm resistors.
JWl = Clip OUT if ammeter connected to P8. Otherwise, leave IN.
JW2, JW3 and JW4 = IN for filtered power. Otherwise, OUT.
JW5, JW6 and JW8 = IN for regulated power. Otherwise, OUT
JW7 = Unused.
Connectors and Connector Pins
Pl, P4 thru P7 and Pll = 2-pin connectors.
l Pl-1 = - BATT.
l Pl-2=+BATT.
l P4-1 = +24VDC (from Fuse Fl).
l P4-2 = 24VDC COMMON.
l P5-1 = +24VDC (from Fuse Fl).
l P5-2 = 24VDC COMMON.
l P6-1 = +24VDC (from Fuse F2).
l P6-2 = 24VDC COMMON.
l P7-1 = +24VDC (from Fuse F2).
l P7-2 = 24VDC COMMON.
l Pll-1 = Unused.
l Pl l-2 = Unused.
54
firealarmresources.com

Simplex 4100+ Specifications

General

Type	Addressable Fire Alarm Control Panel
SLC Loops	Up to 10
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	10% to 93% non-condensing
Display	LCD
Communication	Ethernet
Power Supply	120/240 VAC, 50/60 Hz
Battery Backup	24 VDC
NAC Outputs	Expandable
Releasing Capability	Yes, with releasing modules
Max Notification Appliance Circuits (NACs)	Varies by modules
Max Releasing Circuits	10
Communication Ports	Ethernet
Max Devices	3, 000
