Simplex 4100+ Service Instructions

TB3 JW3.4.5&6 JW2 P3
P2 Pl P9 P8
PlO F2 P6 P7 TBl
F3
LED1
JW8 JWl Fl F4 Pll F5 P4
P5 TB2

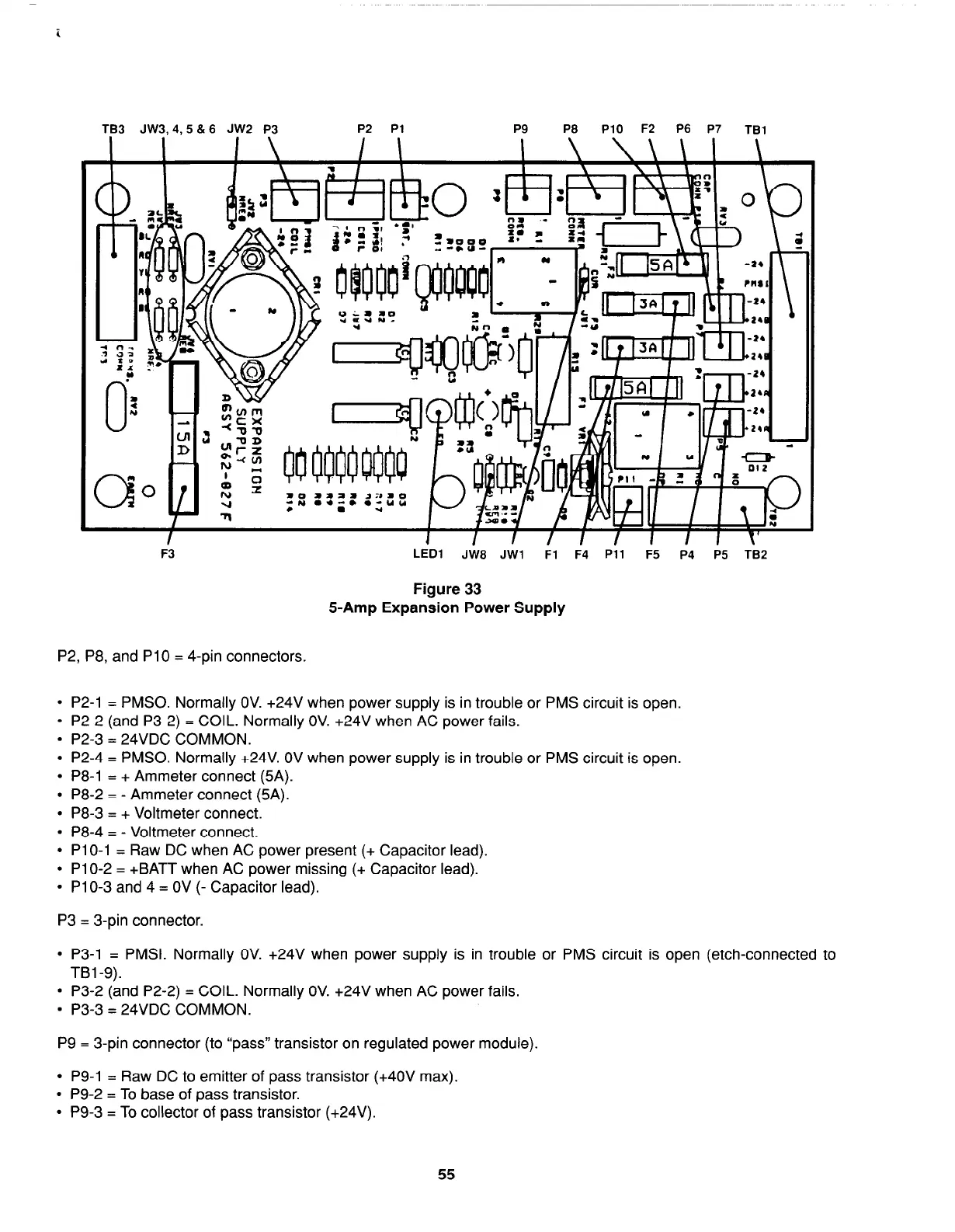

Figure 33
5-Amp Expansion Power Supply
P2, P8, and PlO = 4-pin connectors.
l P2-1 = PMSO. Normally OV. +24V when power supply is in trouble or PMS circuit is open.
l P2-2 (and P3-2) = COIL. Normally OV. +24V when AC power fails.
l P2-3 = 24VDC COMMON.
l P2-4 = PMSO. Normally +24V. OV when power supply is in trouble or PMS circuit is open.
l P8-1 = + Ammeter connect (5A).
l P8-2 = - Ammeter connect (5A).
l P8-3 = + Voltmeter connect.
l P8-4 = - Voltmeter connect.
l Pl O-l = Raw DC when AC power present (+ Capacitor lead).
l Pl O-2 = +BATT when AC power missing (+ Capacitor lead).
l Pl O-3 and 4 = OV (- Capacitor lead).
P3 = 3-pin connector.
l P3-1 = PMSI. Normally OV. +24V when power supply is in trouble or PMS circuit is open (etch-connected to
TBl-9).
l P3-2 (and P2-2) = COIL. Normally OV. +24V when AC power fails.
l P3-3 = 24VDC COMMON.
P9 = 3-pin connector (to “pass” transistor on regulated power module).
l P9-1 = Raw DC to emitter of pass transistor (+4OV max).
l P9-2 = To base of pass transistor.
l P9-3 = To collector of pass transistor (+24V).
55
firealarmresources.com

Simplex 4100+ Specifications

General

Type	Addressable Fire Alarm Control Panel
SLC Loops	Up to 10
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	10% to 93% non-condensing
Display	LCD
Communication	Ethernet
Power Supply	120/240 VAC, 50/60 Hz
Battery Backup	24 VDC
NAC Outputs	Expandable
Releasing Capability	Yes, with releasing modules
Max Notification Appliance Circuits (NACs)	Varies by modules
Max Releasing Circuits	10
Communication Ports	Ethernet
Max Devices	3, 000
