Simplex 4100+ Service Instructions

i
LED1
Jl JW6/JW7 u17
SW1
I
Pl

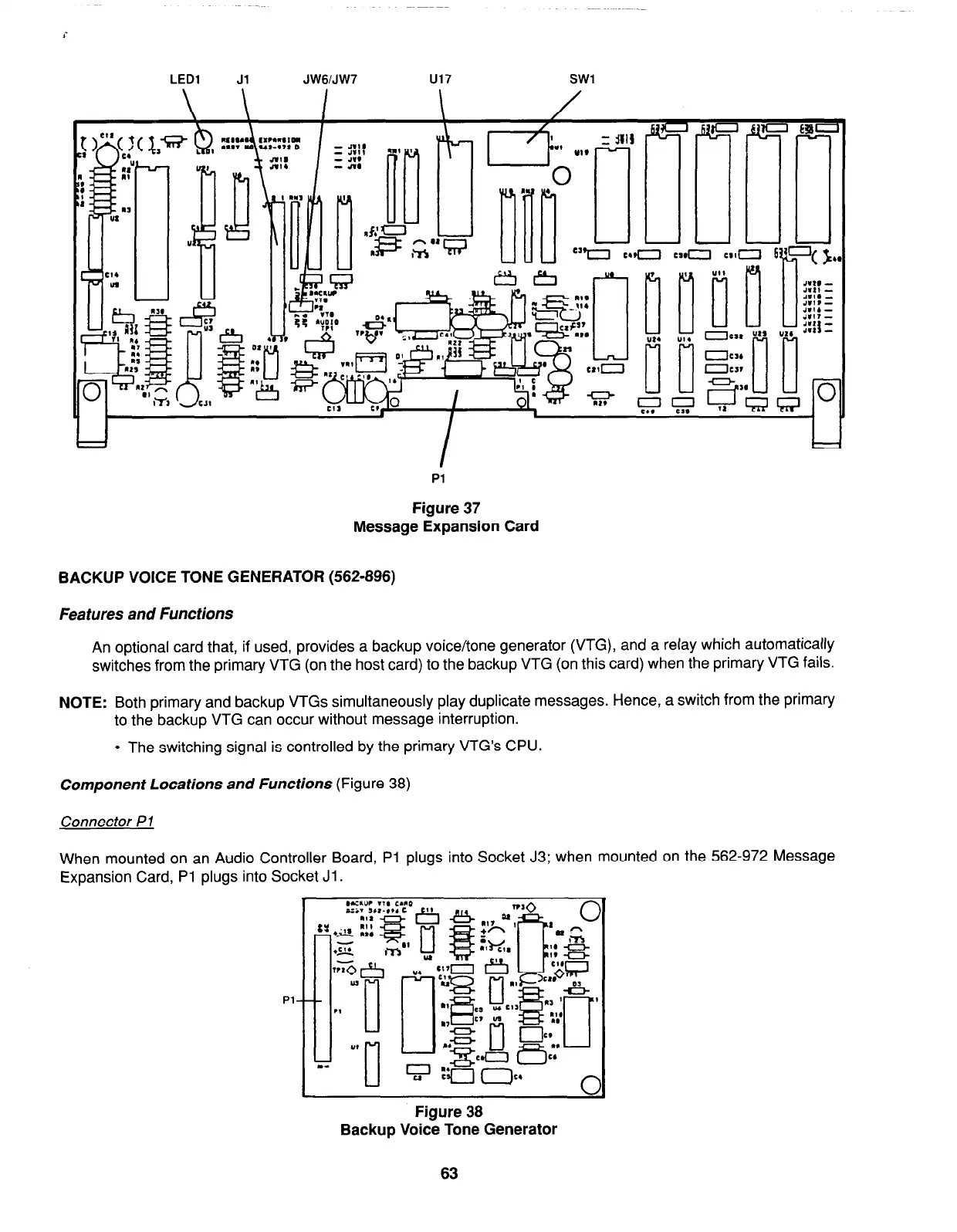

Figure 37
Message Expansion Card
BACKUP VOICE TONE GENERATOR (562-896)
Features and Functions
An optional card that, if used, provides a backup voice/tone generator (VTG), and a relay which automatically
switches from the primary VTG (on the host card) to the backup VTG (on this card) when the primary VTG fails.
NOTE: Both primary and backup VTGs simultaneously play duplicate messages. Hence, a switch from the primary
to the backup VTG can occur without message interruption.
l The switching signal is controlled by the primary VTG’s CPU.
Component Locations and Functions (Figure 38)
Connector P 1
When mounted on an Audio Controller Board, Pl plugs into Socket J3; when mounted on the 562-972 Message
Expansion Card, Pl plugs into Socket Jl .
Figure 38
Backup Voice Tone Generator
63
firealarmresources.com

Simplex 4100+ Specifications

General

Type	Addressable Fire Alarm Control Panel
SLC Loops	Up to 10
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	10% to 93% non-condensing
Display	LCD
Communication	Ethernet
Power Supply	120/240 VAC, 50/60 Hz
Battery Backup	24 VDC
NAC Outputs	Expandable
Releasing Capability	Yes, with releasing modules
Max Notification Appliance Circuits (NACs)	Varies by modules
Max Releasing Circuits	10
Communication Ports	Ethernet
Max Devices	3, 000
