Simplex 4100+ Service Instructions

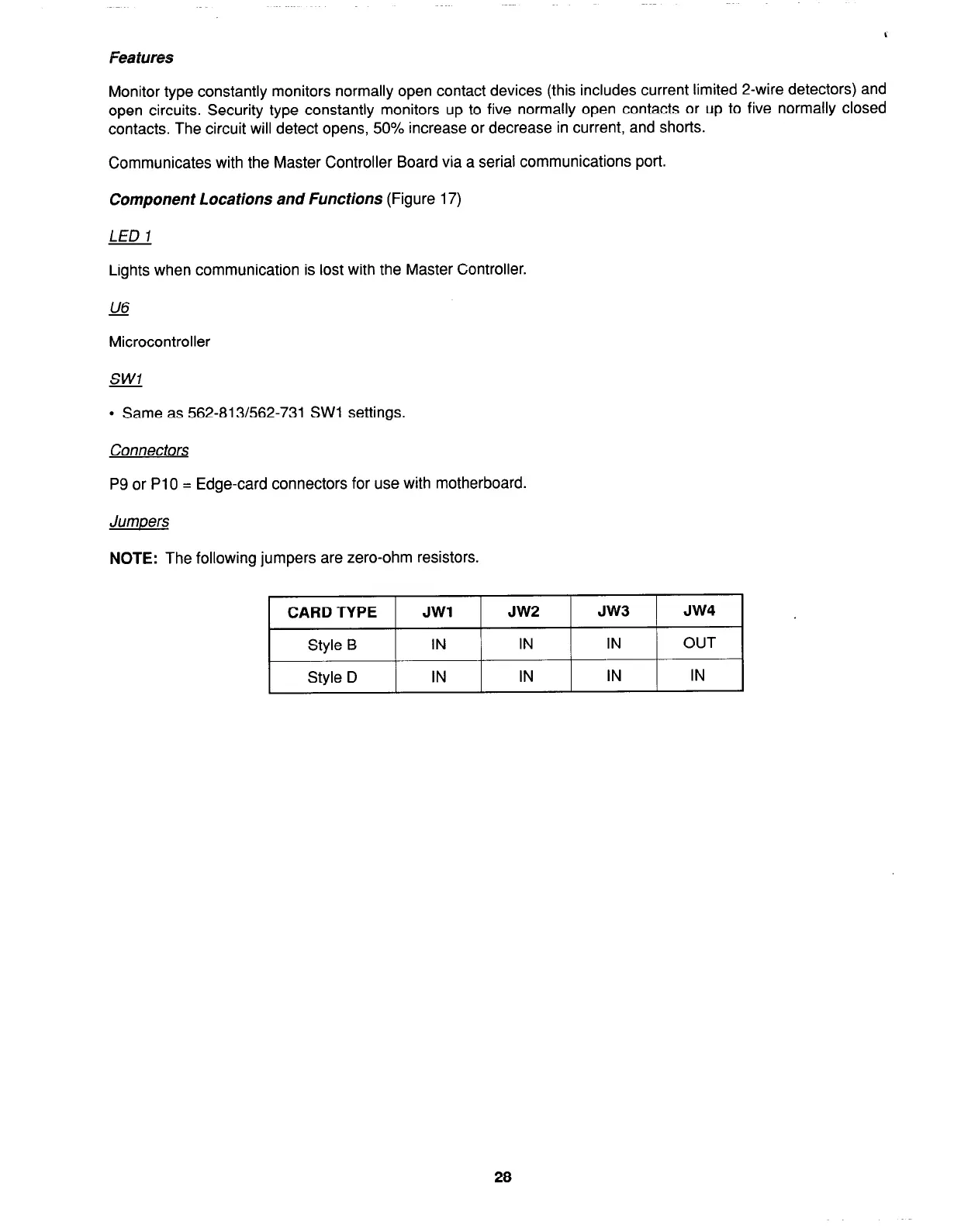

Features
,
Monitor type constantly monitors normally open contact devices (this includes current limited 2-wire detectors) and
open circuits. Security type constantly monitors up to five normally open contacts or up to five normally closed
contacts. The circuit will detect opens, 50% increase or decrease in current, and shorts.
Communicates with the Master Controller Board via a serial communications port.
Component Locations and Functions (Figure 17)
1 LED
Lights when communication is lost with the Master Controller.
Microcontroller
l Same as 562-813/562-731 SW1 settings.
Connectors
P9 or PlO = Edge-card connectors for use with motherboard.
Jumpers
NOTE: The following jumpers are zero-ohm resistors.
CARD TYPE
Style 6
Style D
JWl JW2
JW3
JW4
IN IN IN OUT
IN IN
IN IN
28
firealarmresources.com

Simplex 4100+ Specifications

General

Type	Addressable Fire Alarm Control Panel
SLC Loops	Up to 10
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	10% to 93% non-condensing
Display	LCD
Communication	Ethernet
Power Supply	120/240 VAC, 50/60 Hz
Battery Backup	24 VDC
NAC Outputs	Expandable
Releasing Capability	Yes, with releasing modules
Max Notification Appliance Circuits (NACs)	Varies by modules
Max Releasing Circuits	10
Communication Ports	Ethernet
Max Devices	3, 000
