Pl to P8 and Pll to P18 are used to select which zones are Fire monitor and which are Security monitor. There are
two, 3-position connectors for each zone. The jumper positions are labeled ‘S’ (security monitor) and ‘F’ (fire
monitor). You must remove the end-of-line resistor on the Class A card when the zone is used for Security. You must
remove the capacitor indicated below when zones 5-8 are configured as coded input.
SW1
JWl-JW4
I I
II I I
P18 P17
P16 P15 P9 & PlO
Pi2 P8 P4 Pl

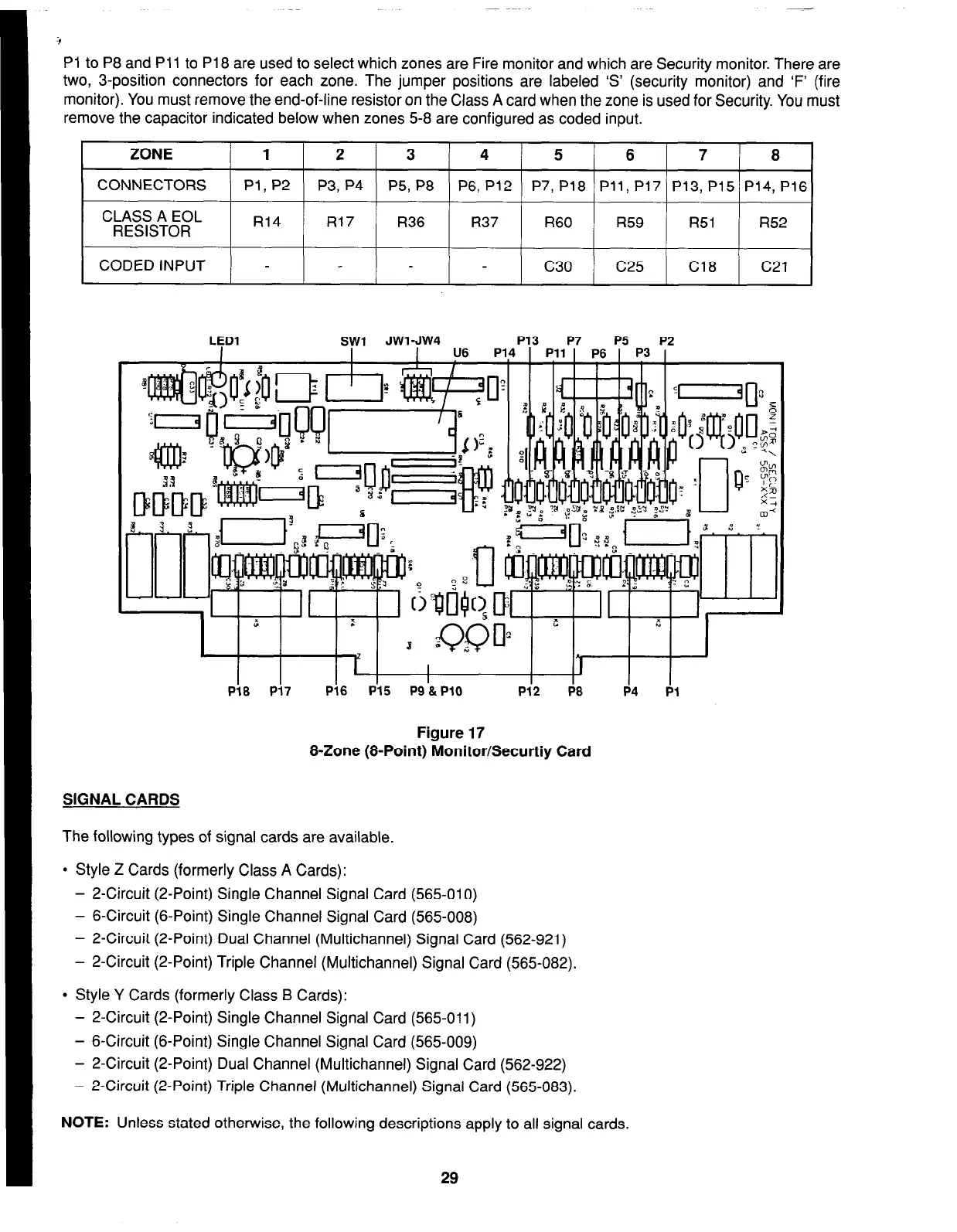

Figure 17
8-Zone (8-Point) Monitor/Securtiy Card
SIGNAL CARDS
The following types of signal cards are available.
l Style Z Cards (formerly Class A Cards):
- 2-Circuit (2-Point) Single Channel Signal Card (565-010)
- 6-Circuit (6-Point) Single Channel Signal Card (565-008)
- 2-Circuit (2-Point) Dual Channel (Multichannel) Signal Card (562-921)
- 2-Circuit (2-Point) Triple Channel (Multichannel) Signal Card (565-082).
l Style Y Cards (formerly Class B Cards):
- 2-Circuit (2-Point) Single Channel Signal Card (565-011)
- 6-Circuit (6-Point) Single Channel Signal Card (565-009)
- 2-Circuit (2-Point) Dual Channel (Multichannel) Signal Card (562-922)
- 2-Circuit (2-Point) Triple Channel (Multichannel) Signal Card (565-083).
NOTE: Unless stated otherwise, the following descriptions apply to all signal cards.
