Connector
Pl  = Fits  into  Socket  J2  on  the  motherboard.

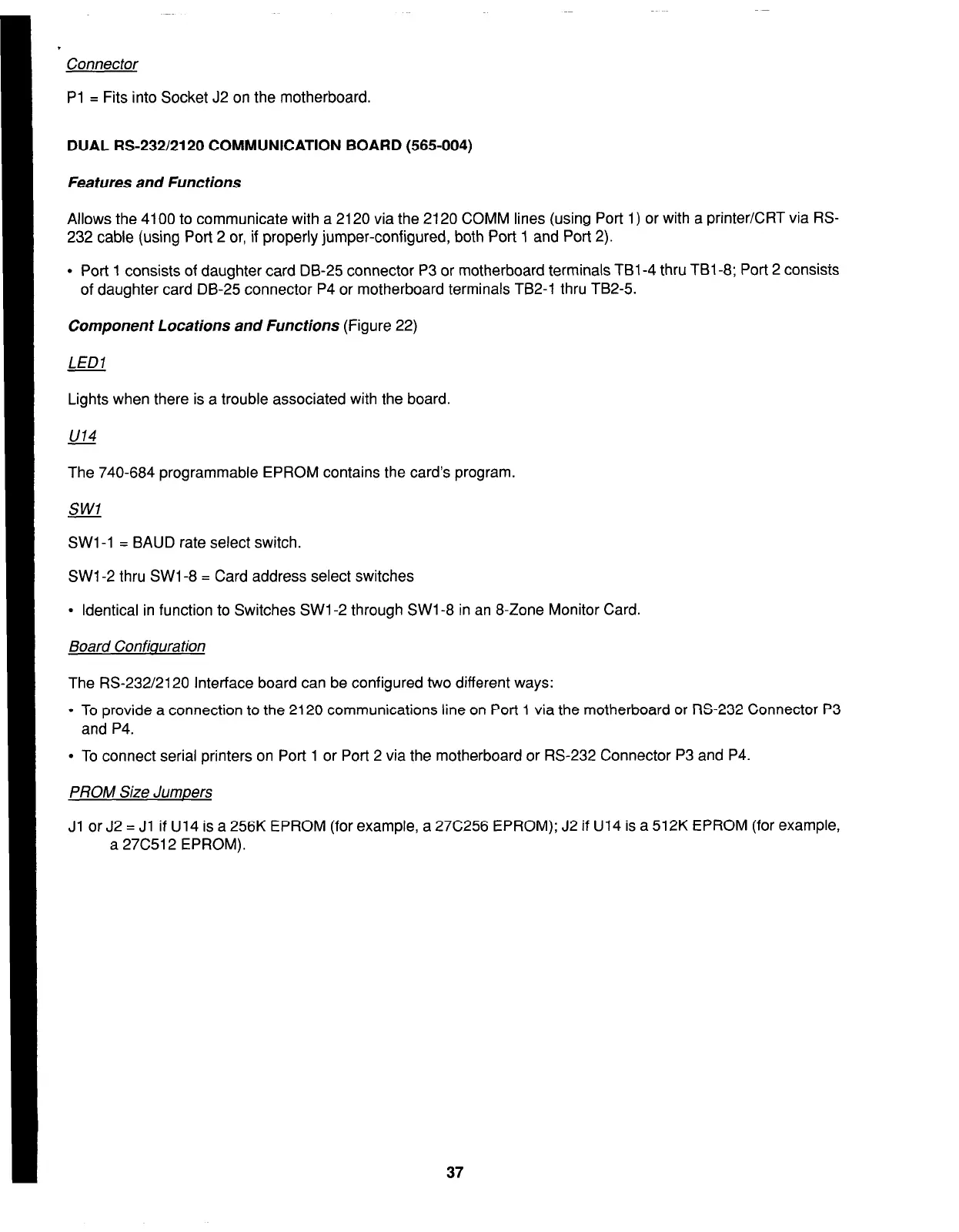

DUAL  RS-232/2120  COMMUNICATION  BOARD  (565004)
Features  and  Functions
Allows  the  4100  to  communicate  with  a 2120  via  the  2120  COMM  lines  (using  Port  1) or with  a printer/CRT  via  RS-
232  cable  (using  Port  2  or,  if properly  jumper-configured,  both  Port  1 and  Port  2).
l
Port  1 consists  of  daughter  card  DB-25  connector  P3 or  motherboard  terminals  TBl-4  thru  TBl-8;  Port  2 consists
of  daughter  card  DB-25  connector  P4  or  motherboard  terminals  TB2-1  thru  TB2-5.
Component  Locations  and  Functions  (Figure  22)
LED1
Lights  when  there  is a trouble  associated  with  the  board.
The  740-684  programmable  EPROM  contains  the  card’s  program.
SW1 -1  =  BAUD  rate  select  switch.
SW1 -2 thru  SW1 -8  =  Card  address  select  switches
l
Identical  in function  to  Switches  SW1 -2 through  SW1 -8  in an  8-Zone  Monitor  Card.
Board  Confiuuration
The  RS-232/2120  Interface  board  can  be  configured  two  different  ways:
l
To  provide  a connection  to  the  2120  communications  line  on  Port  1 via  the  motherboard  or  RS-232  Connector  P3
and  P4.
l
To  connect  serial  printers  on  Port  1 or  Port  2 via  the  motherboard  or  RS-232  Connector  P3  and  P4.
PROM  Size  Jumpers
Jl  or J2  = Jl  if U14  is a 256K  EPROM  (for  example,  a 27C256  EPROM);  J2  if U14  is a 512K  EPROM  (for  example,
a 27C512  EPROM).
37
