Pluaaable Resistors
Input points (switches) require 378-253 (2K, l/2 W) resistors; output points (lamps) require 382-110 (20 Ohm, 1 W,
wire wound) resistors.
SW1 -1 = BAUD rate select switch.
l
ON (left) if card is within the panel.
l
ON (left) if card is remote from the panel and external communication is at 9600 BAUD.
l
OFF (right) if card is remote from the panel andexternal communication is at 1200 BAUD.
SW1 -2 thru SW1 ?8 = Card address select switches.
l
Identical in function to Switches SW1 -2 thru SW1 -8 in an 8-Zone Monitor Card.
LED1
R28 thru R35
R36 thru R43
Pl

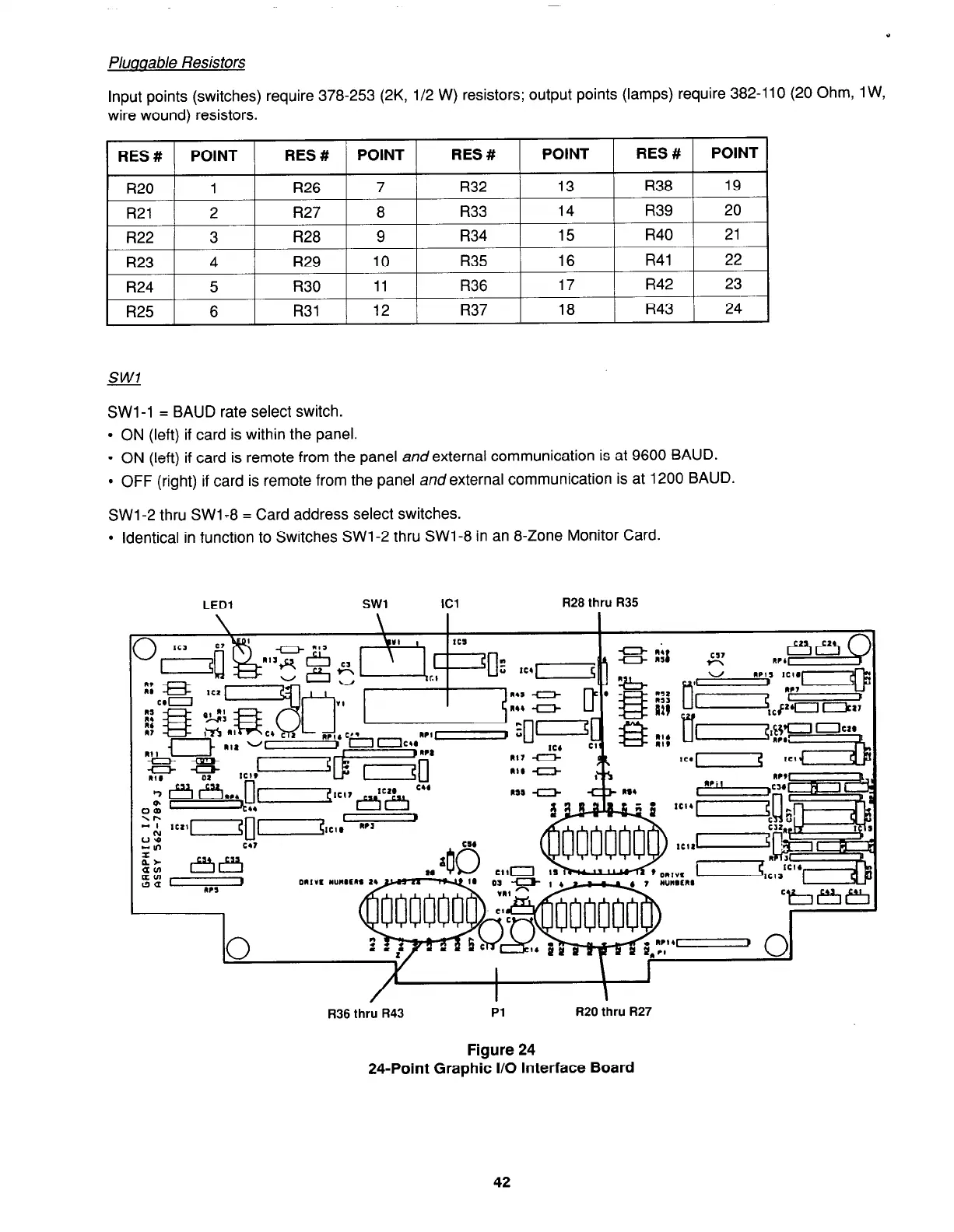

Figure 24
R20 thru R27
24-Point Graphic I/O Interface Board
