Simrad FS 70 User Manual

FS70 Trawl Sonar System
2 974-24007001/5.0
1.2 Equipment List
A typical FS70 Trawl Monitoring System consists of:
 FS 70 Deployment Housing
 FS 70, Vertical Sonar Head 120kHz, or 330kHz,
 200kHz Sounder Transducer
 40kHz or 70kHz Catch Sensors
 FS PWR/TTM Interface Unit
 USB/RS232 or optional Ethernet/RS232 converters
 DATSS PC based Processing Unit.
 LCD display monitors.
1.3 Typical System Configurations

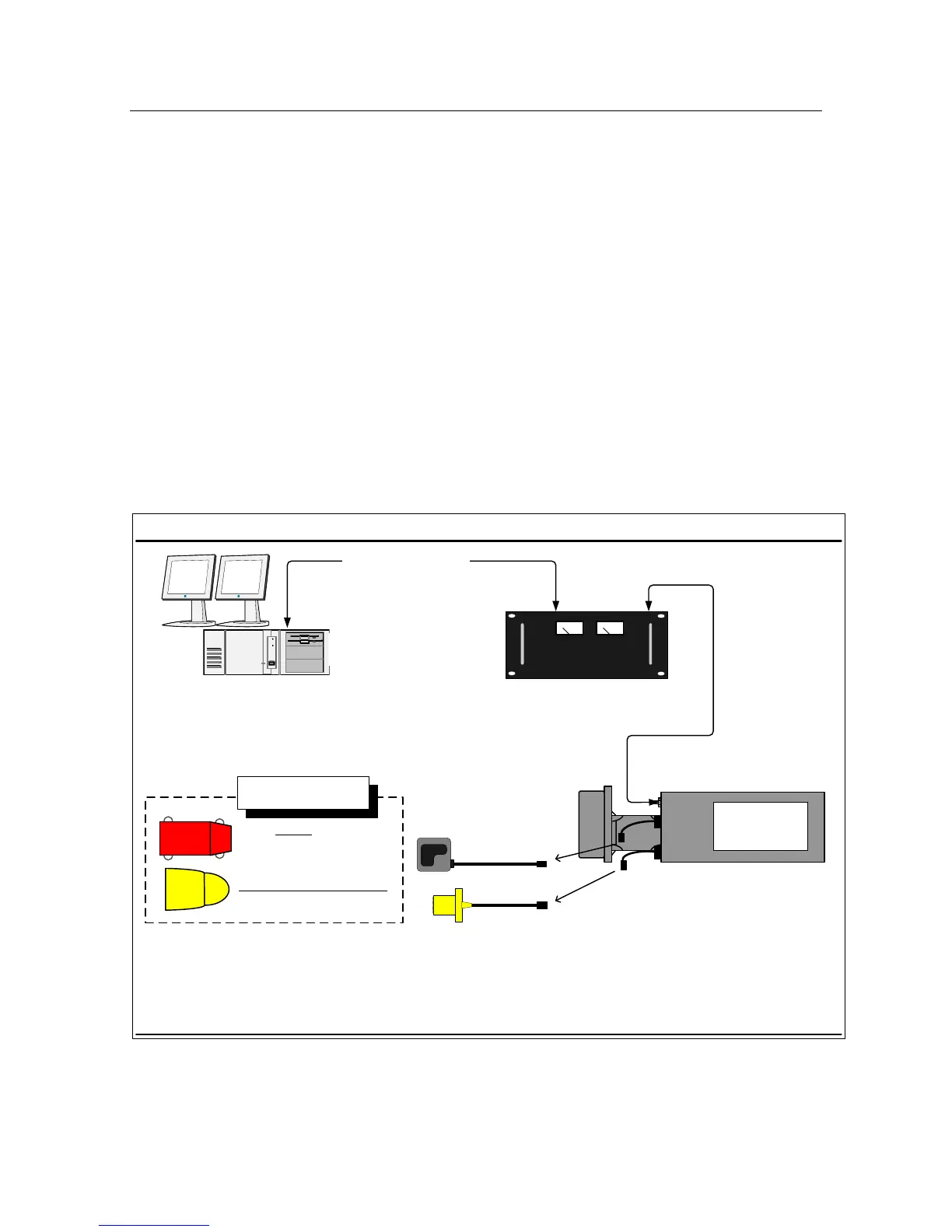

FS70 - 70 kHz System Configuration Overview
SIMRAD POWER / TTM
RS232 or USB/RS232
200 kHz
Sounder
40/70 kHz Catch
Hydrophone
FS70 Sonar (120 or 330 kHz)
70 kHz Catch (max 4)
200 kHz sounder (alternating)
FA 701
FA-701
70 kHz Catch Egg
#1, #2, #3, #4
PI / PS
PI/PS Programmed as 70 kHz
Catch Egg as #1, #2, #3, #4
Power / TTM Interface Unit
FS70 Software
c/w FS70 Dongle
Internal Sensors
· Pitch/Roll
· Depth
· Temp
70 kHz Catch Sensors
Test Cable
or
3
rd
Wire
