Simrad FS 70 User Manual

FS70 Trawl Sonar System
10 974-24007001/5.0
3 FS 70 System Operation
3.1 Introduction
The typical screen display for DATSS Sonar Processor consists of a tabbed Control Panel
that allows changing the settings and operating parameters of the DATSS System, resizable
display areas for the Sonar Head, Sounder and Message Log, a floating dockable Sensor
Panel to monitor the sensors status, toolbars for quick access to various functionalities and

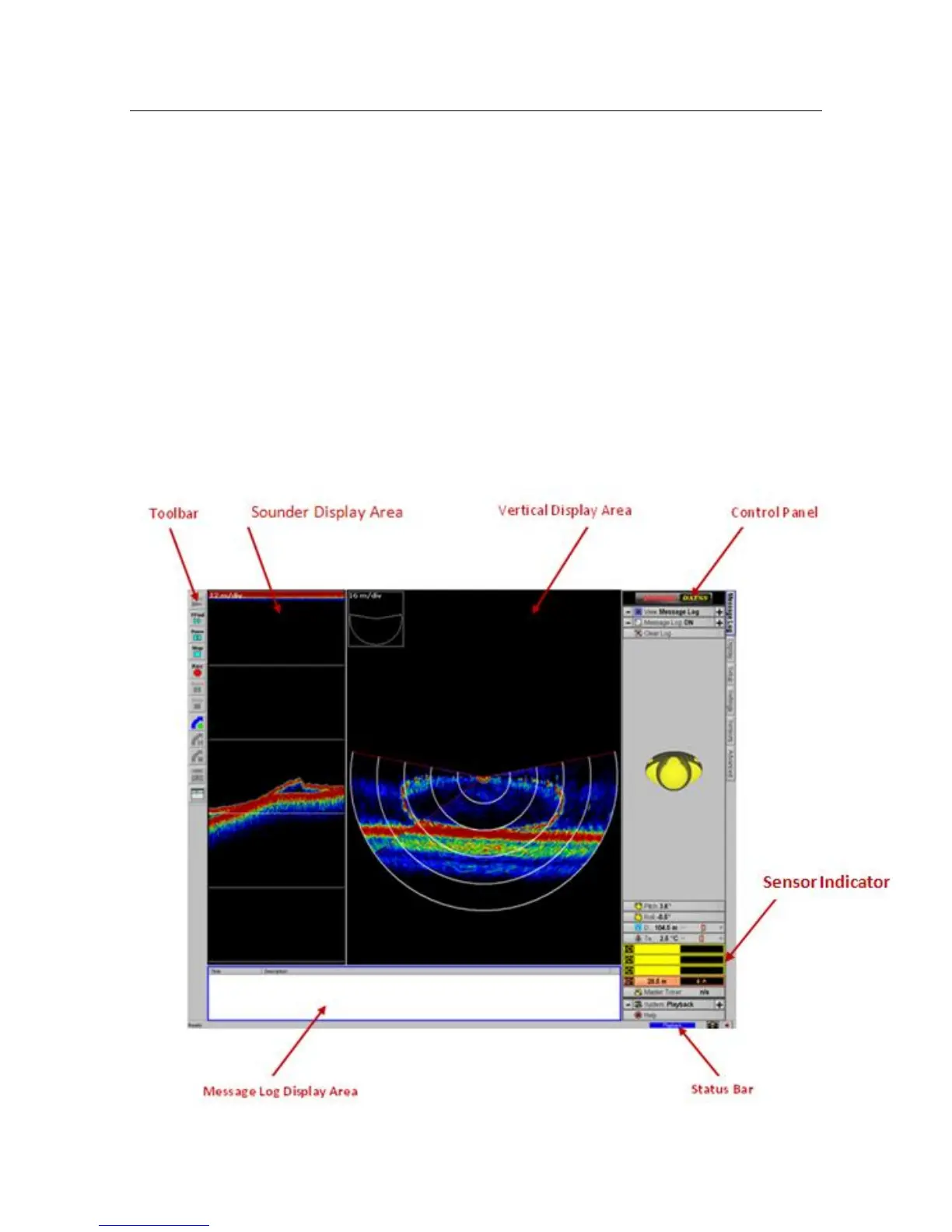

a status bar to monitor the system status. The image below shows a typical screen layout for
the DATSS processor and highlights the main components listed above:
