FS70 Trawl Sonar System
64 974-24007001/5.0
NOTE: The dual monitor software is installed at the factory, you only have to set up
your monitor configuration as per “Microsoft Window’s Operating System” provided
with the FS processor unit.
4.2.4 Power/TTM Unit
The Power/TTM Interface comes with the long line power supply incorporated in one unit,
thus making the installation easier.
The Front Panel comes with an ON/Off switch, trawl DC output voltage meter, amperage
meter and a four position trawl voltage rotary selection switch. The possible selections are;
“OFF”, “TEST”, “120 V” and “200 V”. A “TEST/TRAWL” selector switch and test cable
connector is also provided in the front panel.
The Rear Panel of the Power/TTM Interface comes with 110/230 VAC power input, master
ON/OFF switch and fuse located in the AC power entry module, and RS232 serial ports “A”,
“B” and “C” including the 3rd wire trawl cable connector.
4.2.5 Connecting the Processing Unit
The FS 70 Processor unit comes with the DATSS Trawl Sonar System operating software
installed by the factory.
NOTE: All Device drivers and utilities are preloaded on your system and provided on
a Driver, Utilities and documentation CD-ROM. This CD-ROM also includes tips for
re-installing the operating system.

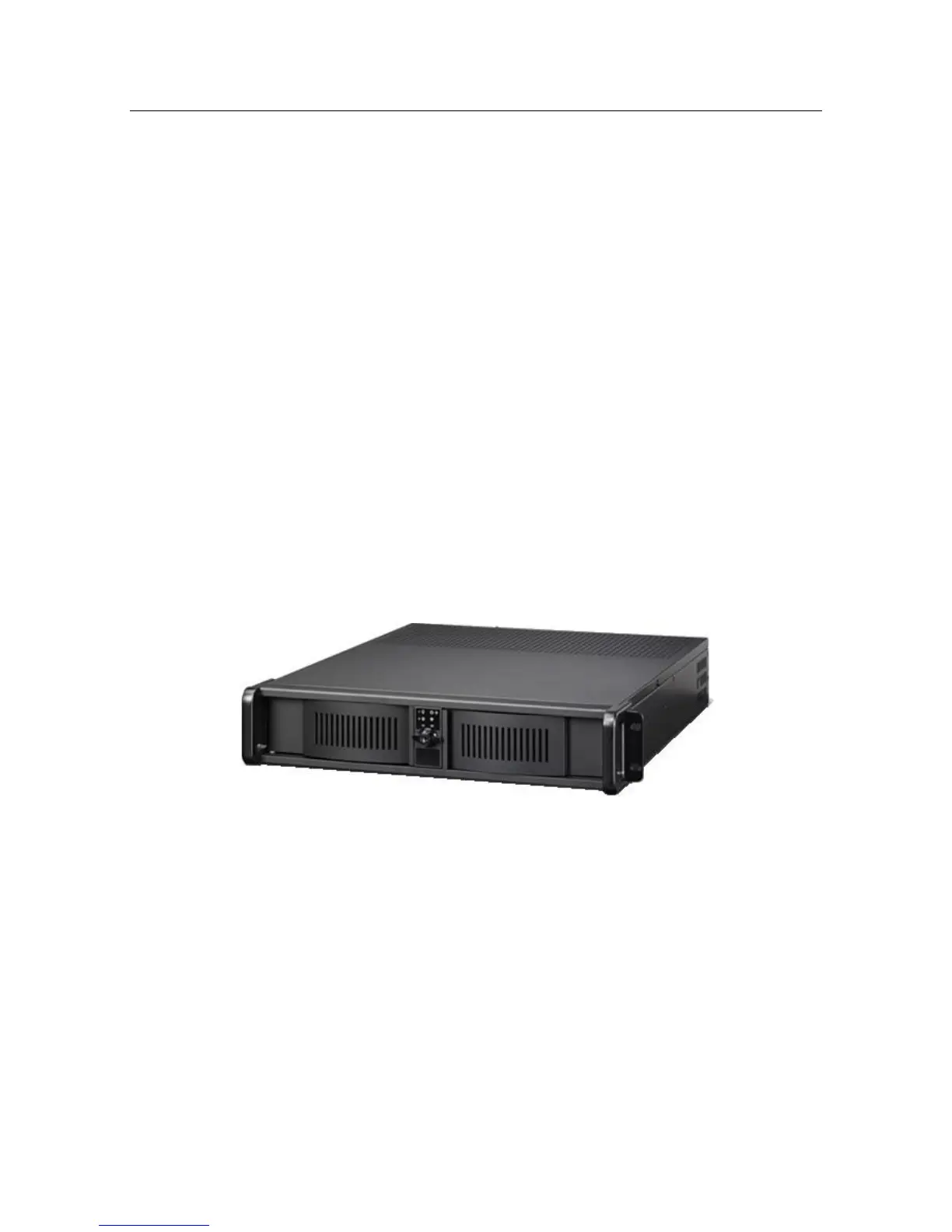

The FS70 Industrial PC rear panel connectivity is described below. For other PC models, the
rear panel appearance may be different but the appearance and functionality of the standard
ports will be similar to the description below.
