FS70 Trawl Sonar System
40 974-24007001/5.0

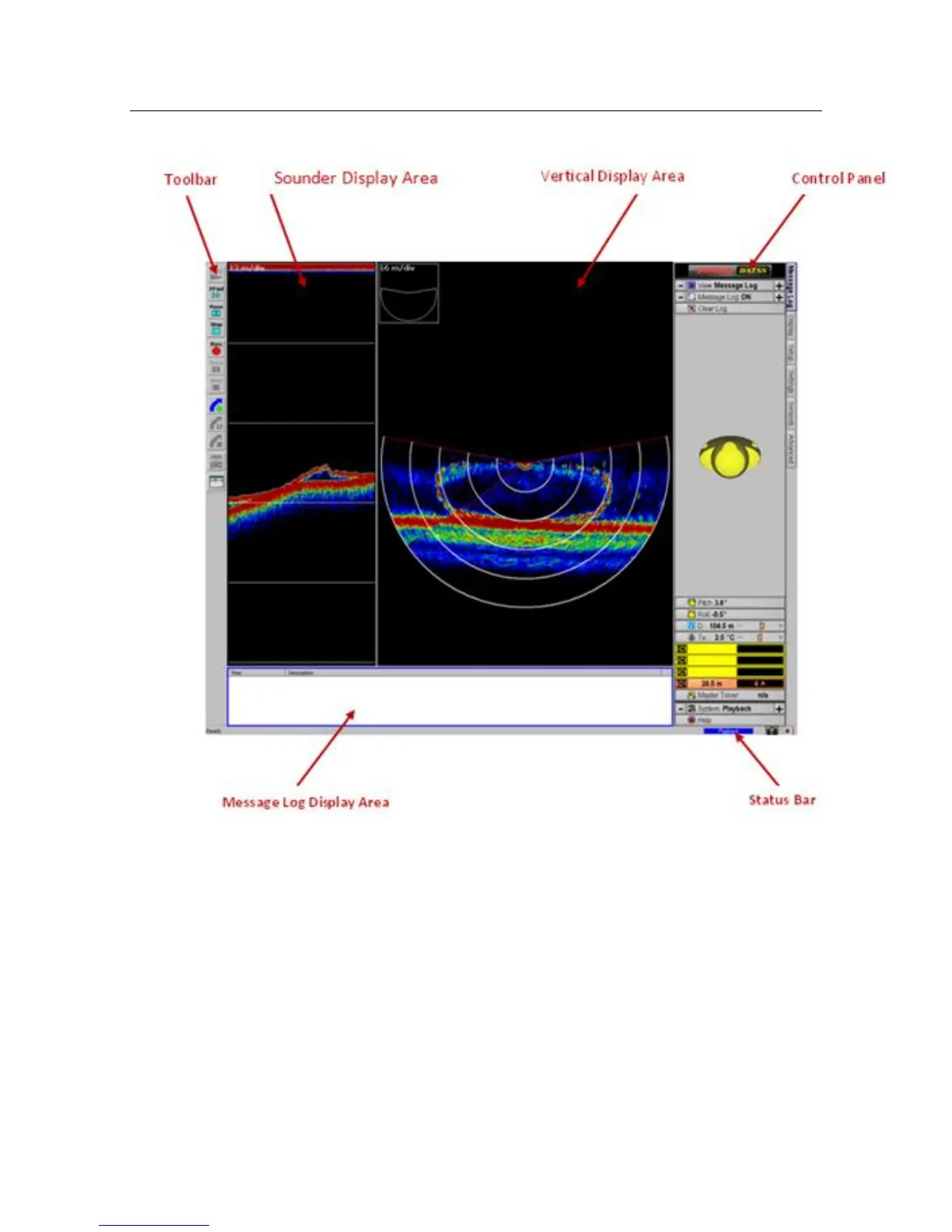

3.2.7.1 Control Panel
The Control Panel allows adjustments to several system parameters without having to
access a menu system. To minimize clutter the control items available in Control Panel are
grouped into tabbed pages according to functionality. Items that lead to dialog boxes are
shown in the “Advanced Menu”. All other items are system parameters that may be
modified. As you move the pointer over the Control Panel, a simple help message will pop
up beside the pointer describing its function. To perform certain operations, just left or right
click the mouse over the desired item. Selected items are highlighted.
