FS 70 System Operation
974-24007001/5.0 61
3.2.15 Activating the Sonar

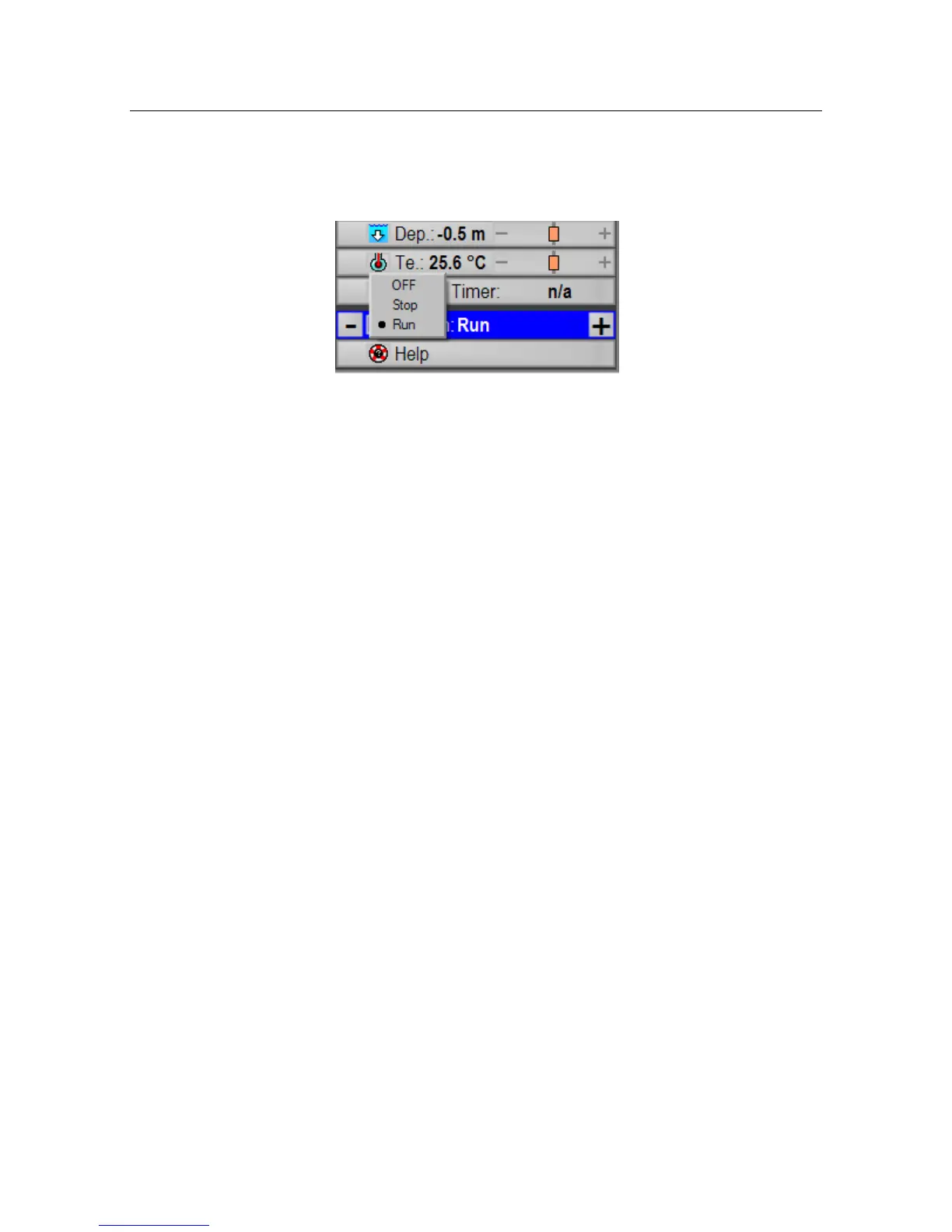

When you click on the Run button the system will initialize the serial port and start the
calibration of each sonar head connected to the TTM module. When you click the Stop
button you will automatically disconnect the sonar heads from the system.
NOTE: If you only want to “PAUSE” the sonar image, just right click the mouse on
the Sonar “Run/PAUSE” Button located on the Operation Page. Left click the mouse
to “RUN” the system.
