FS70 Trawl Sonar System
86 974-24007001/5.0

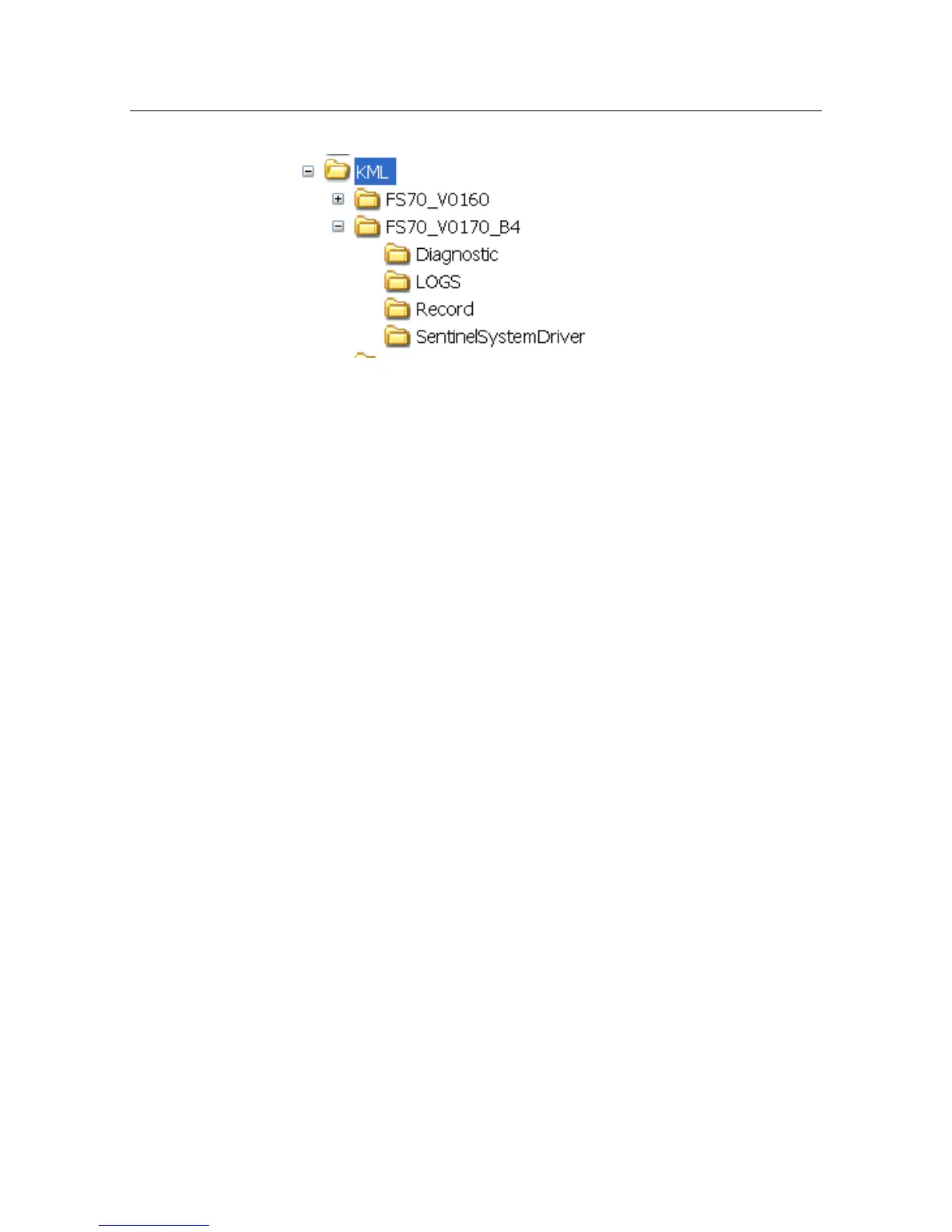

You will see the folders for “diagnostic”, “LOGS” and “Record”. Your recordings files are
saved as follows:
Diagnostic folder: Any snapshots that you take
The auto-run four (4) hour recording
LOGS folder: System messages and error messages (automatic)
Record folder: Any recordings that you manually start
All of these files are date and time stamped so you will know exactly when they occurred.
If you have experienced a problem with the system you want to ensure that the auto
recording of the event will not be overwritten. In this event you want to simply move the
file from the “diagnostic” folder and place it into a folder where you will easily be able to
find it. This file should be sent to your service provider at your earliest convenience so that
they can help determine what has caused the problem.
5.4.13 Diagnosing Problems
The usefulness of these tools is greatly enhanced when they are used on a regular basis to
monitor system performance. Records of past system performance (when the unit is
operating properly) provide a basis for comparison that may assist in diagnosing the
problem when an FS system fails.
