Simrad FS 70 User Manual

FS 70 System Operation
974-24007001/5.0 43

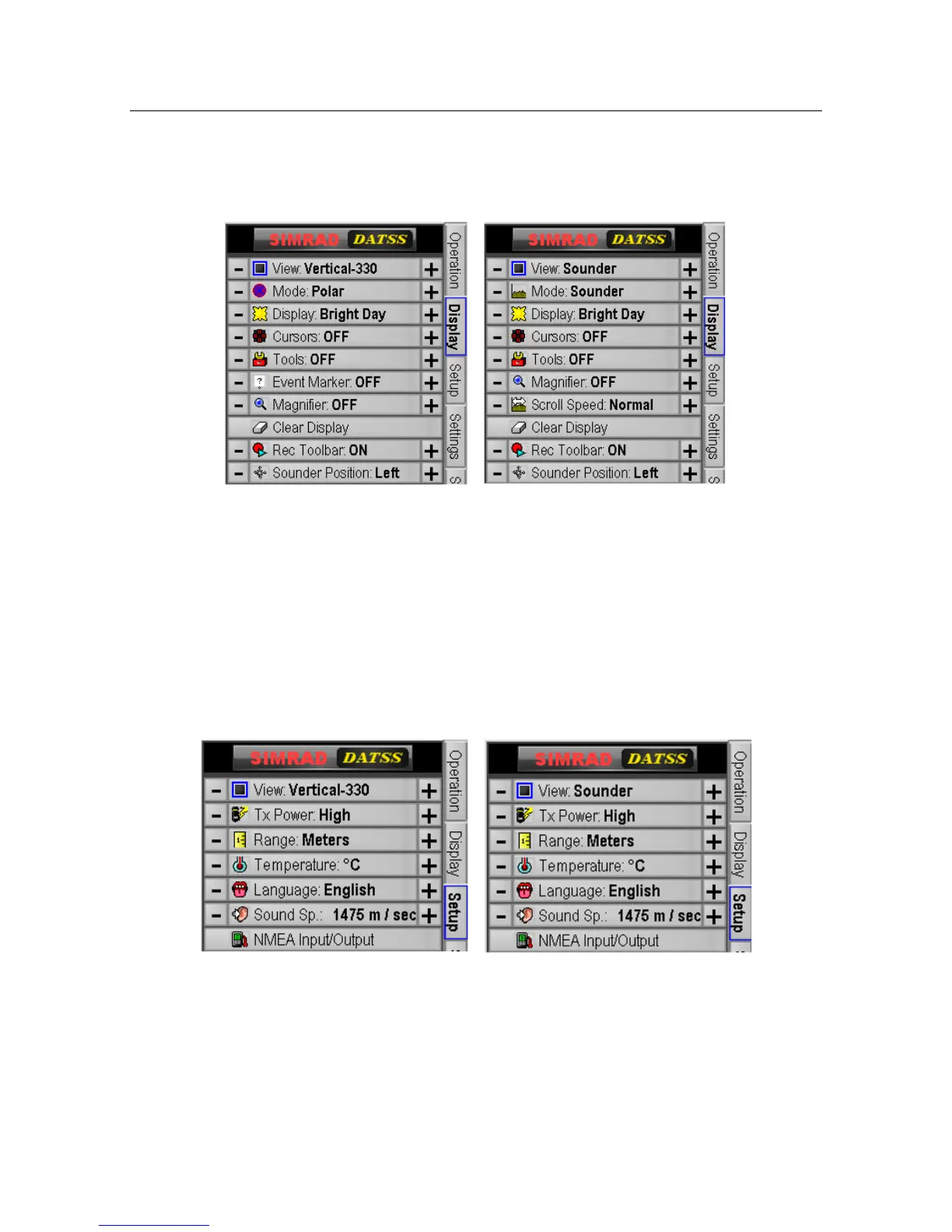

3.2.7.3 Display Control Panel Tab
The main Display” control panel allows you to select the display settings for the active
sonar. To change the value of the system parameter just left or right click the mouse over
the button you have selected, move the mouse up or down until the desired button is
highlighted and click the left mouse button or right mouse button to activate the new
setting.
3.2.7.4 Setup Control Panel Tab
The main “Setup” control panel allows you to set up system parameters for the active sonar.
To change the value of the system parameter just left or right click the mouse over the
button you have selected, move the mouse up or down until the desired button is
highlighted and click the left mouse button or right mouse button to activate the new
setting.
