Simrad FS 70 User Manual

FS 70 System Operation
974-24007001/5.0 15

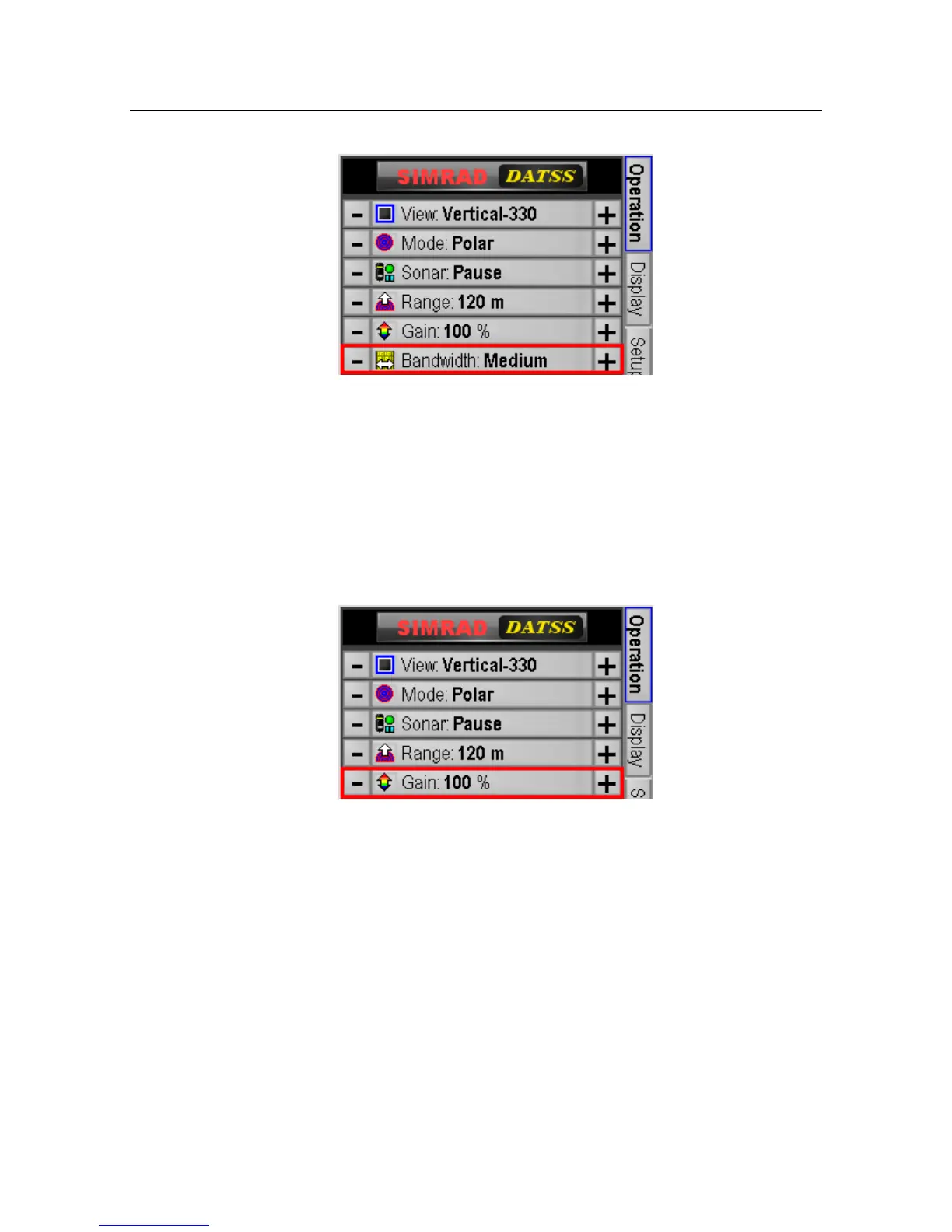

3.2.2.3 Changing the Gain:
Increase the Gain to get higher intensity image.
Decrease the Gain to get lower intensity image.
To change the Gain:
 Click Gain button from the Operation tab.
3.2.2.4 Changing the Scan Speed:
DATSS supports the following scan speed for the step motor in Polar and Sector scan
mode:
 0.5 degree per step
 1 degree per step
 2 degree per step
 4 degree per step
 7 degree per step
To change the scan speed:
 Click Scan Speed button on the Operation tab.
