FS 70 System Operation
974-24007001/5.0 59

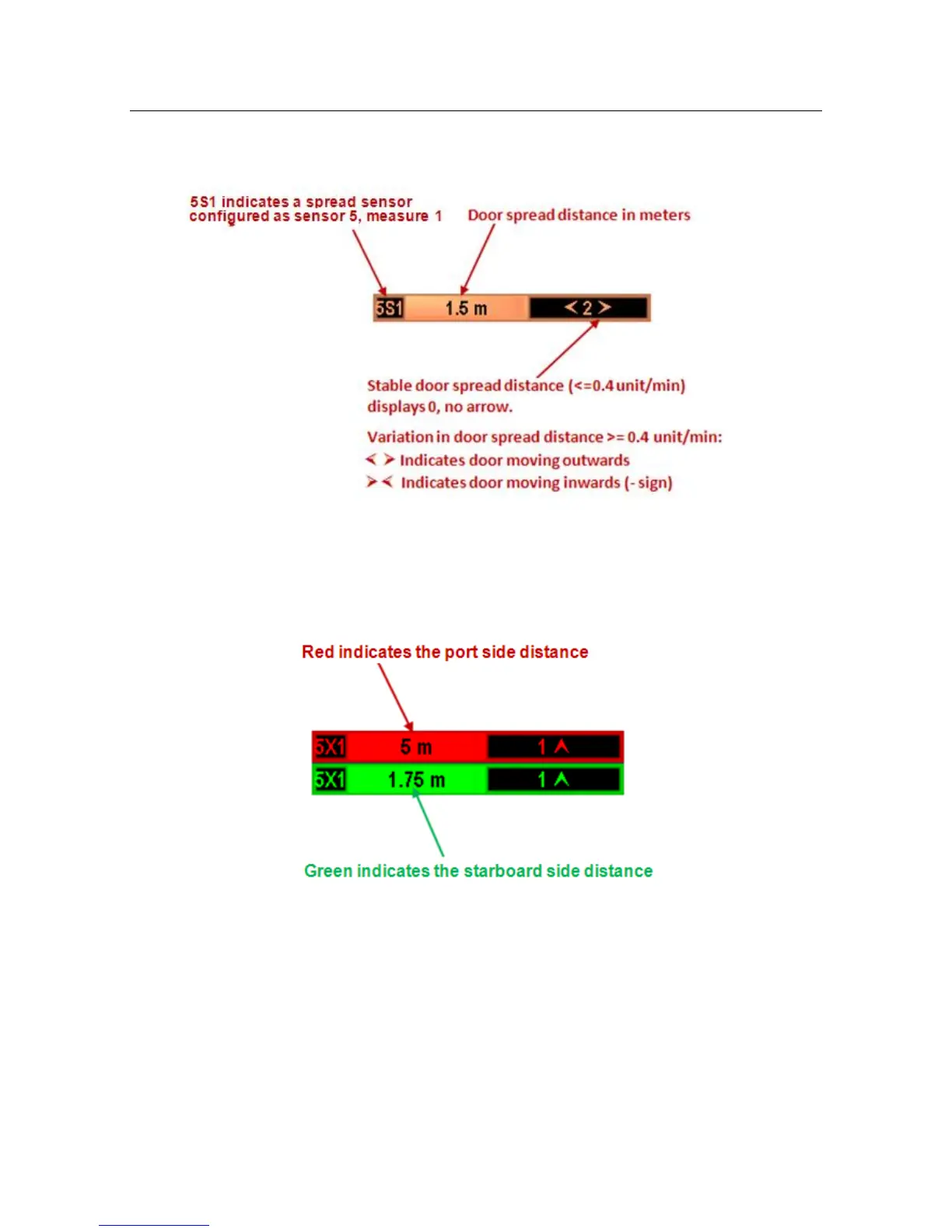

3.2.13.6 Spread Sensor Indicator
3.2.13.7 Geometry Sensor Indicator
The geometry sensor measures the distance from the centre of the head rope to either door
or wing end.
