FS70 Tr
aw
l Sonar Syste
m
58
974
-24007001/5.0
3.2.13.3

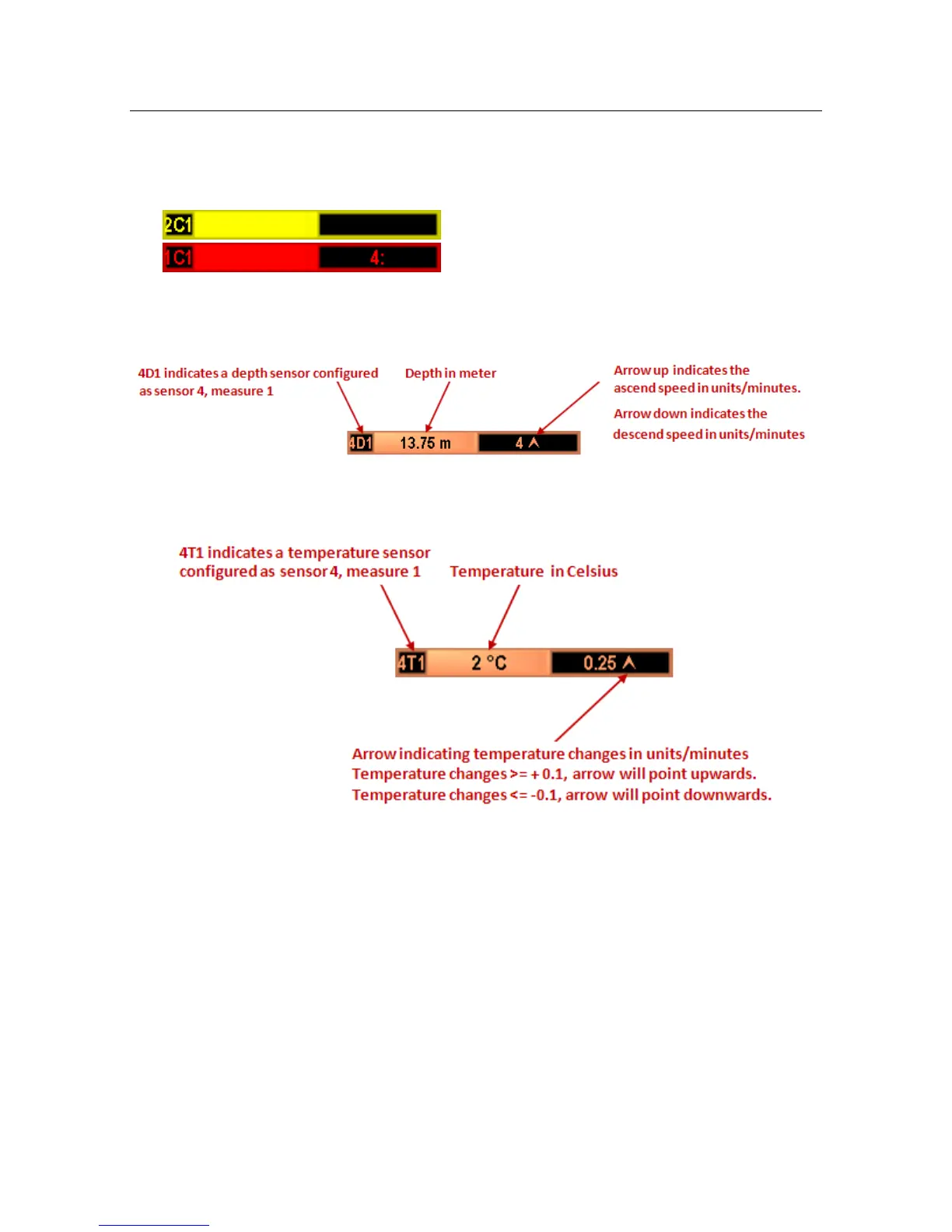

Catch Sensor Indicator
Catch sensor is activated, data valid.
Catch sensor is pulled, triggered the fish alarm
for 4 minutes.
3.2.13.4
Depth Sensor Indicator
3.2.13.5
Temperature Sensor Indicator
67
69
