FS70 Trawl Sonar System
30 974-24007001/5.0
To remove a sensor from a COM port:
1. Select the sensor to be removed
2. Click the Disconnect button
Select "Adjust System Time" to allow the system clock to be synchronized to the time
stamp from the NMEA sensor data.

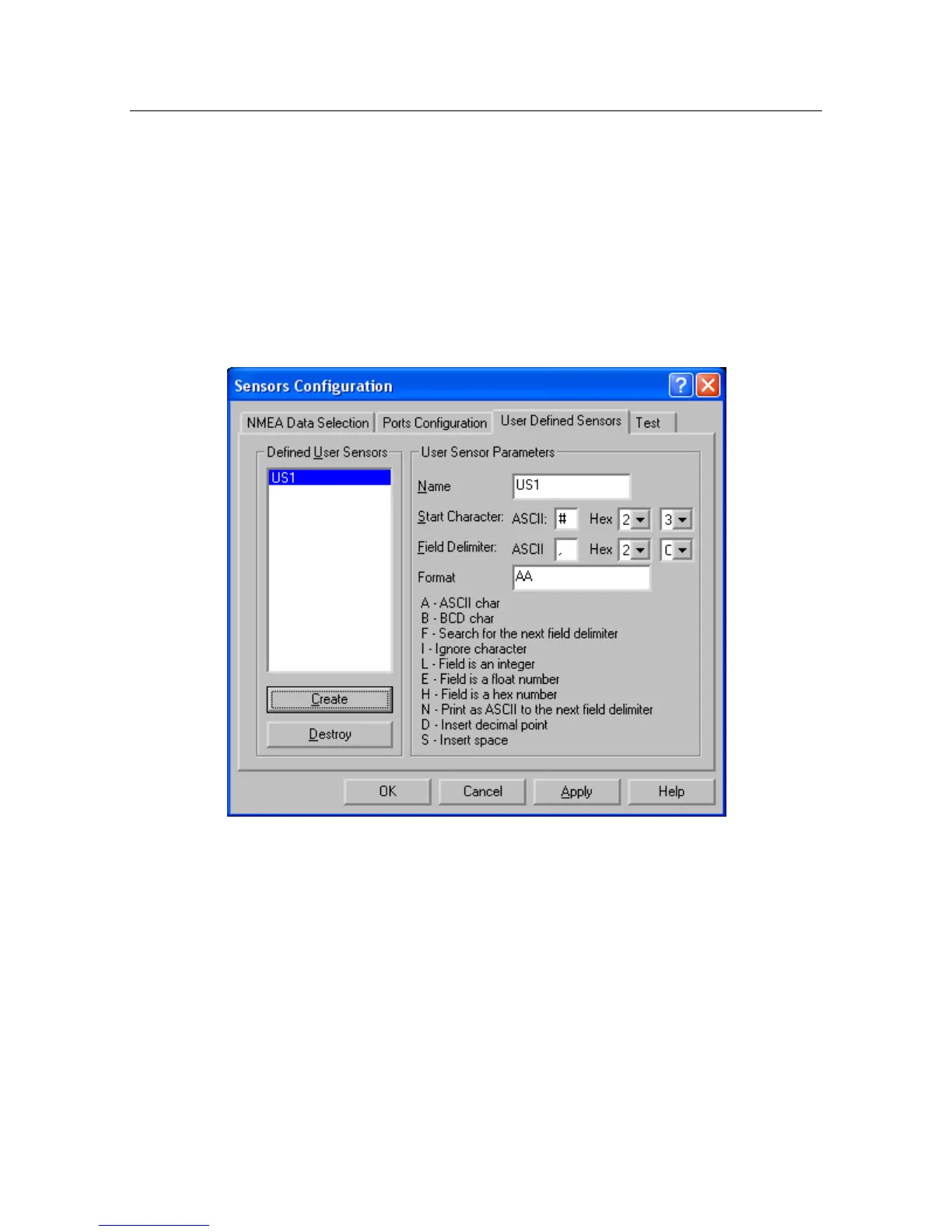

3.2.5.2 Creating user defined sensors
- In the User Defined Sensors page, click the Create button to make a new user defined
sensor.
- Change the assigned name by editing the contents of the Name box.
- Use the Start Character box to select the start character of the user serial string.
- Use the Field Delimiter box to select the delimiter character to delimit the string. Typically
a comma or a space.
- Use the Format box to select which characters in the input string will be displayed and
how they will be interpreted. You must enter some sequence of the letters A,B,F,I,N,D, or
S to define the display format:
A --- Print as ASCII character
B --- Print as BCD character
