Simrad FS 70 User Manual

FS70 Trawl Sonar System
48 974-24007001/5.0
NOTE: The PI sensor setup menus are not available if you are using a 70 kHz Catch
Sensors system.

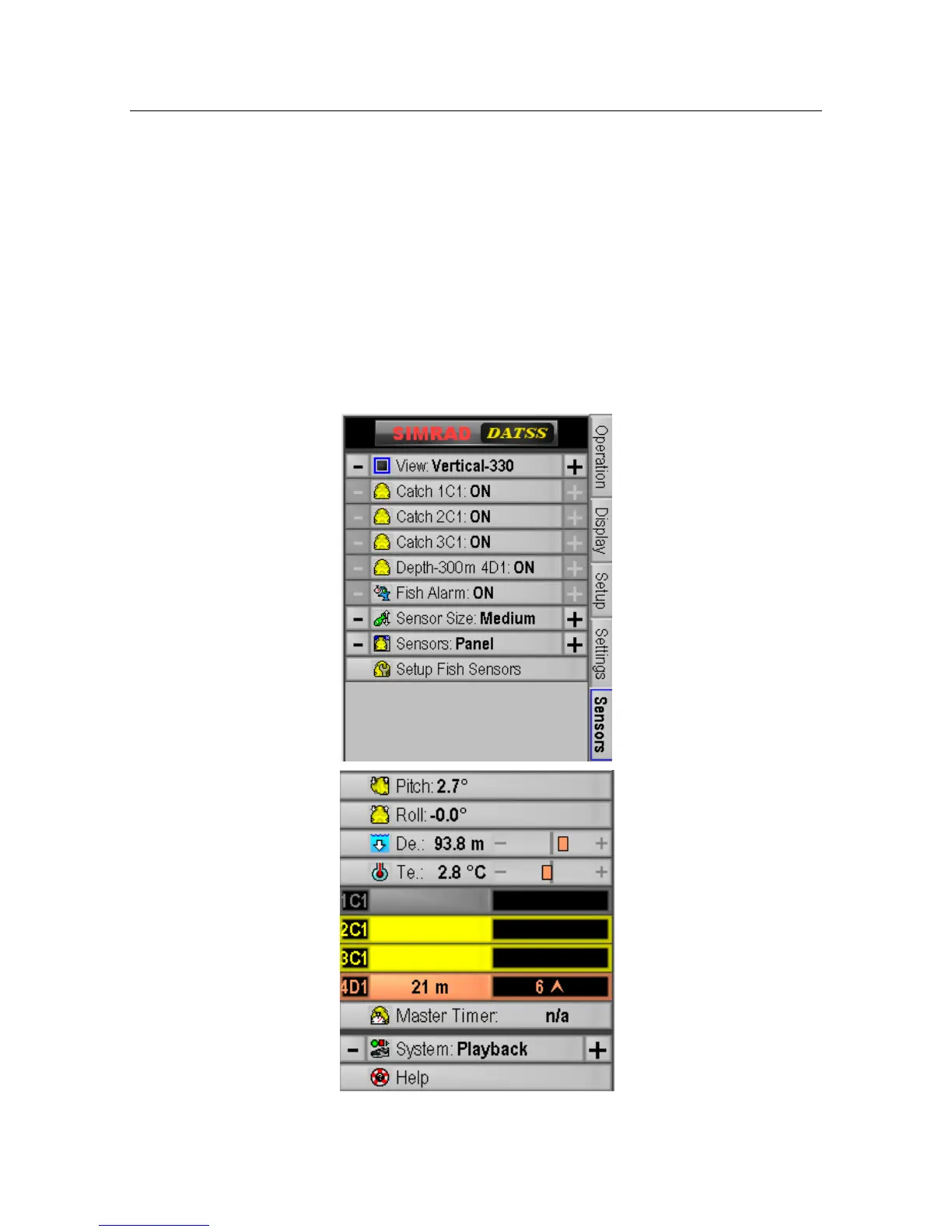

3.2.7.9 PI 40 kHz Sensors Activation Menu
The main “SENSORS ACTIVATION MENU” control panel allows you to select the
sensors you want to turn ON or OFF. To change the value of the system parameter just left
or right click the mouse over the button you have selected, move the mouse up or down
until the desired button is highlighted and click the left mouse button or right mouse button
to activate the new setting.
