FS70 Trawl Sonar System
36 974-24007001/5.0
3.2.6.2 Playback

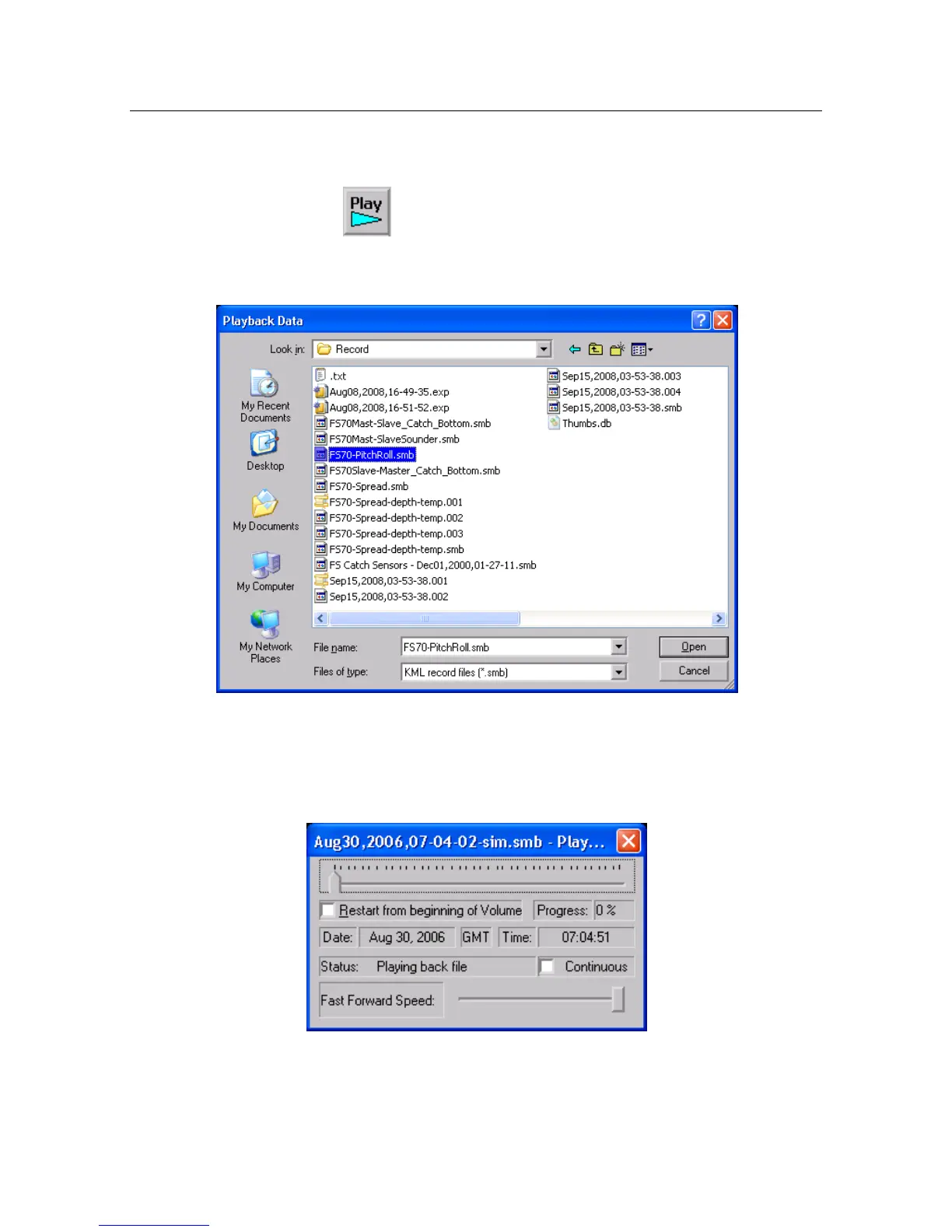

To playback smb file, click button on the recording toolbar. The playback data
dialog box allows you to select a file for playback.
Select the file that you want to playback, then click Open to start playback.
The Playback Progress dialog box is used to control data playback and show the current
position within the data.
