FS 70 System Operation
974-24007001/5.0 47
The next step after the above operation, for example, will be to add a catch sensor.
Click on “sensor 5”; next select Door Spread or catch #2; next you would select the channel
of operation, in this case you would have selected #2.
If you are adding for example a temperature sensor you can setup an offset. See the
windows above for the example.
Note: For additional information on the Simrad PI Setup, please refer to your PI Instruction
Manual.

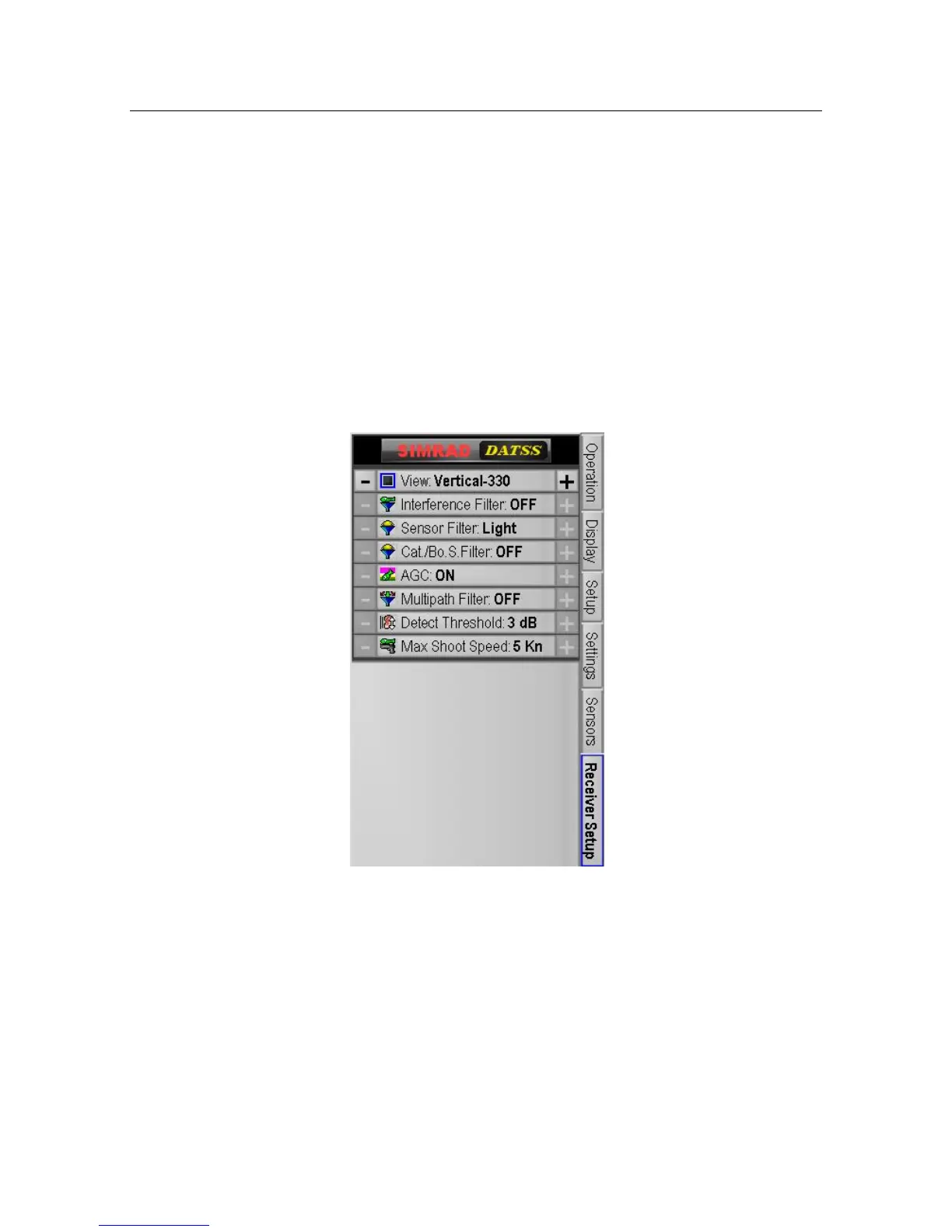

3.2.7.8 PI 40 kHz Sensors Receiver Setup
The main “SENSORS RECEIVER SETUP” control panel allows you to select the sensors
you want to setup. To change the value of the system parameter just left or right click the
mouse over the button you have selected, move the mouse up or down until the desired
button is highlighted and click the left mouse button or right mouse button to activate the
new setting.
NOTE: For additional information on the Simrad PI Sensors Setup, please refer to
your PI Instruction Manual.
