Simrad FS 70 User Manual

FS70 Trawl Sonar System
26 974-24007001/5.0
3.2.4.2 Using the Tools:

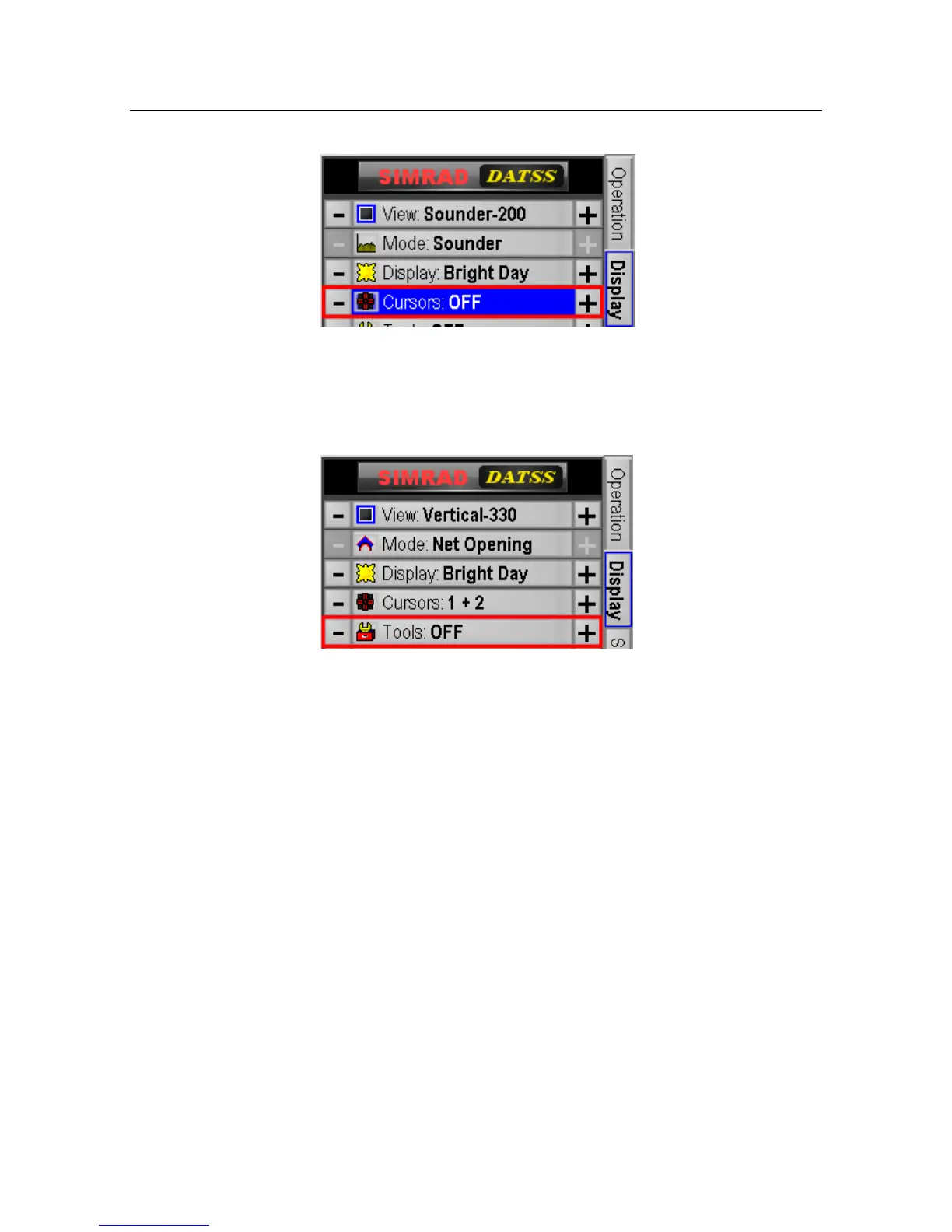

Tools can be selected from the Display tab.
The Tools include the following:
 Pencil: Used for annotation. Drag from any point on the screen to label that point with a
text box overlay. To enter new text or change the existing text, simply double click on
the text box.
 Wiper: Used to delete existing measurement overlays.
3.2.4.3 Using the Gauge Window:
A gauge window is a small window containing data and appearing inside the sonar head
display window. DATSS has following gauge windows:
 The Head Settings Gauge Window: The Head Settings gauge Window shows the
settings of some of the main parameters for the sonar head. Right-click on the sonar
image view, select Head Settings to display The Head Settings gauge window.
