FS 70 System Operation
974-24007001/5.0 41

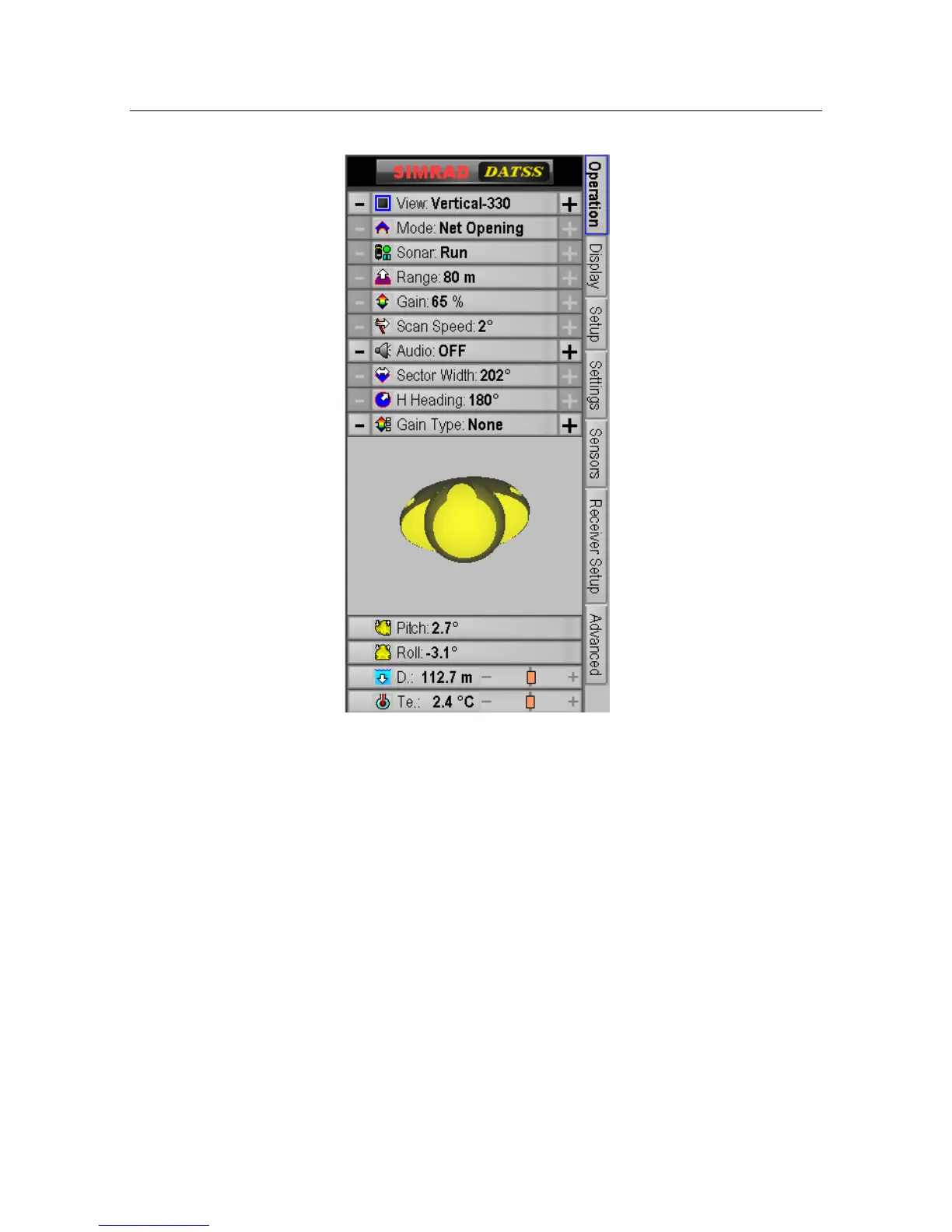

The Sonar Control Panel located above is divided into 7 tabbed Pages: Page 1 “Operation”,
Page 2 “Display”, Page 3 “Setup”, Page 4 “Settings”, Page 5 “Sensors Control”, Page 6
“Receiver Setup” and Page 7 “Advanced”. Each page allows you to change the system
parameters. To change the value of a system parameter, move the mouse up or down until
the desired button is highlighted and click the left mouse button or right mouse button to
activate the new setting.
NOTE: The main control panel can be docked or auto-hidden.
