FS 70 System Operation
974-24007001/5.0 13

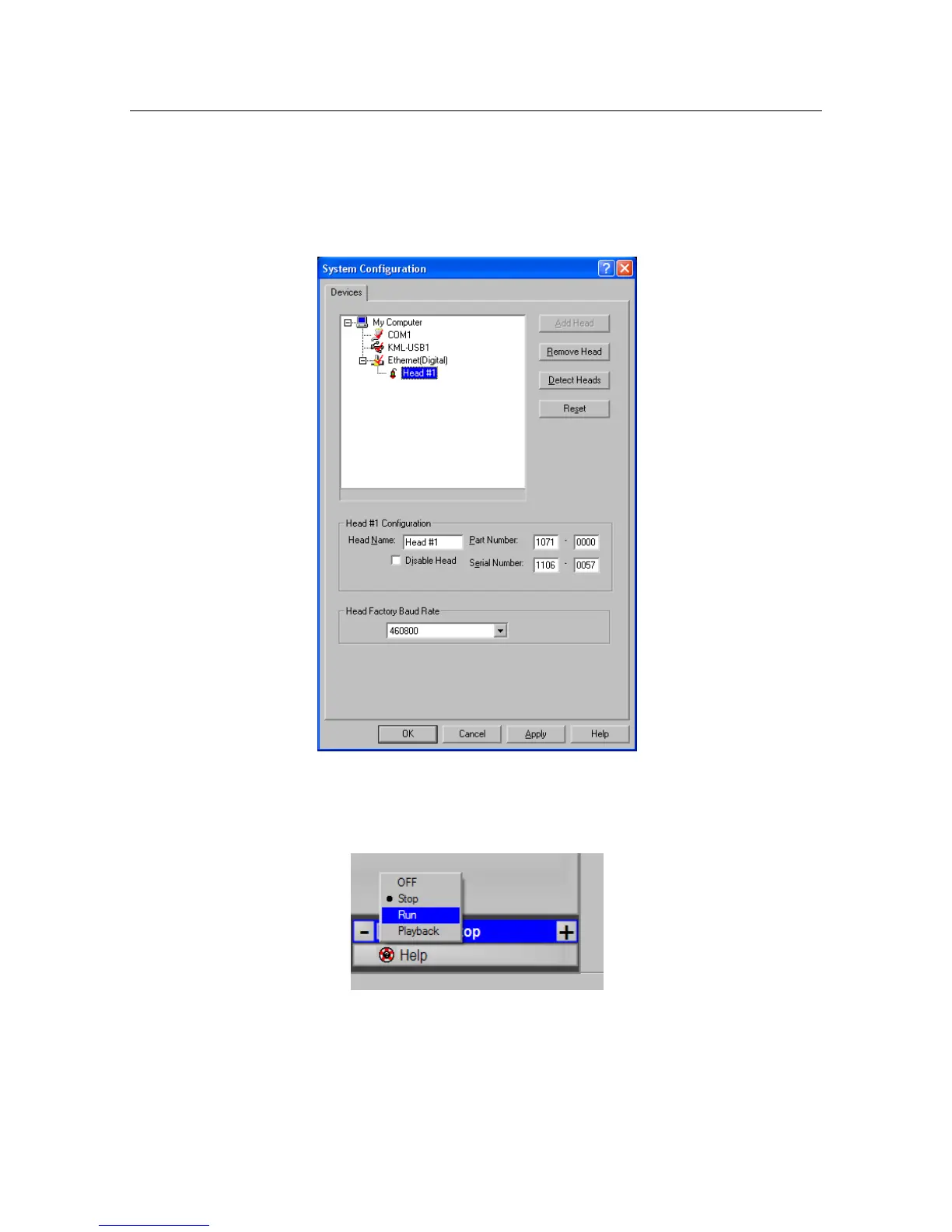

To connect a head, click Detect Heads button. A progress bar will be shown as the system
establishes communication with the sonar heads.
The Part Number and Serial Number of the sonar head will be shown.
Click OK to exit the dialog.
Select System > Run
The system will automatically setup the sonar head(s) attached to the trawl cable. This
operation will take approx. 60 seconds for the Anlalog system and 40 seconds for the
digital system.
