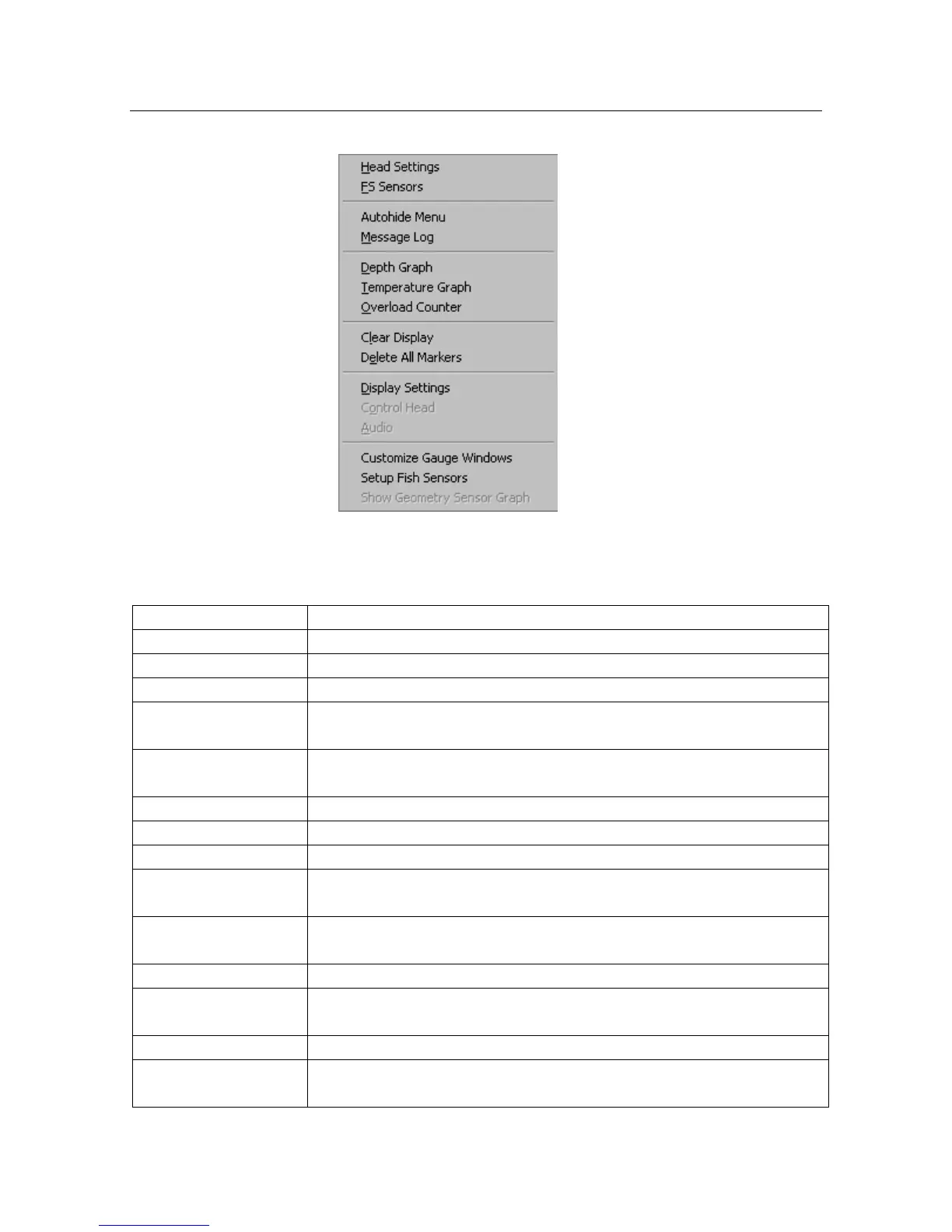

Menu items:
Head Settings
Opens the head settings gauge window.
FS Sensors
Opens the depth and temperature sensor gauge window.
Autohide Menu
Turn The Control Panel auto-hide on or off.
Message Log
Open / Close the Message Log Window
Depth Graph
Opens the depth graph window. The depth graph window displays
1 hour depth readings.
Temperature Graph
Opens the temperature graph window. The temperature graph
window displays 1 hour temperature readings.
Overload Counter
Opens the Overload Counter window.
Clear Display
Clear the current selected sonar image display.
Delete All Markers
Delete all markers on the display.
Display Settings
Opens the advanced display settings dialog box to change the
display settings.
Control Head
Opens the advanced head settings dialog box to change the sonar
head settings.
Audio
Opens the Audio Setup dialog.
Customize Gauge
Window
Opens the gauge window dialog box to define the gauge window.
Setup Fish Sensors
Opens the Fish Sensor Setup window to configure PI sensors.
Show Geometry
Sensor Graph
Opens the geometry sensor graph window. The geometry sensor
graph window displays 1 hour geometry sensor readings.
