Simrad GC80 User Manual

Simrad GC80/85 Double System Controller
20
988-12721-001

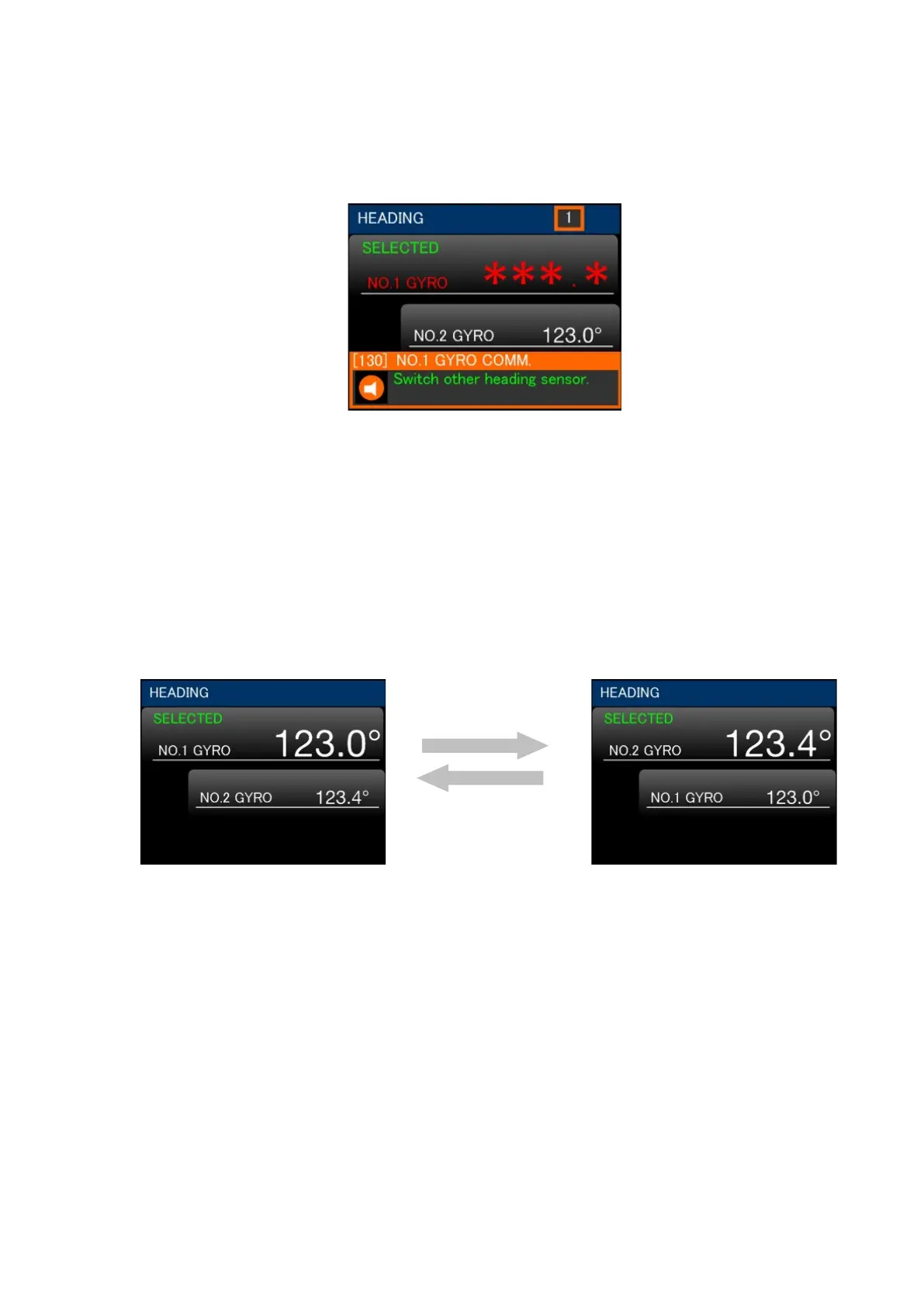

Screen when an Alert occurs
4.3 Select heading sensor
Sensor selection
1 The unit outputs the true heading of the selected gyrocompass.
-
To select NO.1 gyrocompass, press the △/NO.1 key and the HDG
key simultaneously.
-
To select NO.2 gyrocompass, press the △/NO.2 key and the HDG
key simultaneously.
4.4 Adjust display illumination and display test
Adjust display brightness
On the main screen:
Press △/NO.2: Up.
Press ▽/EXT: Down.
Press △/NO.2 key
+ HDG key
Press MENU/NO.1 key
+ HDG key
Display when an alert
occurs. Refer to “ALERT
MESSAGES AND
CORRECTIVE ACTIONS” on
page 67.

Simrad GC80 Specifications

General

Type	Gyro Compass
Power Supply	24 V DC
Operating Temperature	-15°C to +55°C
Heading Resolution	0.01°
Heading Repeatability	±0.1°
IP Rating	IP66
Storage Temperature	+70°C
Interfaces	NMEA 0183
Humidity	95% non-condensing
