Simrad GC80 User Manual

Simrad GC80/85 Double System Controller
988-12721-001
57

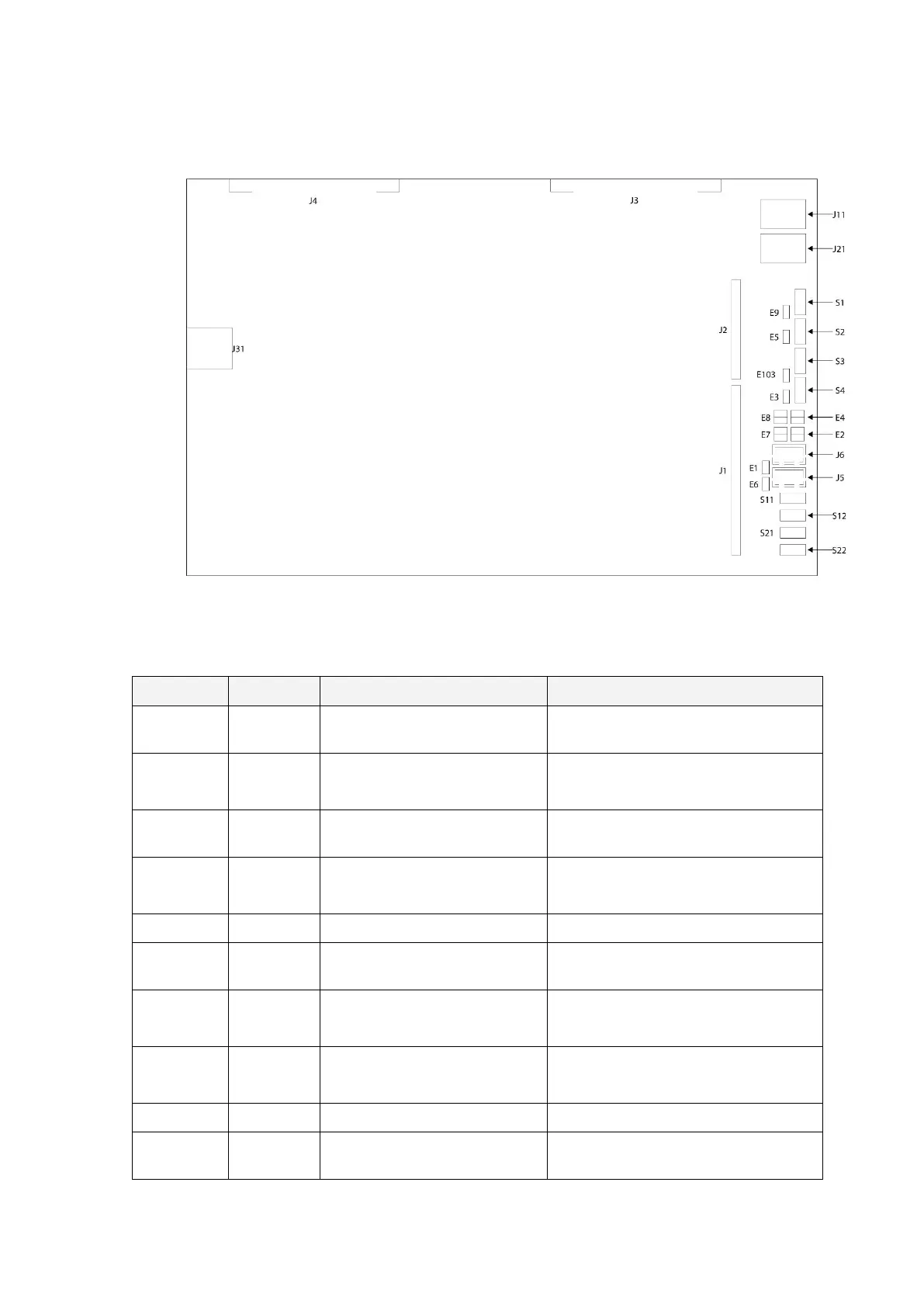

DGCIF board
Jumper settings on DGCIF board
JUMPER DEFAULT FUNCTION DESCRIPTION
E1 Short NO.1 SCC software download
Software download (open for
download)
E2 1-2 short NO.1 setting of speed log pulse
1-2 short: 200 p.p.n.m. contact
3-4 short: 400 p.p.n.m. contact
E3 Short NO.2 SCC software download
Software download (open for
download)
E4 1-2 short NO.2 setting of speed log pulse
1-2 short: 200 p.p.n.m. contact
3-4 short: 400 p.p.n.m. contact
E5 Open CPU (U1) reset CPU reset (short for CPU reset)
E6 Short DGCIF (U1) software download
Software download (open for
download)
E7 1-2 short Setting of alert contact
1-2 short: Normal open/Alert closed
3-4 short: Normal closed/Alert open
E8 1-2 short Setting of running contact
1-2 short: Running open/Stop closed
3-4 short: Running closed/Stop open
E9 Open CPU (U2) reset CPU reset (short for CPU reset)
E103 Short DGCIF (U2) software download
Software download (open for
download)

Simrad GC80 Specifications

General

Type	Gyro Compass
Power Supply	24 V DC
Operating Temperature	-15°C to +55°C
Heading Resolution	0.01°
Heading Repeatability	±0.1°
IP Rating	IP66
Storage Temperature	+70°C
Interfaces	NMEA 0183
Humidity	95% non-condensing
