Simrad GC80 User Manual

Simrad GC80/85 Double System Controller
62
988-12721-001

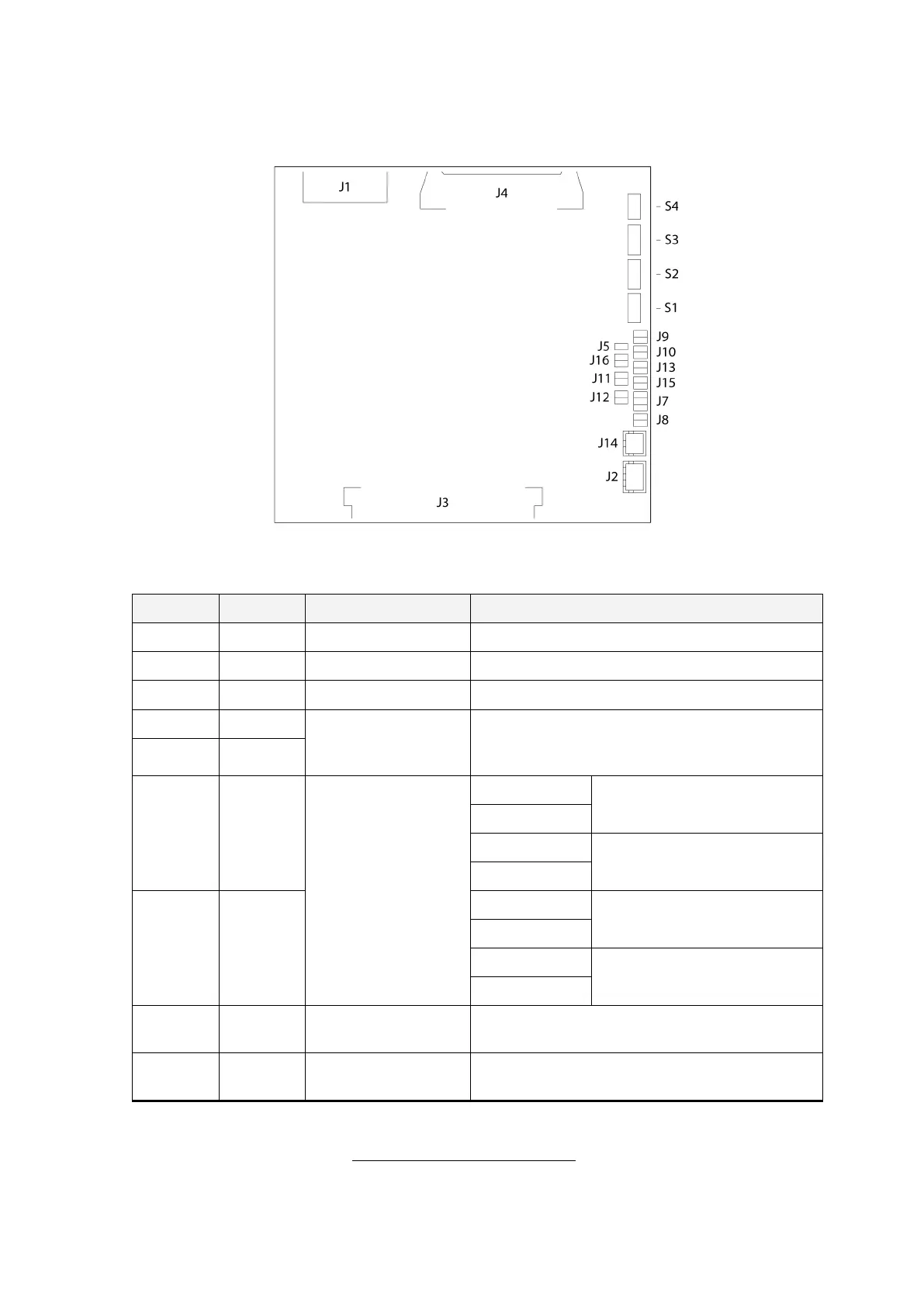

SCC boards
DIP switch settings on SCC boards
SWITCH DEFAULT FUNCTION DESCRIPTION
S1-1 OFF Control unit type OFF = Expanded ON = Compact
S1-2 OFF Master compass type OFF = Standard ON = High Speed
S1-3 ON 2 Gyros used OFF = Single ON = Dual
S1-4
1
OFF
Active gyro system
Note:
Different settings for SSC board 1 and SSC board 2!
Refer to footnote below.
S1-4 ON
S1-5 OFF
External sensor
connection
SW1-5 OFF
= No external sensor
SW1-6 OFF
SW1-5 OFF
= Not used
SW1-6 ON
S1-6 OFF
SW1-5 ON
= Not used
SW1-6 OFF
SW1-5 ON
= Not used
SW1-6 ON
S1-7 OFF Serial signal format
OFF = IEC61162-2 ed.1 (NMEA0183)
ON = Tokimec
S1-8 OFF Alarm output setup
OFF = All alarms
ON = Only power failures
-
1
SSC board 1 (for Gyro 1): OFF

SSC board 2 (for Gyro 2): ON

Simrad GC80 Specifications

General

Type	Gyro Compass
Power Supply	24 V DC
Operating Temperature	-15°C to +55°C
Heading Resolution	0.01°
Heading Repeatability	±0.1°
IP Rating	IP66
Storage Temperature	+70°C
Interfaces	NMEA 0183
Humidity	95% non-condensing
