Simrad GC80/85 Double System Controller
66
988-12721-001

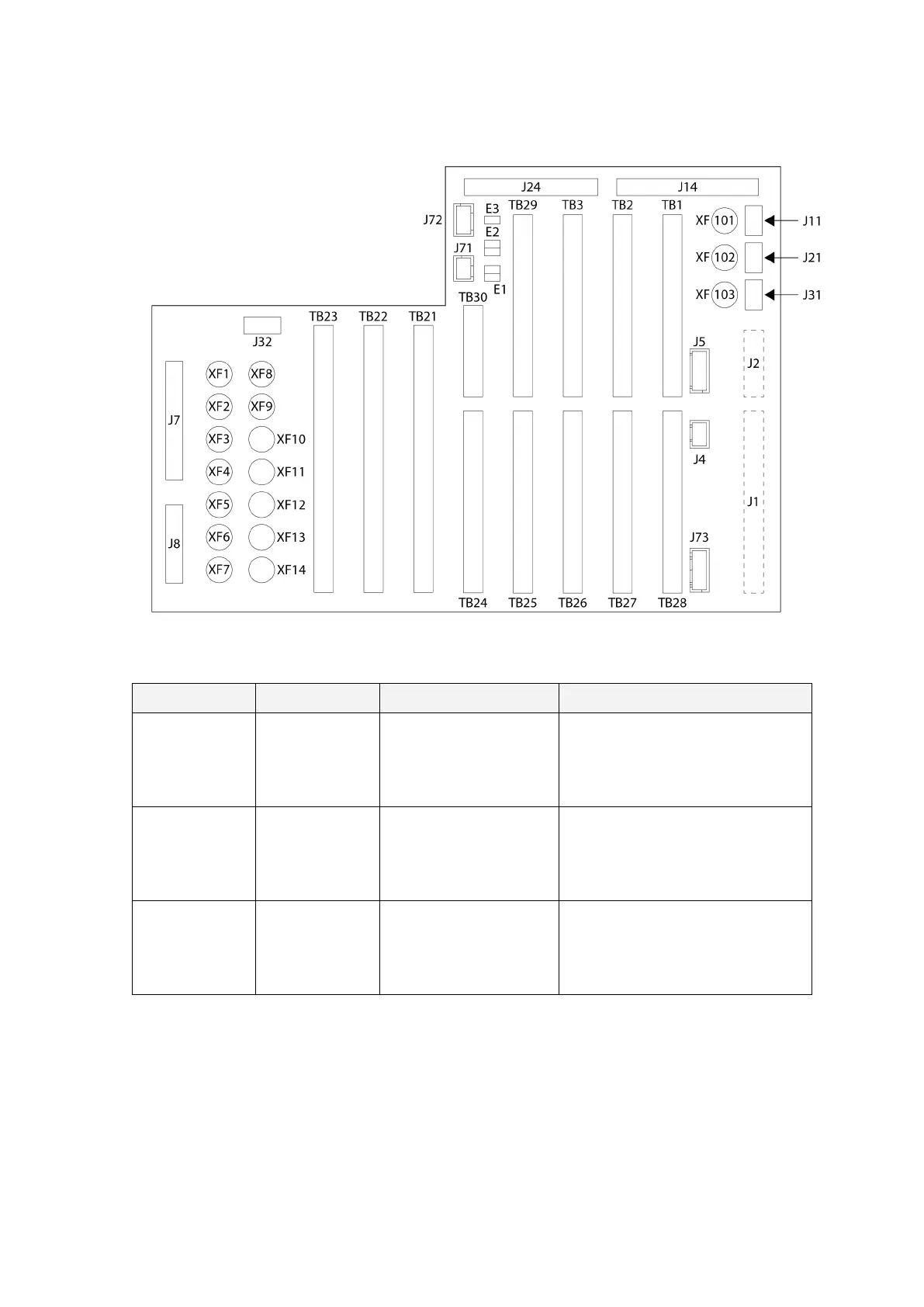

DGCT board
Jumper settings on DGCT board
JUMPER DEFAULT FUNCTION DESCRIPTION
E1
1-2 short
3-4 short
Connection of GPS to
Double control unit
Both jumpers open = two GPS signal
connected
Both jumpers shorted = one GPS
signal connected
E2
1-2 short
3-4 short
Connection of LOG to
Double control unit
(NMEA0183)
Both jumpers open = two LOG
signal connected (NMEA0183)
Both jumpers shorted = one LOG
signal connected (NMEA0183)
E3 short
Connection of LOG pulse
signals to Double control
unit
Jumper open = two LOG signal
connected (pulse signal)
Jumper shorted = one LOG signal
connected (pulse signal)

Simrad GC80 Specifications

General

Type	Gyro Compass
Power Supply	24 V DC
Operating Temperature	-15°C to +55°C
Heading Resolution	0.01°
Heading Repeatability	±0.1°
IP Rating	IP66
Storage Temperature	+70°C
Interfaces	NMEA 0183
Humidity	95% non-condensing
