19-5 GPS antenna
Installing an antenna
Install the SimNet compatible antenna via the AT40
SimNet converter or SimNet junctions. Refer to the
antenna installation manual

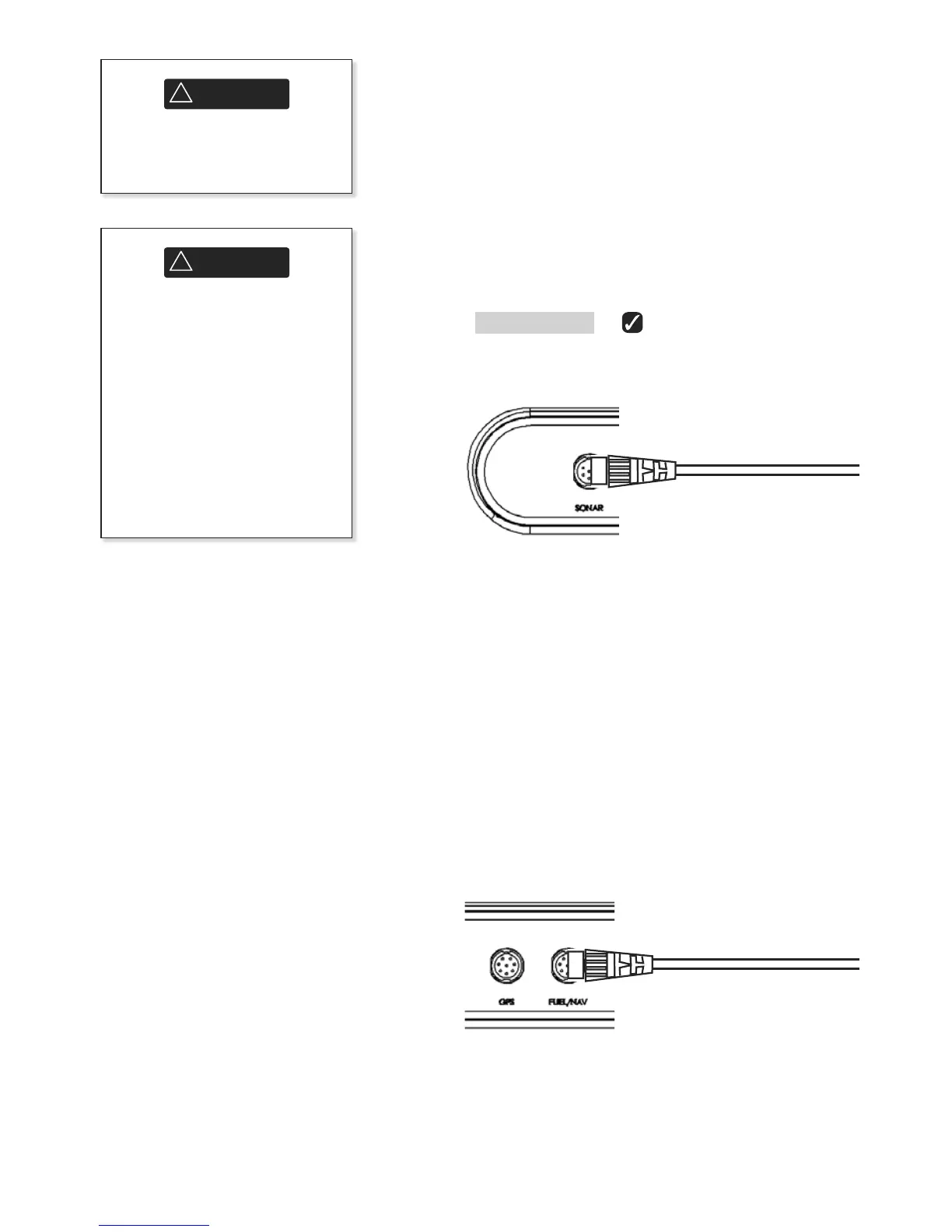

19-6 Installation: Echo transducer
Connect the transducer to the blue unit connector; tighten
the locking collar.
During setup
a) set •
Echosounder to
b) set up the echosounder options•
CAUTION
!
!
CAUTION
DANGER
WARNING
MOB will not work if the
unit does not have a GPS
x.
19-7 Installation: petrol sensors
Fit the optional petrol/gasoline fuel kit following the
instructions supplied with the kit.
Note:
SmartCraft engines have fuel ow sensors, therefore •
Simrad fuel sensors are not required as well.
For dual engines, t two kits.•
Wire the unit for auto power. •
During setup:
a) set the fuel data
Fuel sensor cable
White
Echo cable
Blue
CAUTION
!
!
CAUTION
DANGER
WARNING
Do not install plastic
through hull transducers
in solid wooden hulls.
Leakage through the hull
may result.
Do not install bronze
transducers in metal hulls.
This will cause electrolytic
corrosion that may result
in damage to the hull or
transducer.
