19-9 Installation: SmartCraft
If the boat has one or two SmartCraft capable Mercury
petrol/gasoline engines, connect the unit to the
SmartCraft engines with an optional SmartCraft gateway.
The display unit can display engine data and trim and
can control troll speed.
Note:
Fit a single gateway for single engines and a dual •
gateway for dual engines.
SmartCraft engines have fuel ow sensors, therefore •
Simrad fuel sensors are not required as well.
If the fuel tank does not have SmartCraft level •
sensors, wire for auto power.
During setup enter the SmartCraft setup data. For
information on installing, setting up and using SmartCraft,
see the SmartCraft Gateways Installation and Operation
Manual.

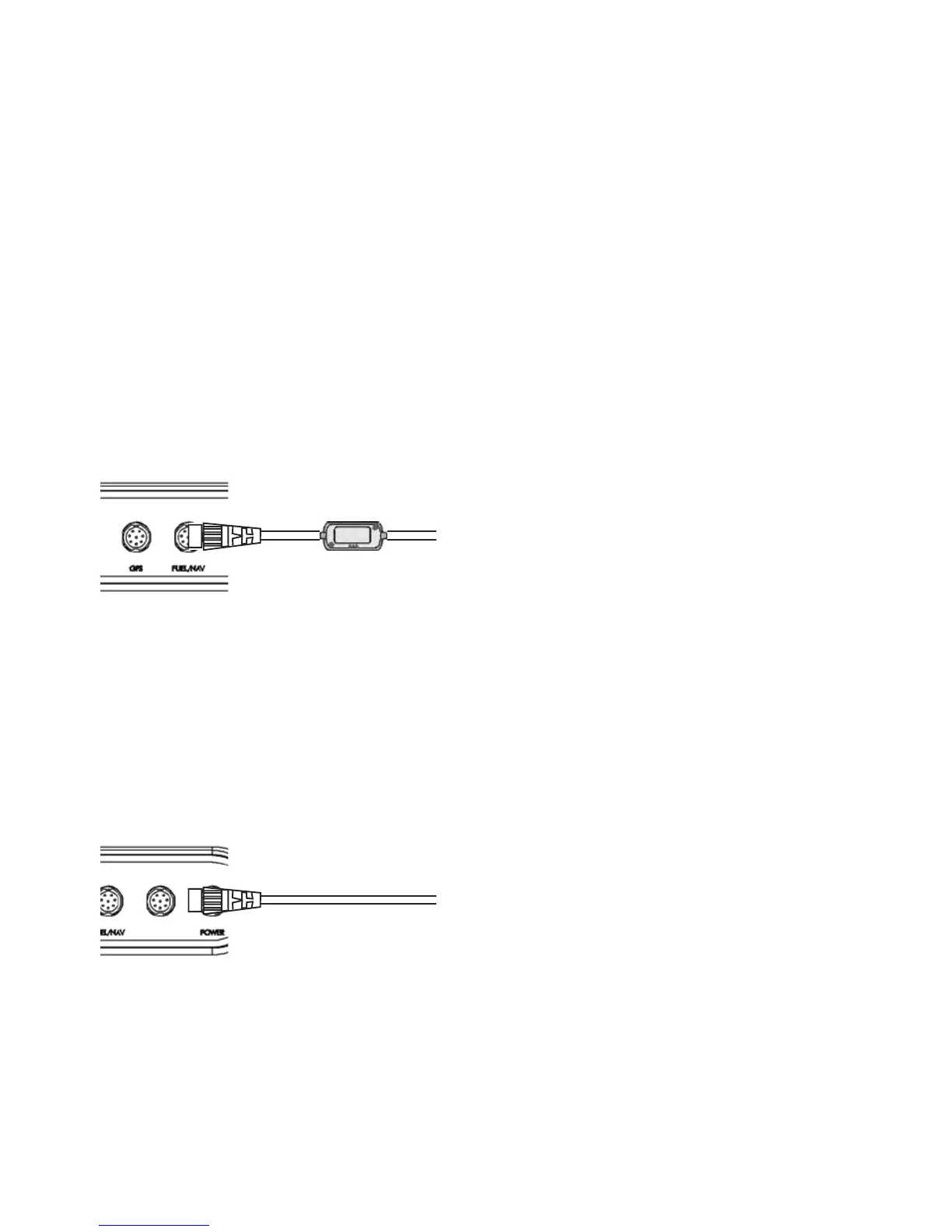

SmartCraft Gateway
White
Radar cable
RADAR
19-10 Installation: Radar
Install the Simrad radar as described in the Installation
Manual supplied with the radar.
Carefully read the important safety and warning
information and also the location and wiring guidelines
BEFORE installing the radar.
