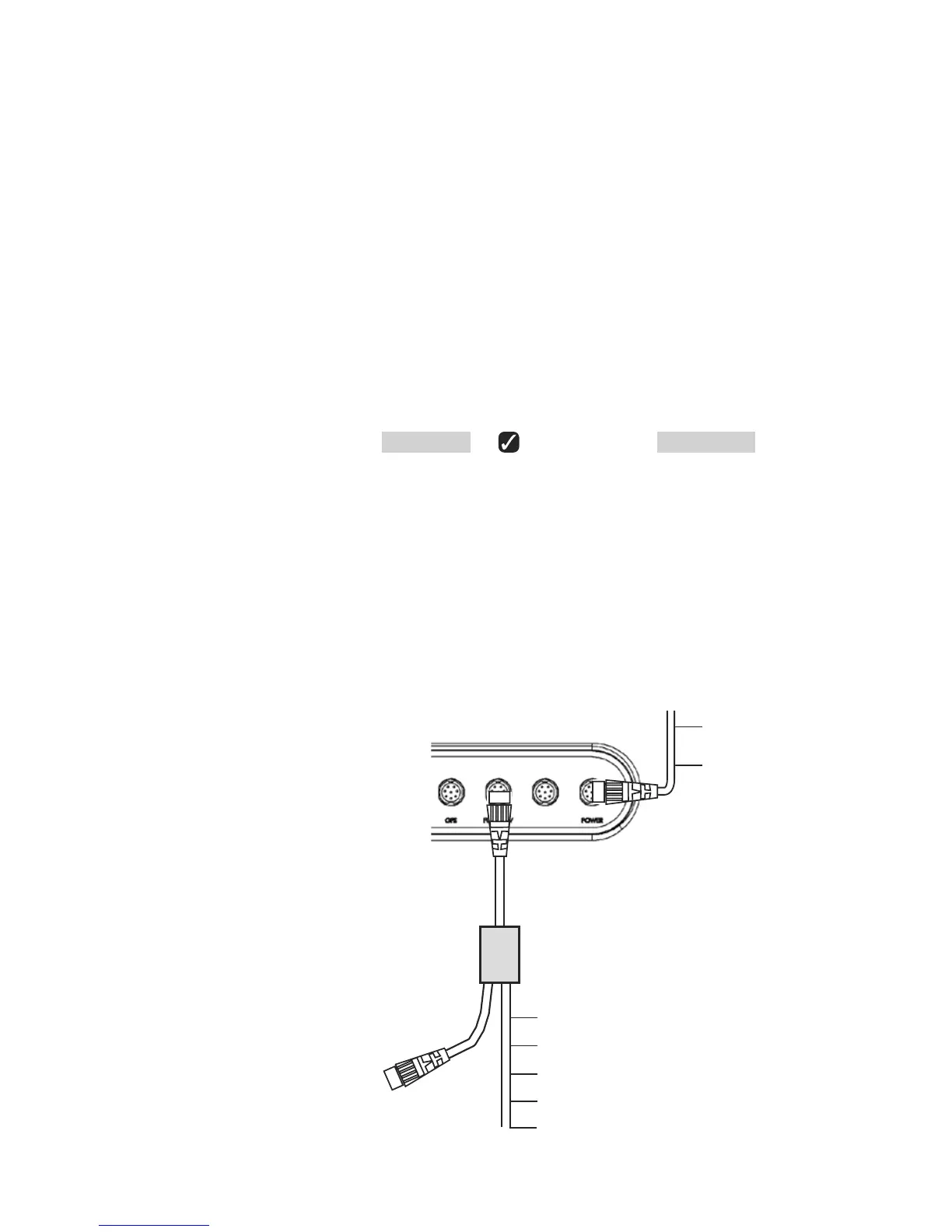

Simrad NX40/45 Installation and Operation Manual102
White NMEA out
Black NMEA ground
Power cable
Black
White
Fuel
TXDR/
Smartcraft
Yellow Not used
Green Not used
Red Not used
White + NMEA In
Black Ground
Accessory cable NMEA/Fuel/Smartcraft
(CB000156)
19-11 Installation: Other NMEA 0183
instruments
NMEA is an industry standard for interconnecting
instruments. The unit can:
Receive and display wind speed and direction from
an optional compatible wind instrument.
Receive and display depth, paddlewheel boat speed
and water temperature from an optional compatible
instrument.
Receive data from an optional compatible GPS
source.
Send GPS position and other navigation data to an
autopilot or other instrument. An autopilot requires
APB, APA and VTG sentences.
During setup to send NMEA data to other instruments, set
NMEA out to and specify the NMEA data to send.
19-12 Installation: AIS Receiver
An optional Simrad AIS receiver may be connected to
the unit. The receiver must be connected to the Fuel/Nav
port on the unit, Pin 3 (White) +NMEA in, Pin 1 (Black/
Shield) to ground (not -NMEA).
Note:
The power source used by the AIS receiver should
have a common ground to the AT40 SimNet
converter
