Simrad NX40/45 Installation and Operation Manual 9
1-4 Removing and replacing the display unit
If the NX40/45 is bracket mounted then it can easily be
removed for security.
Removing the display unit
Turn the NX40/45 off and put the cover on.•
Loosen the knobs on the mounting bracket and lift •
the unit off the bracket.
Unplug the connectors from the NX40/45; turn each •
locking collar anti-clockwise until you can pull the
plug out.
Store the NX40/45 in a dry clean place.•
Replacing the display unit
Plug the connectors into the back of the display •
unit:
Match the connector’s color to the socket color.•
Insert each connector and turn the locking collar •
clockwise until it is nger tight.
Nothing will be damaged if a cable is plugged into •
the wrong socket by mistake.
Hold the NX40/45 in place on the mounting bracket. •
Tilt it for best viewing, then hand tighten the knobs
on the mounting bracket. Remove the cover.

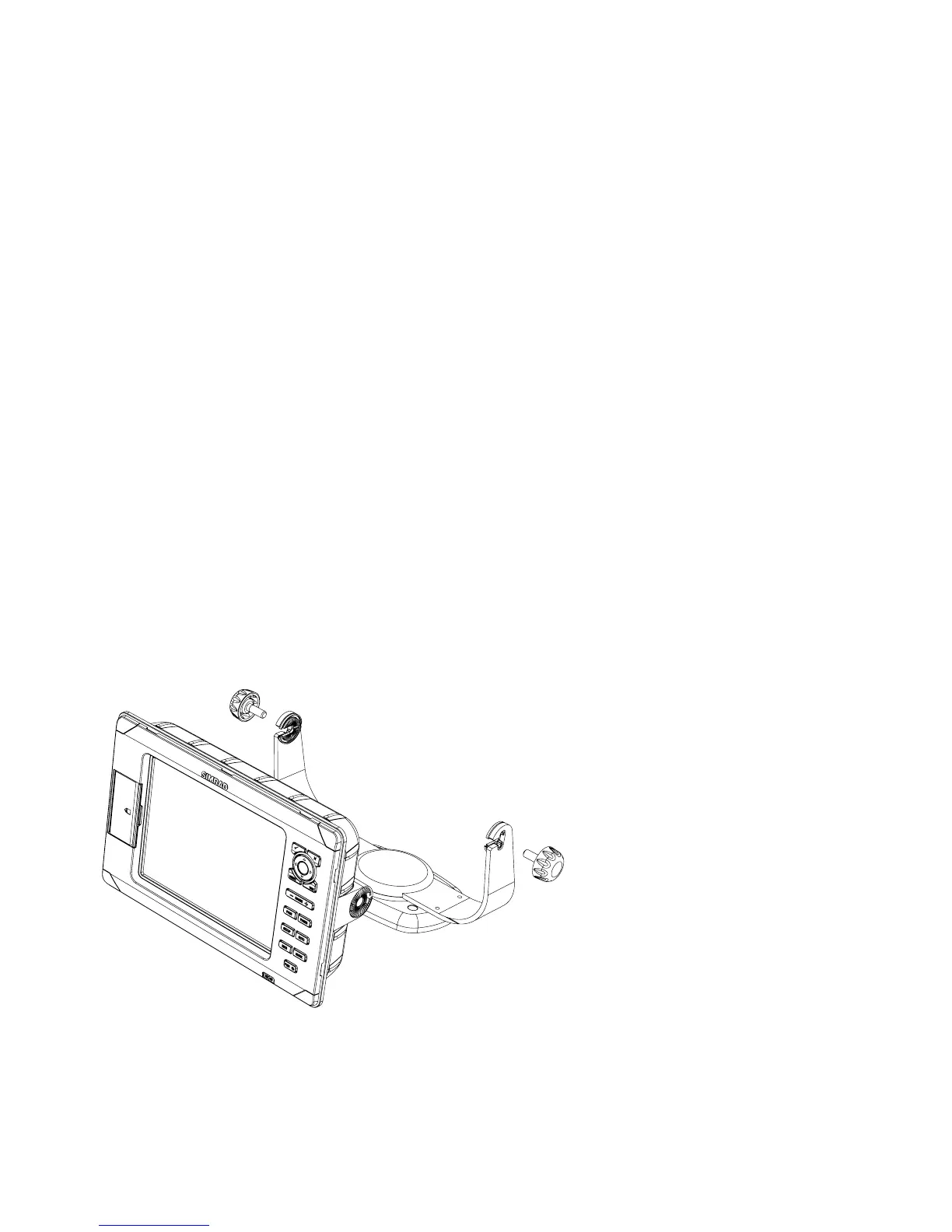

Mounting bracket
Knob
