Simrad NX40 User Manual

Simrad NX40/45 Installation and Operation Manual96

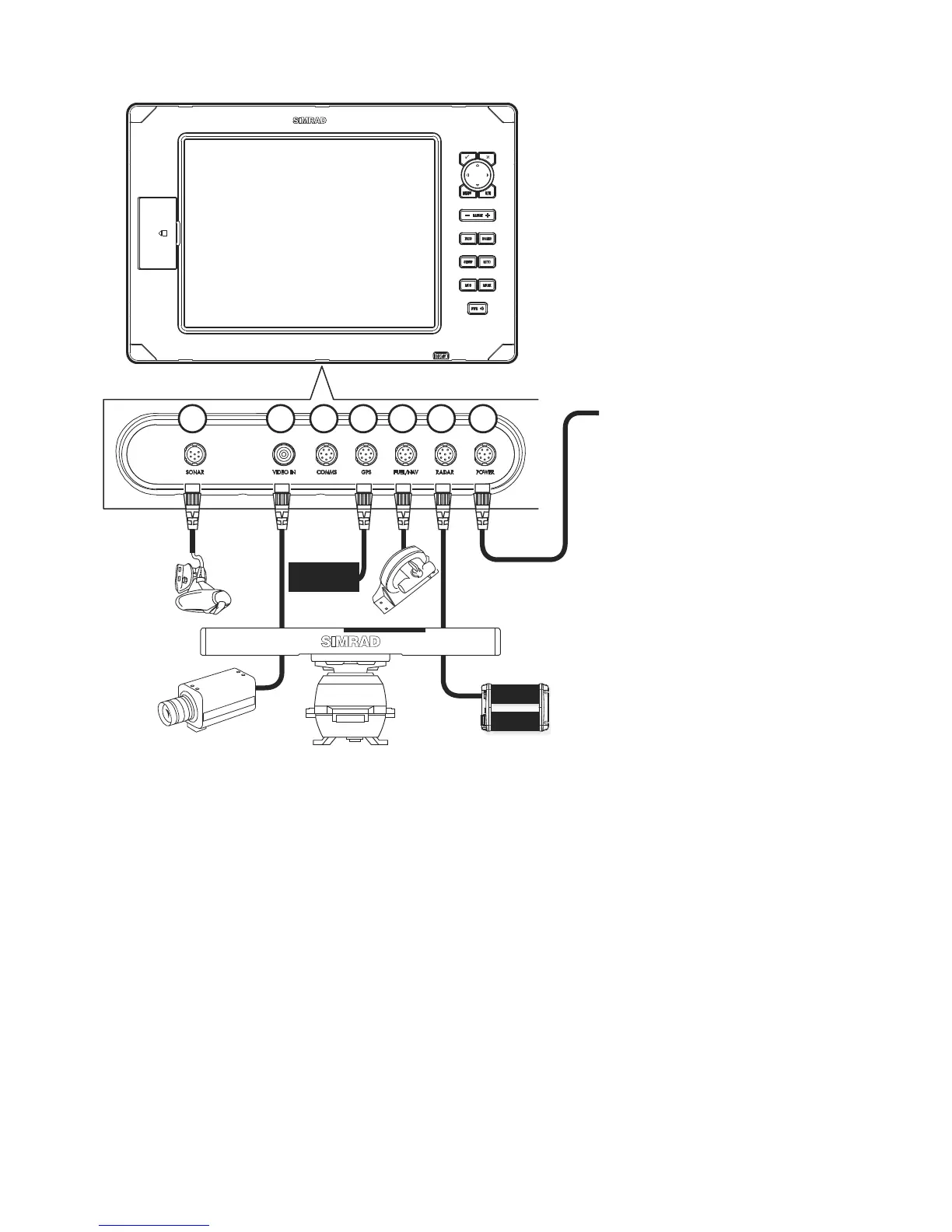

Connections
A SONAR: echosounder
Transducer
B Video in: Video Input
(Analogue composite
[NTSC-PAL])
C Comms: Not Used
D GPS: SimNet AT40
port
E Fuel/Nav: - Fuel
Transducer -
SmartCraft Gateway
F Radar: Simrad Radar
Processor
G Power cable
Power cable wiring
Wire Function
Red Positive power in, 10
to 35 V DC
Black Ground: power
negative,
NMEA ground
(Connect both black
wires to ground)
White NMEA out
Yellow Auto power - Connect
to red wire (positive
power in) to enable
Auto power No
Auto power - Leave
disconnected or
connected to Black
wire (ground)
Green External Alarm output
or light out, switches
to ground during
alarm condition, 200
mA maximum
Brown Not Used
GA B C D E F
AT40
Radar: For radar functions. A Simrad 2 kW, 4 kW or 6
kW radar system must be installed.
Other instruments: The unit can receive data from
other instruments and send data to other instruments.
Please consult your Simrad dealer for more information.
to SimNet
