The NX40/45 can show up to four windows at once.
Adding a window to the page
> Add window
Changing window size
> Split ratio >
>
Note: Some windows are xed in size.
Deleting a window from the page
until the target window has a red border >
> Delete window .
Exchanging two windows on the page
until the target window has a red border >
> Replace and select the second window.
Replacing a window on the page
until the target window has a red border >
> Replace and select a new window.
2-7-1 Multi window pages

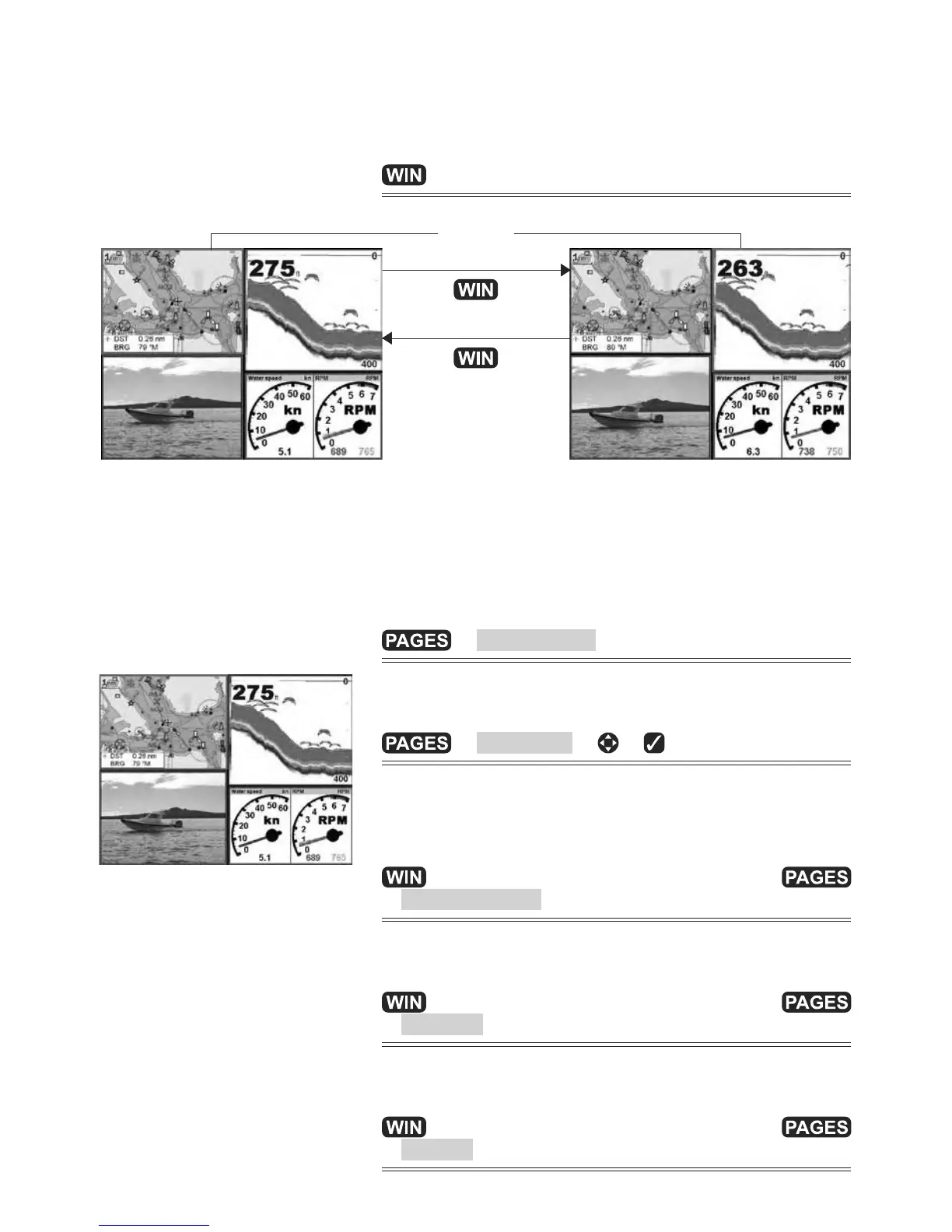

The active window is indicated by a red border.
To change the active window
Red border
Chart is active Echo is active
