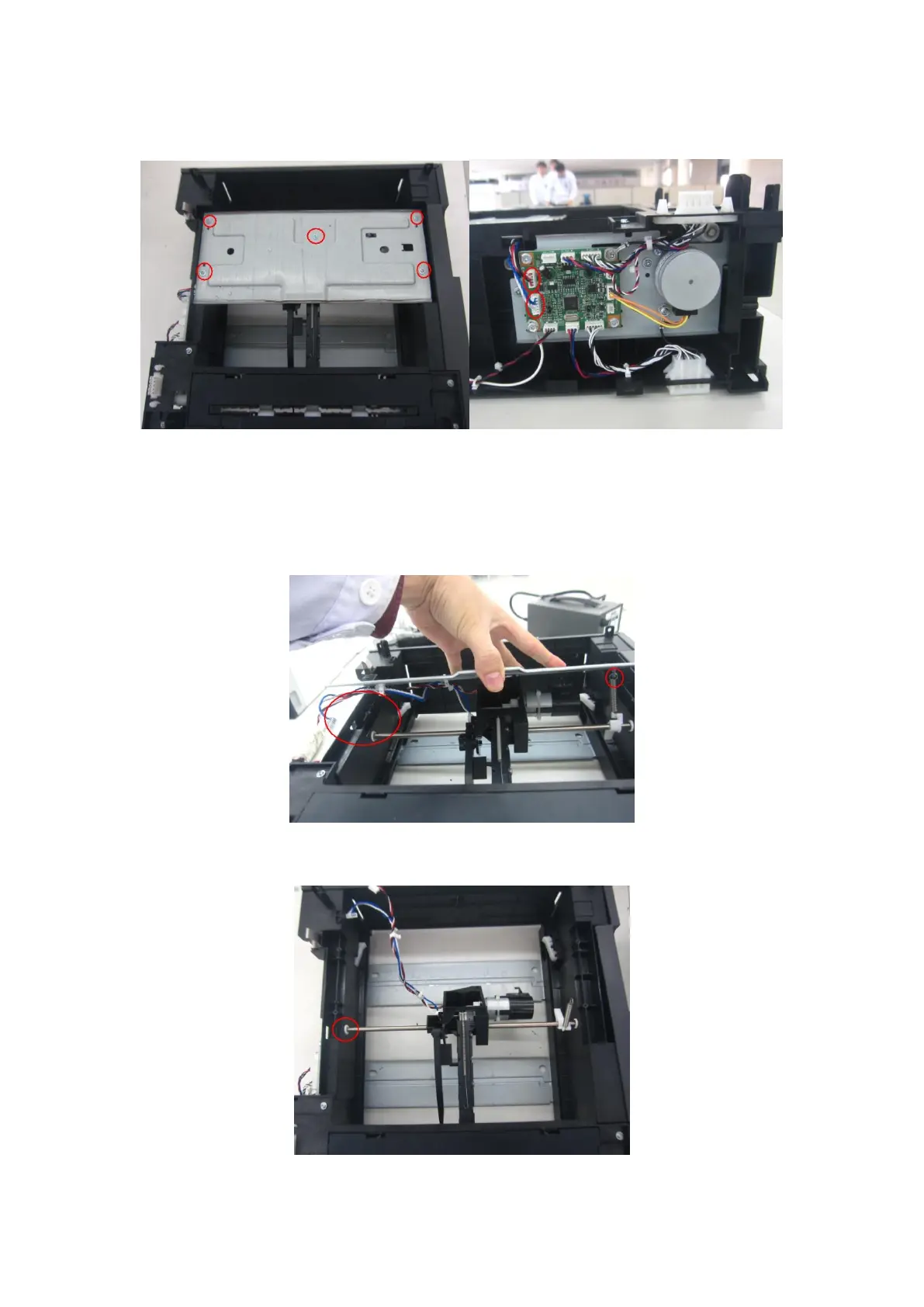

2, Separate the hook of the motor cover from the hole of Accufeed bracket, and remove the
harness hung on the bracket and then Accufeed bracket, too.. Be careful with the harness
and the springs when separating them.
3, Remove E-Ring on the left side of Acufeed shaft, and then separate Acufeed Assy.
