76

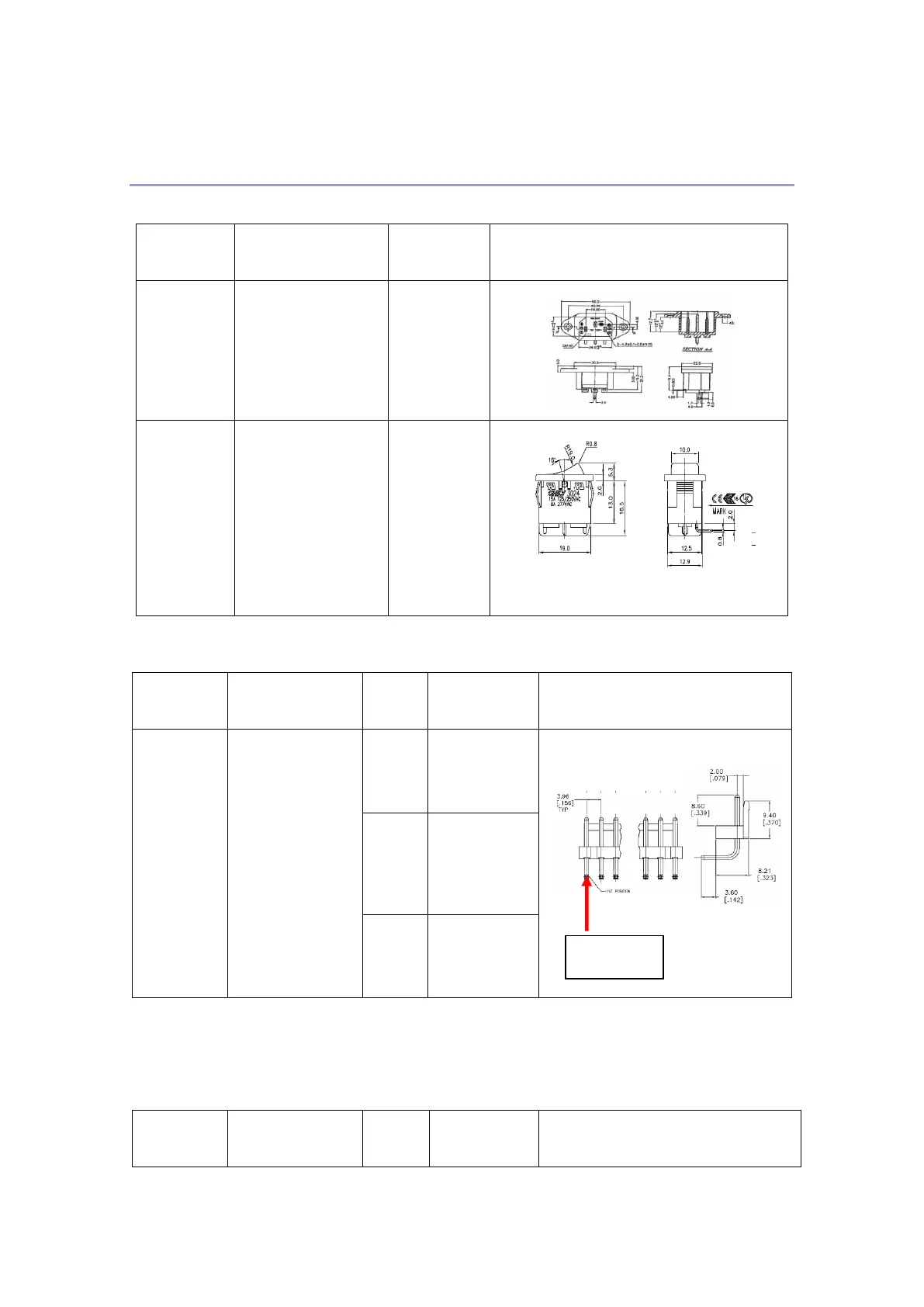

Pin Array
1. INLET + AC SW
Connector
No.
Connector Name
MFG.
Images
INLET
0707-1-C7D
Or
Equivalent
INALWAYS
AC SW
3024-
P2T7SBKBK
(SPST)
Or
Equivalent
CHILY
2. Heater Connector
Connector
No.
Connector
Name
Pin
No.
Signal
Name
Images
CN2
HEATER
CONNECTOR
1744056-3
(AMP)
Or
Equivalent
1
HEATER_L
2
(removed)
3
HEATER_N
* 2nd pin out of total 3 pins is provided space (for insullation clearance)
3. DC Connector
Connector
No.
Connector
Name
Pin
No.
Signal
Name
Images
1pole SW
Pin no.1
