77

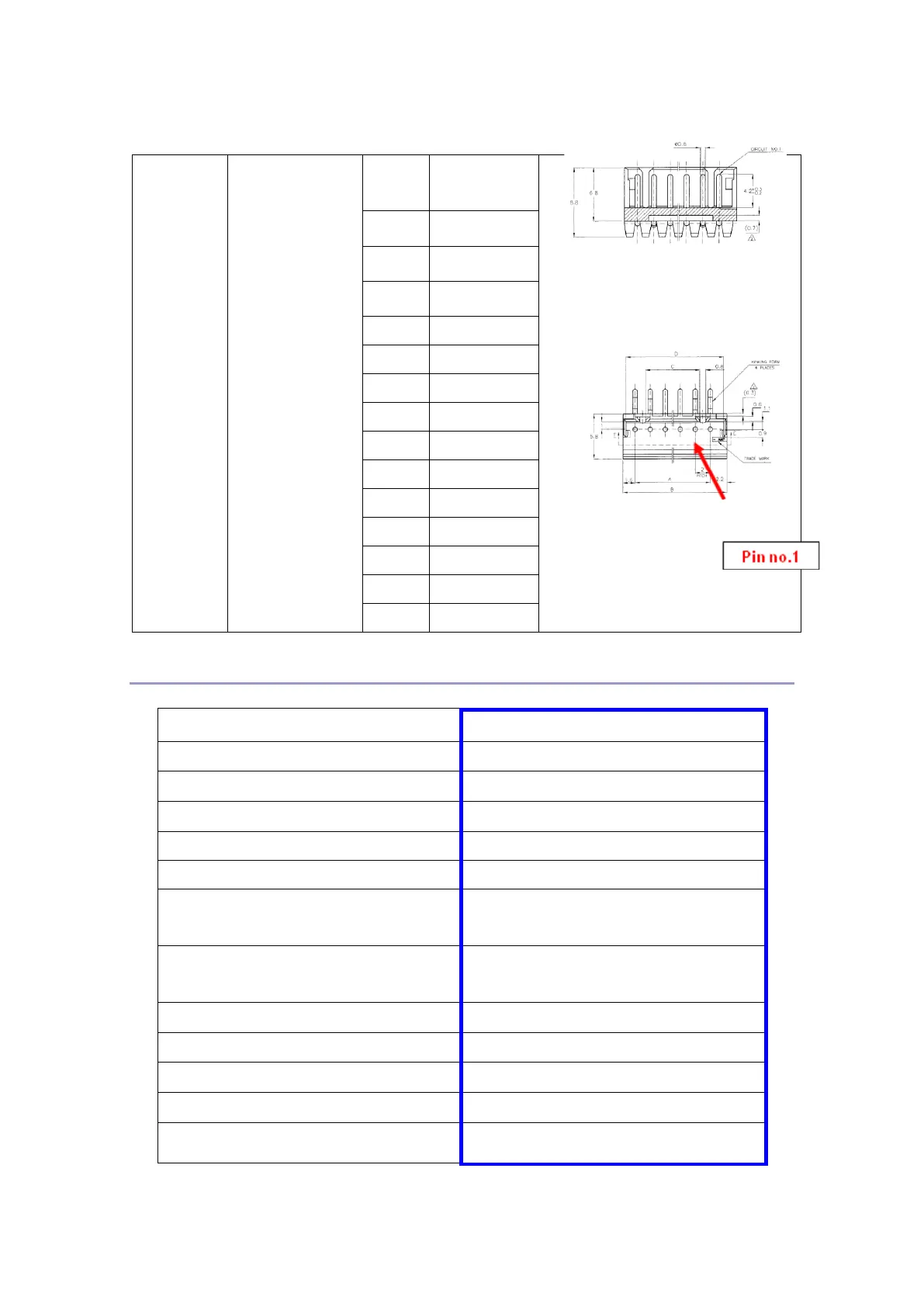

CN3
DC
CONNECTOR
1-292250-5
(AMP)
Or
Equivalent
1
TX
SENSING
2
TX EN
3
TX PWM
4
CHG PWM
5
DEV PWM
6
+24.5VS
7
+24.5V
8
+24.5V
9
GND
10
GND
11
+5V
12
GND
13
HEAT ON
14
Z.C
15
24V OFF
Specification
Parameters
Scope III (230V)
Input frequency(nominal)
47~63 Hz
Voltage band(nominal)
220 ~ 240Vac
Voltage(min-max)
198 ~ 264Vac
* Non-destructive Voltage
187 ~ 276Vac
Input current
AC + DC : ≤4.8A
Input power(Energy save mode)
Efficiency 40% or above, Energy save
mode
Inrush circuit
≤ 50A 1/4 cycle, after completely
discharged
EMC filter
Fix PCB
Protection
Fuse(T8A H 250V)
Heater On/Off Control
Only Zero Crossing, Turn-On
Power factor
0.5 or above, average load
Efficiency
75% or above, average load
