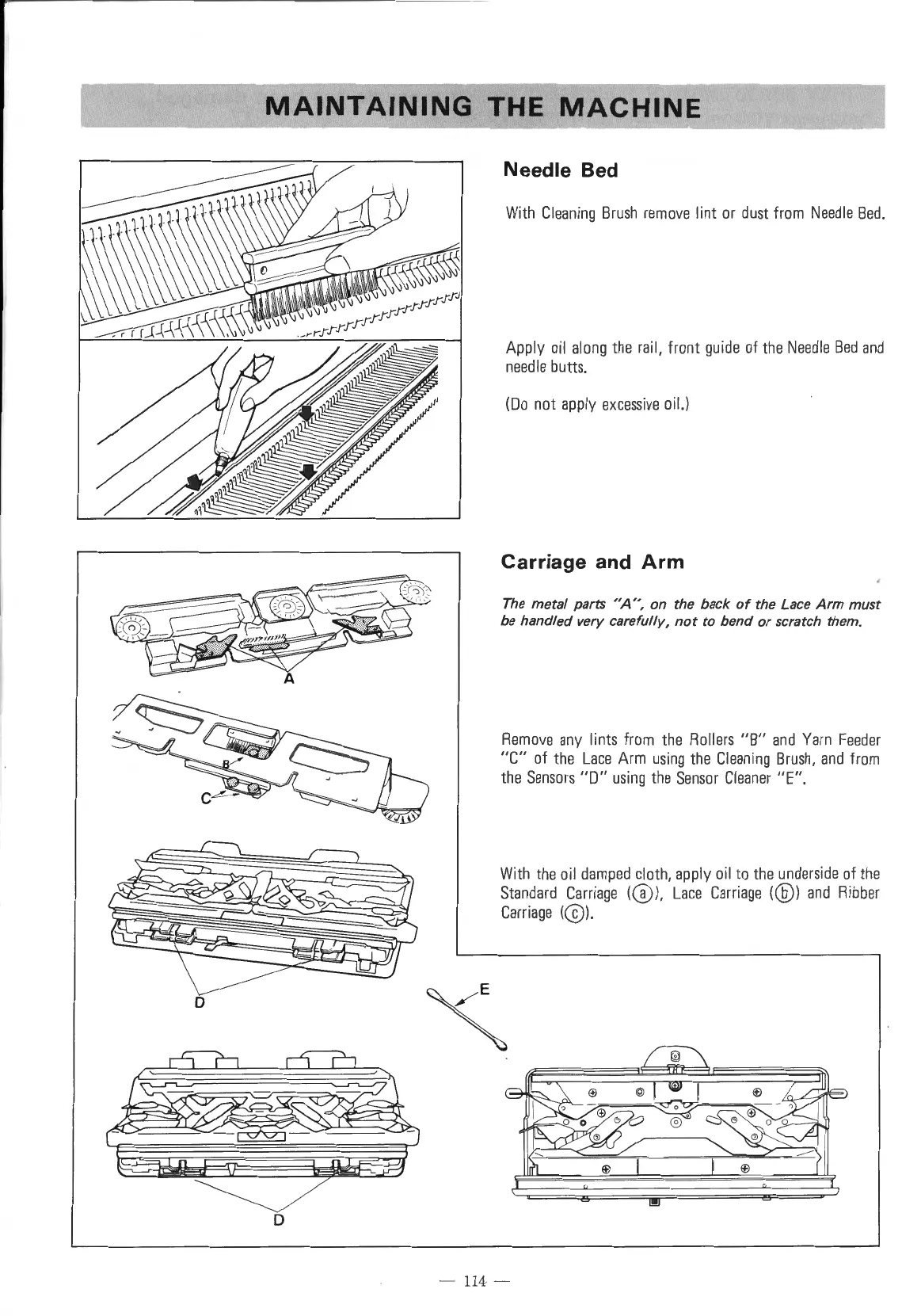

MAINTAINING THE MACHINE
Need le Bed
With Cleaning Brush remove lint or dust from Needle Bed.
Apply oil along the rail, front guide of the Needle Bed and
needle butts.
(Do not apply excessive oil.)
Carriage and Arm
'
Th e metal parts "A", on the back of the Lace Arm must
be hand led very carefully, not to bend or scratch them.
,~e~ove any lints from the Rollers "B" and Yarn Feeder
C of the Lace Arm using the Cleaning Brush and from
the Sensors "0" using the Sensor Cleaner 'T'. '
With the oil damped cloth, apply oil to the underside of the
Standard Carriage (@), Lace Carriage (@) and Ribber
Camage (@).
- 11 4 -
