Singer 560 - Ribber Arm

c B 0
®
~~
J
ro-PJ
~
®

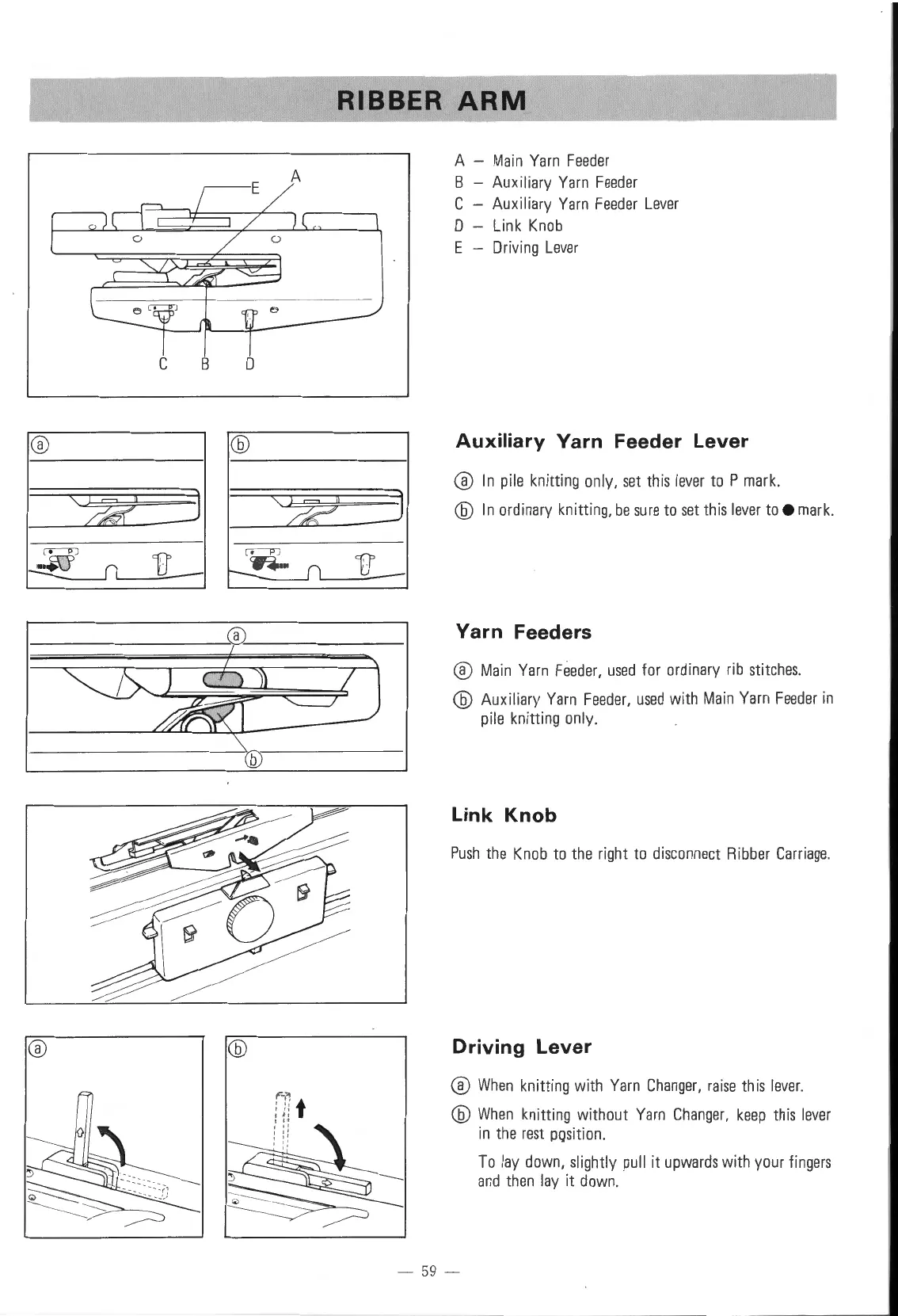

RIBBER ARM
J
A - Main Yarn Feeder
B - Auxiliary Yarn Feeder
C - Auxiliary Yarn Feeder Lever
0 - Link Knob
E - Driving Lever
Auxiliary Yarn Feeder Lever
® In pile knitting only, set this lever to P mark.
® In ordinary knitting, be sure to set this lever toe mark.
Yarn Feeders
® Main Yarn Feeder, used for ordinary rib stitches.
@ Auxiliary Yarn Feeder, used with Main Yarn Feeder in
pile knitting only .
Link Knob
Push the Knob to the right to disconnect Ribber Carriage.
Driving Lever
® When knitting with Yarn Changer, raise this lever.
® When knitting without Yarn Changer, keep this lever
in the rest position.
To lay down, slightly pull it upwards with your fingers
and then lay it down.
- 59 -
