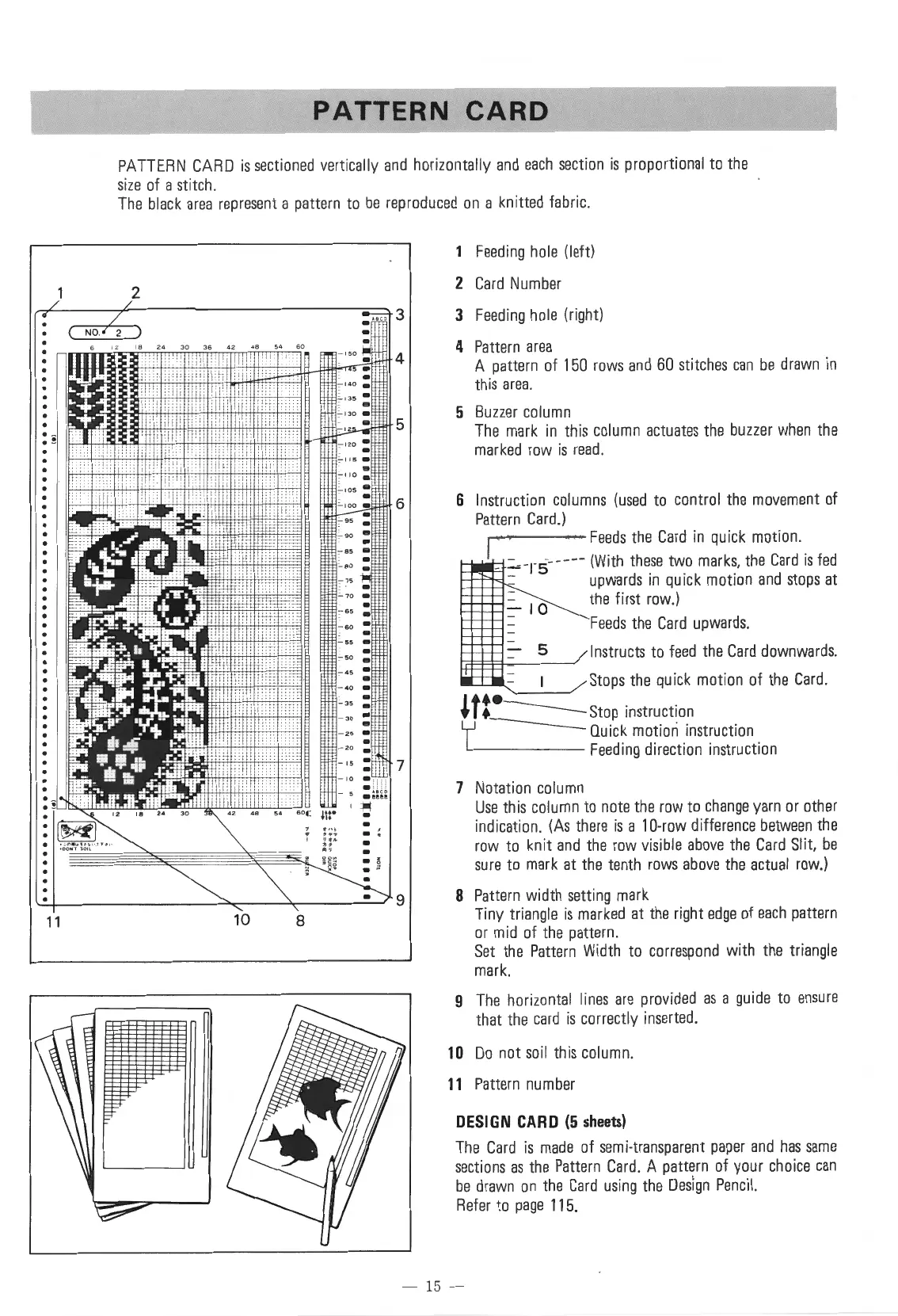

PATTERN CARD
PATTERN CARD is sectioned vertically and horizontally and each section is proportional to the
si ze of a stitch.
The black area represent a pattern to be reproduced on a knitted fabric.
) }
~ / ~ 3
o l NO .o 2 ~
• 6 oz ' 8 2 4 60 ;I
IIIII~ :• ',, ;; t; ' 'I,, ' ; ,_, j!
l t~tt
1111
H~I-H_ .~~~ i---:t :-:-:,~! ': r >~; ;!t:-:T, ,~+it::-:t: k ~' :-d : l:l-1$-~ :
~ • ~Pl i!
1
! : :~:~ •
I"" ii :: . i : ! ; ; ' j';- 135 •
• ·~ =~ ; ; :
'I ',i ' 1 ~· ..
l j-:....,; ILH J '-t> :, ~ , ~ ~ lo!--J.!. ~ i ; "- , J;.J.,-:.Ji+-:. , +~ . ~ +'- ! ~+' , ~.;_;,j 1- 12 0 :
" .
; ~ : ; ! : i I: i ; 110 :
; Iii I ! i I ; 1:- . 1 05 ••
~!! L : q i: ·: !l:
1
:
i :
4
5
6
7
Feeding hole (left)
2 Card Number
3 Feeding hole (right)
4 Pattern area
A pattern of 150 rows and 60 stitches can be drawn in
this area.
5 Buzzer column
The mark in this column actuates the buzzer when the
marked row is read.
6 Instruction columns (used to control the movement of
Pattern Card.)
.-----Feeds the Card in quick motion .
_ ~T
5
----- (With these two marks, the Card is fed
W-.l-Ll" ""'-= upwards in quick motion and stops at
the first row.)
Feeds the Card upwards.
Instructs to feed the Card downwards.
Stops the quick motion of the Card.
!f!•--Stop instruction
I --Quick motion instruction
Feeding direction instruction
7 Notation column
Use this column to note the row to change yarn or other
indication. (As there is a 1 0-row difference between the
row to knit and the row visible above the Card Slit, be
sure to mark at the tenth rows above the actual row.)
8 Pattern width setting mark
Tiny triangle is marked at the right edge of each pattern
or mid of the pattern.
Set the Pattern Width to correspond with the triangle
mark.
9 The horizontal lines are provided as a guide to ensure
that the card is correctly inserted.
10 Do not soil this column.
11 Pattern number
DESIGN CARD (5 sheets)
The Card is made of semi-transparent paper and has same
sections as the Pattern Card. A pattern of your choice can
be drawn on the Card using the Design Pencil.
Refer to page 115.
- 15 -
