Singer 560 - Operation Table Summary

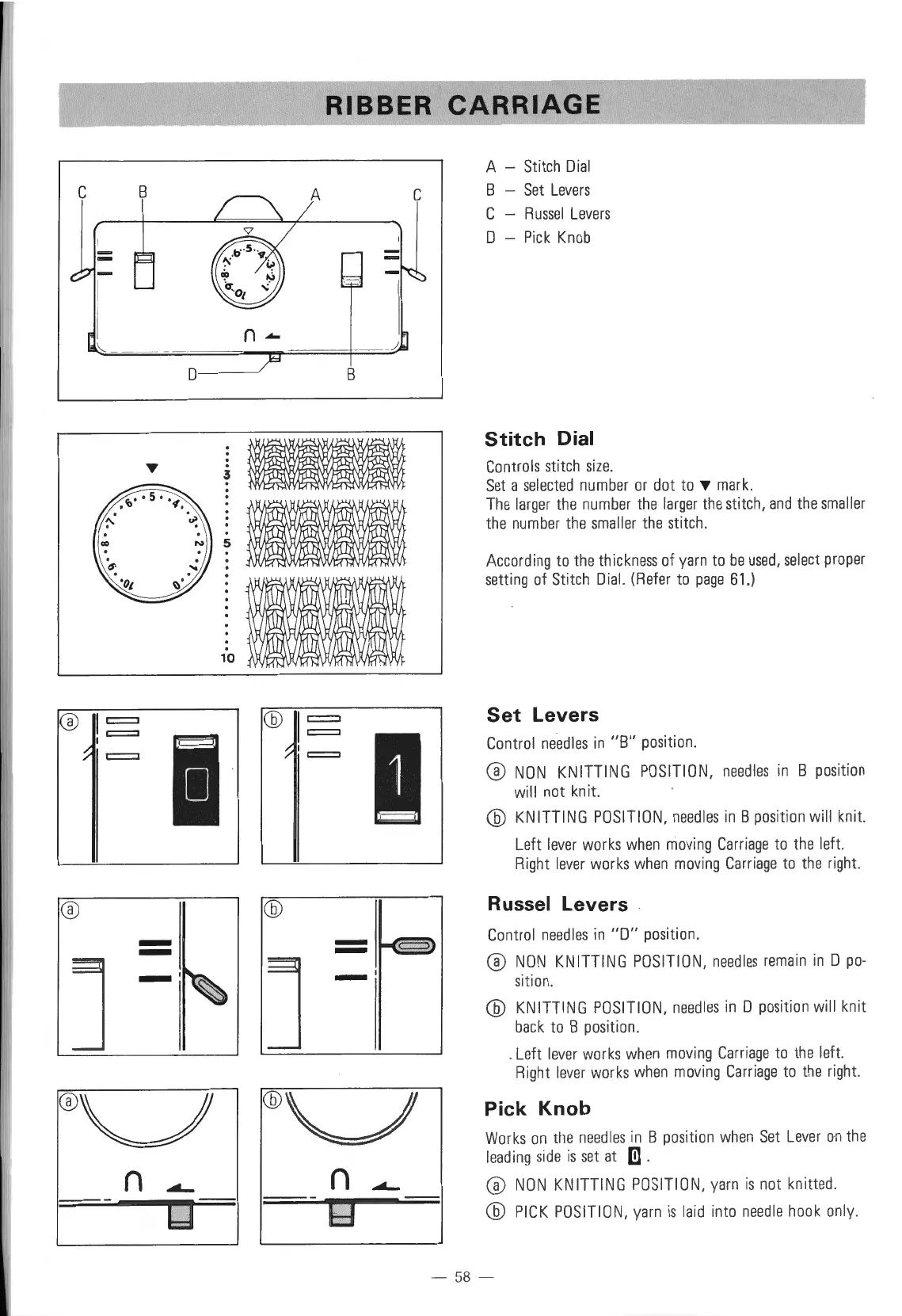

RIBBER CARRIAGE
c
B
A
c
-
-
n-
0----'
B
@ 1=
,=
=
I
@I~
~·=
®
-
-
-
-
J
J
_,
n
n
bd
g
A - Stitch Dial
B - Set Levers
C - Russel Levers
D - Pick Knob
Stitch Dial
Controls stitch size .
Set a selected number or dot to .,. mark .
The larger the number the larger the stitch, and the smaller
the number the smaller the stitch.
According to the thickness of yarn to be used, select proper
setting of Stitch Dial. (Refer to page 61.)
Set Levers
Control needles in "B" position.
@ NON KNITTING POSITION, needles in B position
will not knit.
@ KNITTING POSITION, needles in B position will knit.
Left
lever works when moving Carriage to the left.
Right lever works when moving Carriage to the right.
Russel Levers
Control needles in "0" position.
@ NON KNITTING POSITION, needles remain in D po-
sition.
@ KNITTING POSITION, needles in D position will knit
back to B position .
. Left
lever works when moving Carriage to the left.
Right lever works when moving Carriage to the right.
Pick Knob
Works on the needles in B position when Set Lever on the
leading side is set at [!] .
@ NON KNITTING POSITION, yarn is not knitted.
@ PICK POSITION, yarn is laid into needle hook only .
- 58 -
