Singer 560 - Automatic Yarn Changer and Accessories

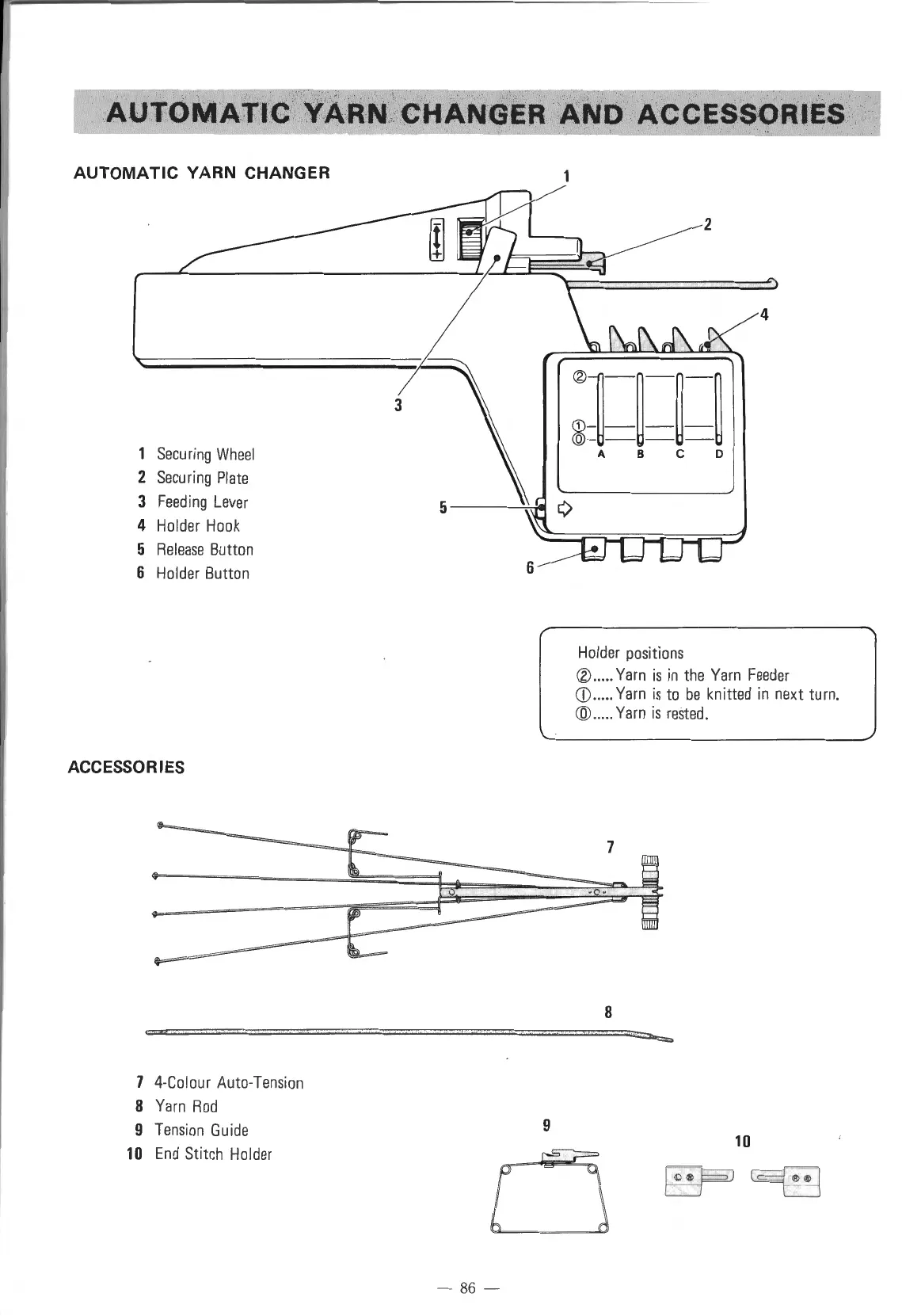

AUTOMATIC YARN CHANGER AND ACCESSORIES
AUTOMATIC YARN CHANGER
1
Securing Wheel
2
Securing Plate
3
Feeding Lever
4
Holder Hook
5
Release Button
6 Holder Button
ACCESSORIES
7 4-Colour Auto-Tension
8 Yarn Rod
9 Tension Guide
10 End Stitch Holder
4
3
®]-~-~-~
~= ==~==~=~
A B C D
Holder positions
® ..... Yarn is in the Yarn Feeder
CD ..... Yarn is to be knitted in next turn.
@ ..... Yarn is rested.
7
8
9
10
- 86 -
