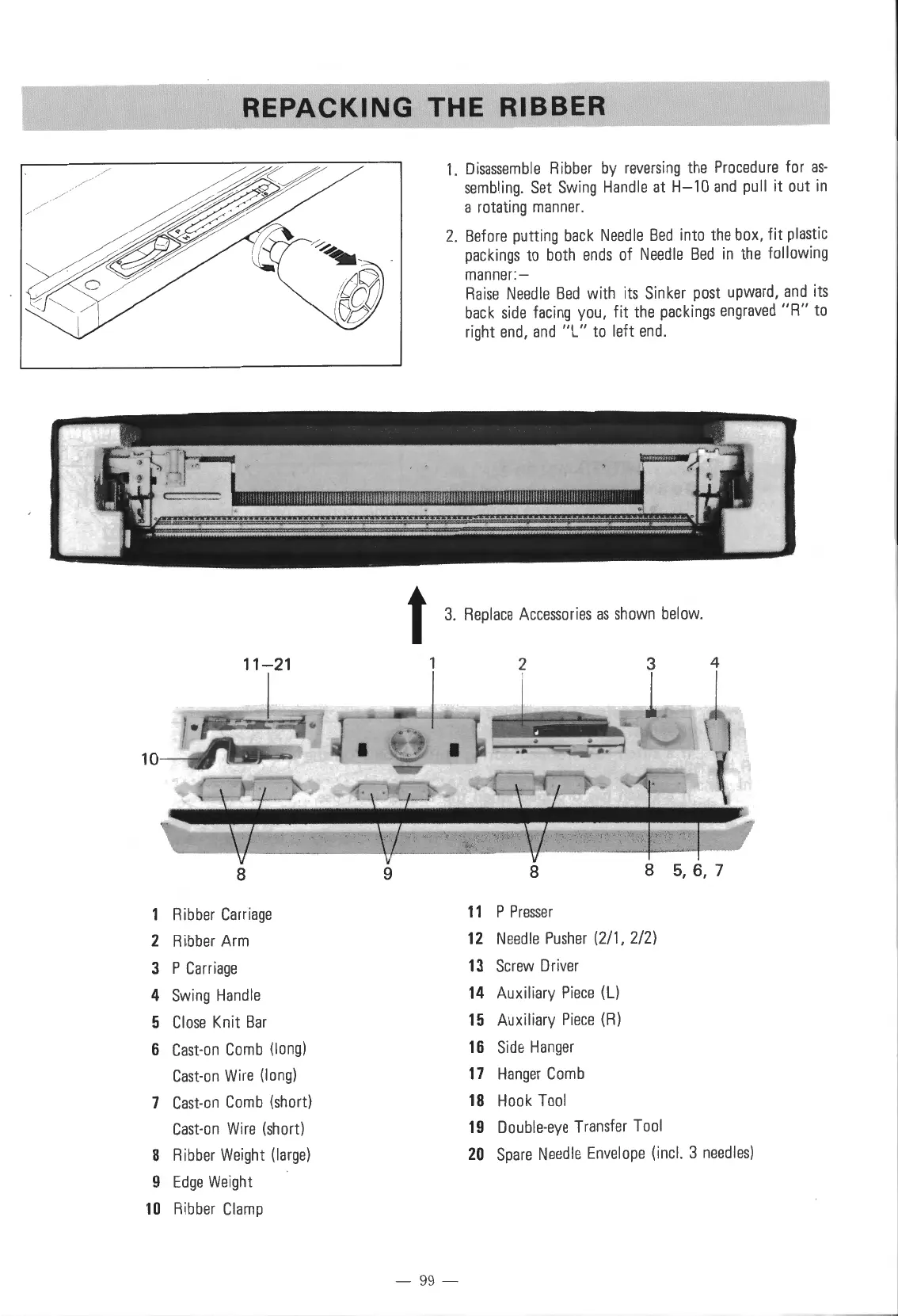

REPACKING THE RIBBER
8
9
Ribber Carriage
Ribber Arm
P Carriage
Swing Handle
Close Knit Bar
Cast-on Comb (long)
Cast - on Wire (long)
Cast-on Comb (short)
Cast-on Wire (short)
Ribber Weight (large)
Edge Weight
Ribber Clamp
1. Disassemble Ribber by reversing the Procedure for as-
sembling. Set Swing Handle at H-10 and pull it out in
a rotating manner .
2. Before putting back Needle Bed into the box, fit plastic
packings to both ends of Needle Bed in the following
manner :-
Raise Needle Bed with its Sinker post upward, and its
back side facing you, fit the packings engraved "R" to
right end, and "L" to left end.
t 3. Replace Accessories as shown below.
8
8
5, 6, 7
11
P Presser
12
Needle Pusher (2/1, 2/2)
13
Screw Driver
14
Auxiliary Piece (L)
15
Auxiliary Piece (R)
16
Side Hanger
17
Hanger Comb
18
Hook Tool
19
Double-eye Transfer Tool
20
Spare Needle Envelope (incl. 3 needles)
